SRS Z2 (5901467) - Ferris SRS Z2 Series 61" Stand-On Mower, 28hp Briggs & Stratton Engine & PTO Group Parts Diagram

SRS Z2 Series 61" Stand-On Mower, 28hp Briggs & Stratton

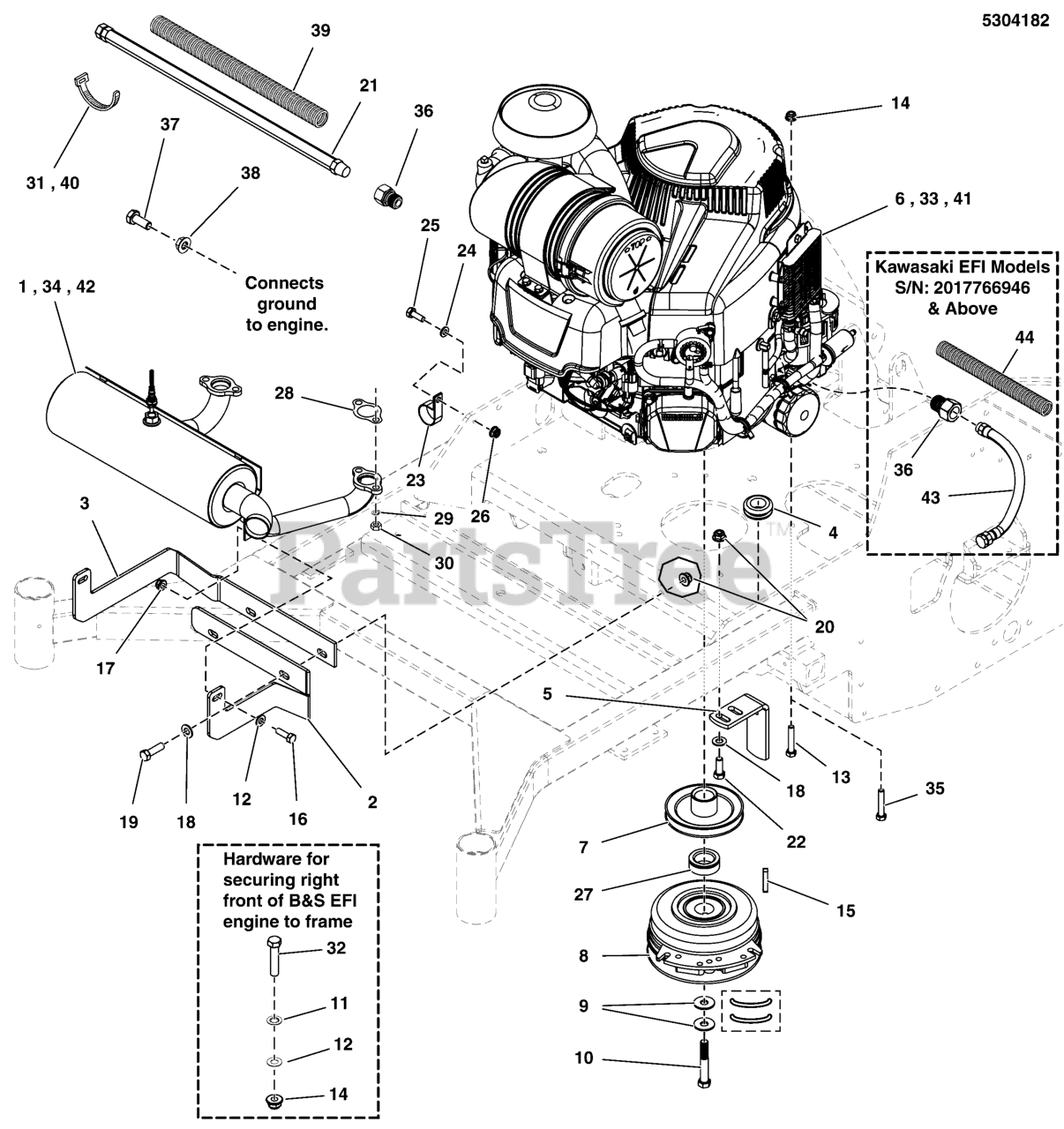

Engine & PTO Group Parts Diagram

  • Title

1

Ferris 5104355

MUFFLER, 26/28, B&S VANG, EFI TWR/WALK
(Superseded to 5104355FS)

Note: (Briggs & Stratton EFI Models)

$310.99

$

Usually ships in 2-12 days

0

2

Ferris 5414167A

PLATE, EXHAUST BRACKET LH - BLK
(Superseded to 5414167AAFS)

$26.99

$

Usually ships in 2-12 days

0

3

Ferris 5414168A

PLATE, EXHAUST BRACKET RH - BLK
(Superseded to 5414168AAFS)

$26.99

$

Usually ships in 2-12 days

0

4

Ferris 5103944

GROMMET, 7/8"ID, 1/4" THICK STK
(Superseded to 5103944YP)

$2.99

$

Usually ships in 2-12 days

0

5

Ferris 5404967A

ANCHOR, CLUTCH - BLK
(Superseded to 5404967AYP)

$32.99

$

Usually ships in 2-12 days

0

6

ENGINE, B&S, EFI (49E877-0004-G1)

Note: (Briggs & Stratton EFI Models)

$

$

Not available

7

Ferris 5104553

PULLEY, CRANKSHAFT, 1.1255 ID X 4.50 OD
(Superseded to 5104553FS)

$53.99

$

In Stock, only 1 left!

0

8

Ferris 5105090

CLUTCH WARNER 200 FT-LB 1.13 X 6.323
(Superseded to 5105090YP)

$456.99

$

In Stock, only 3 left!

0

9

Ferris 5025585

BELLEVILLE WASHER, 1.1875 X .442 X .098
(Superseded to 5025585YP)

$4.49

$

In Stock, only 4 left!

0

10

Ferris 5102865

BOLT, CRANKSHAFT, 7/16 X 2-3/4, PATCH, CZ
(Superseded to 5102865YP)

$5.49

$

In Stock, only 2 left!

0

11

Ferris 5025188

WASHER, 5/16" Internal Tooth Lock
(Superseded to 5025188SM)

Note: (Briggs & Stratton EFI Models)

$3.99

$

In Stock, only 1 left!

0

12

Ferris 5025155

WASHER, 5/16" SAE

Note: (Qty: 6 - Briggs & Stratton EFI Models)

$

$

Currently unavailable

13

Ferris 5025025X14

BOLT, 5/16-24 X 1-3/4, GD8, PHOS
(Superseded to 5025025X14YP)

Note: (Briggs & Stratton EFI Models)

$4.49

$

Usually ships in 2-12 days

0

14

Ferris 5025616

NUT, 5/16-24, TOP LOCK FLANGE, GD8 PHOS
(Superseded to 5025616YP)

Note: (Briggs & Stratton EFI Models)

$3.99

$

In Stock, only 2 left!

0

15

Ferris 5050407X10

KEY, 1/4" SQ. X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 4 left!

0

16

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

17

Ferris 80003675

NUT, 5/16-1/8, HEX, CNTR LK, ZINC PHOS/OIL
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

18

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

19

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

20

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

21

Ferris 5102781

HOSE, OIL DRAIN
(Superseded to 5102781FS)

Note: Kawasaki EFI Models - S/N: 2017766945 & Below; All Other Models - S/N: All)

$28.99

$

Usually ships in 2-12 days

0

22

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 5

0

23

Ferris 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

24

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

25

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

26

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

27

Ferris 5042928

SPACER, 1.13 X 1.75 X .63
(Superseded to 5042928FS)

$12.99

$

Usually ships in 2-12 days

0

28

Ferris 273485

GASKET, EXHAUST
(Superseded to 690970)

Note: (Briggs & Stratton EFI Models)

$4.99

$

In Stock, Qty 20+

0

29

Ferris 5023217

WASHER, Light Lock, 5/16
(Superseded to 5023217SM)

Note: (Briggs & Stratton EFI Models)

$3.49

$

Usually ships in 2-12 days

0

30

Ferris 5025536

NUT, HEX, M8-1.25, CZ, GD 8.8
(Superseded to 5025536YP)

Note: (Briggs & Stratton EFI Models)

$3.49

$

Usually ships in 2-12 days

0

31

Ferris 5101492

TIE,SELF-LOCKING, 24"
(Superseded to 5101492YP)

$3.49

$

Usually ships in 2-12 days

0

32

Ferris 5025025X12

BOLT, 5/16-24 X 1-1/2, GD8, PHOS
(Superseded to 5025025X12YP)

Note: (Briggs & Stratton EFI Models)

$3.99

$

Usually ships in 2-12 days

0

33

ENGINE, KAWASAKI (FX801V-AS18-R)

Note: (Kawasaki Carbureted Models)

$

$

Not available

34

Ferris 5104730

MUFFLER, 26, KAWASAKI, 801 BLOCK, SRS Z2
(Superseded to 5104730FS)

Note: (Kawasaki Carbureted Models)

$278.99

$

Usually ships in 2-12 days

0

35

Ferris 5025532

BOLT, HEX FLG, SER, GD5 3/8-16 X 1-1/4" PACH CZ
(Superseded to 84003591)

Note: (Kawasaki Models)

$3.49

$

In Stock, only 4 left!

0

36

Ferris 5022234

ADAPTER, Oil Drain
(Superseded to 5022234SM)

Note: (Kawasaki Models)

$15.99

$

Usually ships in 2-12 days

0

37

Ferris 5025249

BOLT, M8-1.25 X 20 MM GD 8.8
(Superseded to 5025249YP)

Note: (Kawasaki Models)

$2.99

$

Usually ships in 2-12 days

0

38

Ferris 5025355

NUT, M8-1.25 Hex Serrated Flange
(Superseded to 5025355SM)

Note: (Kawasaki Models)

$3.49

$

Usually ships in 2-12 days

0

39

Ferris 5050862X12

WIRE LOOM, 3/4 ID X 12 IN
(Superseded to 5050862X12SM)

Note: Kawasaki EFI Models - S/N: 2017766945 & Below; All Other Models - S/N: All)

$4.49

$

Usually ships in 2-12 days

0

40

Ferris 5021030

TIE, SELF-LOCKING, 6"
(Superseded to 5021030SM)

$2.99

$

In Stock, only 3 left!

0

41

ENGINE, KAWASAKI, EFI (FX730V-AS01-R)

Note: (Kawasaki EFI Models)

$

$

Not available

42

Ferris 5104163

MUFFLER, HORIZONTAL, KAWASAKI
(Superseded to 5104163FS)

Note: (Kawasaki EFI Models)

$307.99

$

Usually ships in 2-12 days

0

43

Ferris 1726498

HOSE-OIL DRAIN .375ID 16.5L
(Superseded to 1726498SM)

Note: Kawasaki EFI Models - S/N: 2017766946 & Above)(*See Footnote)

$26.99

$

Usually ships in 2-12 days

0

44

Ferris 5050862X9

WIRE LOOM, 3/4 ID X 9 IN

Note: Kawasaki EFI Models - S/N: 2017766946 & Above)

$

$

Currently unavailable
