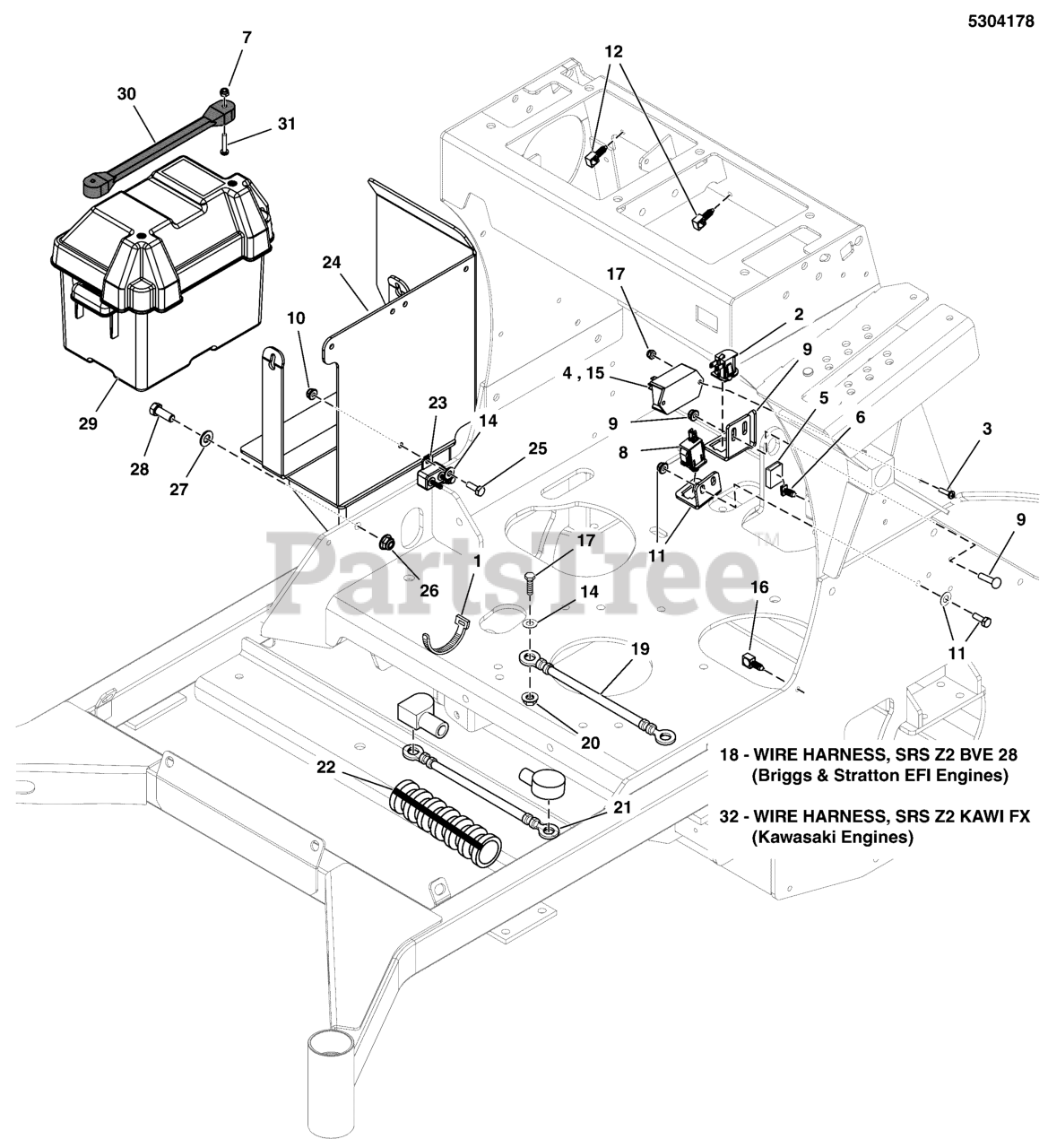

SRS Z2 (5901467) - Ferris SRS Z2 Series 61" Stand-On Mower, 28hp Briggs & Stratton Electrical Group - S/N: 2017576822 & Below Parts Diagram

SRS Z2 Series 61" Stand-On Mower, 28hp Briggs & Stratton

Electrical Group - S/N: 2017576822 & Below Parts Diagram

  • Title

1

Ferris 5021029

TIE, SELF-LOCKING, 12"
(Superseded to 5021029SM)

$

$

Not available

2

Ferris 7023354

SWITCH, SEAT
(Superseded to 7023354YP)

$12.99

$

In Stock, Qty 20+

0

3

Ferris 5025179X6

SCREW, #10-24 X 3/4 ROUND PHILLIPS
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

4

Ferris 5023310

MODULE, TIME DELAY
(Superseded to 5023310SM)

Note: (S/N: 2017329777 & Below)

$114.99

$

Usually ships in 2-12 days

0

5

PART OF WIRE HARNESS

$

$

Not available

6

Ferris 5103761

FIR TREE MOUNT, PACKARD
(Superseded to 5103761YP)

$5.99

$

Usually ships in 2-12 days

0

7

Ferris 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

8

Ferris 5101589

SWITCH, PLUNGER, NO, SINGLE POLE SNAP-IN
(Superseded to 84006599)

$12.99

$

In Stock, only 2 left!

0

9

SEE OPERATOR COMPARTMENT GROUP

$

$

Not available

10

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

11

SEE PARKING BRAKE GROUP

$

$

Not available

12

Ferris 5104705

ROSEBUD LOOM CLIP
(Superseded to 5104705YP)

$2.49

$

Usually ships in 2-12 days

0

13

BATTERY, WET ( BCIU1, 350 CCA)

$

$

Not available

14

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

15

Ferris 5104879

MODULE, TIME DELAY, NO DIODE
(Superseded to 5104879FS)

Note: (S/N: 2017329778 & Above)

$77.99

$

Usually ships in 2-12 days

0

16

Ferris 5104736

ROSEBUD CLIP, 3/8"
(Superseded to 5104736FS)

$2.99

$

Usually ships in 2-12 days

0

17

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

18

Ferris 5414559

WIRE HARNESS, SRS Z2, BVE 28-NO NEUTRAL
(Superseded to 5414559FS)

Note: (Briggs & Stratton EFI Models)

$559.99

$

Usually ships in 2-12 days

0

19

Ferris 5021406

BATTERY CABLE, NEG, 22, 1/4-5/16
(Superseded to 5021406SM)

$16.99

$

Usually ships in 2-12 days

0

20

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

21

Ferris 5021405

BATTERY CABLE, POS, 22, 1/4-5/16
(Superseded to 5021405SM)

$18.99

$

Usually ships in 2-12 days

0

22

Ferris 5050927X19

WIRE LOOM, 3/8 ID X 19 IN
(Superseded to 5050927X19FS)

$2.99

$

In Stock, only 1 left!

0

23

Ferris 1665238

BREAKER-CIRCUIT 12VOLT 20AMPS W/TAB
(Superseded to 1665238SM)

$14.99

$

In Stock, Qty 20+

0

24

Ferris 5413617B

WELD, BATTERY BOX, STAND ON - RED
(Superseded to 5413617BFS)

$168.99

$

Usually ships in 2-12 days

0

25

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 CZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

26

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

27

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

28

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

29

Ferris 5100688

BATTERY BOX, W/ DRAIN HOLE
(Superseded to 5100688YP)

$65.99

$

Usually ships in 2-12 days

0

30

Ferris 5021670

STRAP, RUBBER
(Superseded to 5021670SM)

$13.99

$

In Stock, only 1 left!

0

31

Ferris 5025270

SCREW, #10-24 X 1 RS, CZ
(Superseded to 5025270SM)

$3.49

$

Usually ships in 2-12 days

0

32

Ferris 5414593

WIRE HARNESS, SRS Z2, KAWI FX

Note: (Kawasaki Models)

$725.99

$

Usually ships in 2-12 days

0
