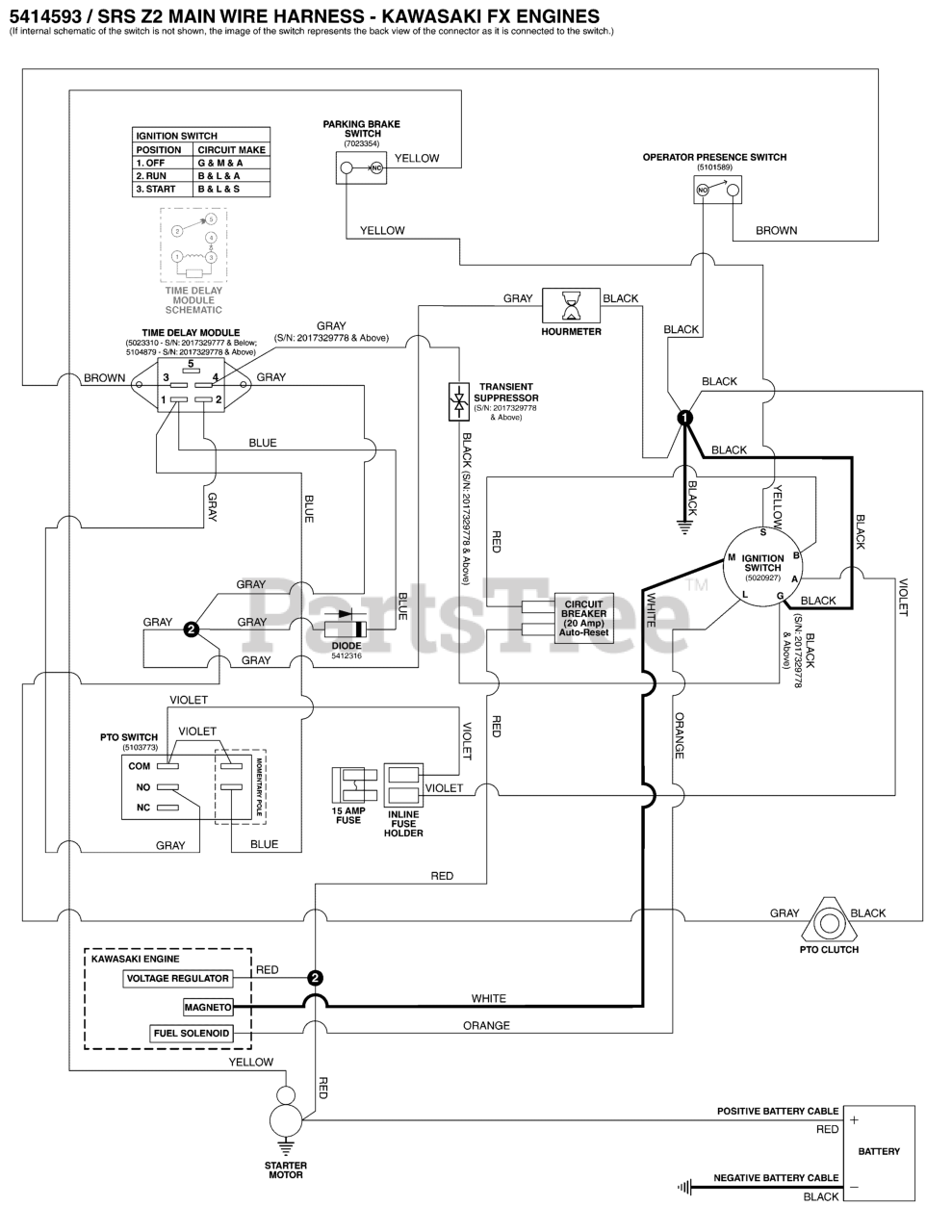

SRS Z2 (5901466) - Ferris SRS Z2 Series 52" Stand-On Mower, 26hp Kawasaki Electrical Schematic - Ignition Grounding Circuit S/N: 2017576822 & Below Parts Diagram

SRS Z2 Series 52" Stand-On Mower, 26hp Kawasaki

Electrical Schematic - Ignition Grounding Circuit S/N: 2017576822 & Below Parts Diagram
