SRS Z2 (5901465) - Ferris SRS Z2 Series 52" Stand-On Mower, 28hp Briggs & Stratton Hydraulic Group Parts Diagram

SRS Z2 Series 52" Stand-On Mower, 28hp Briggs & Stratton

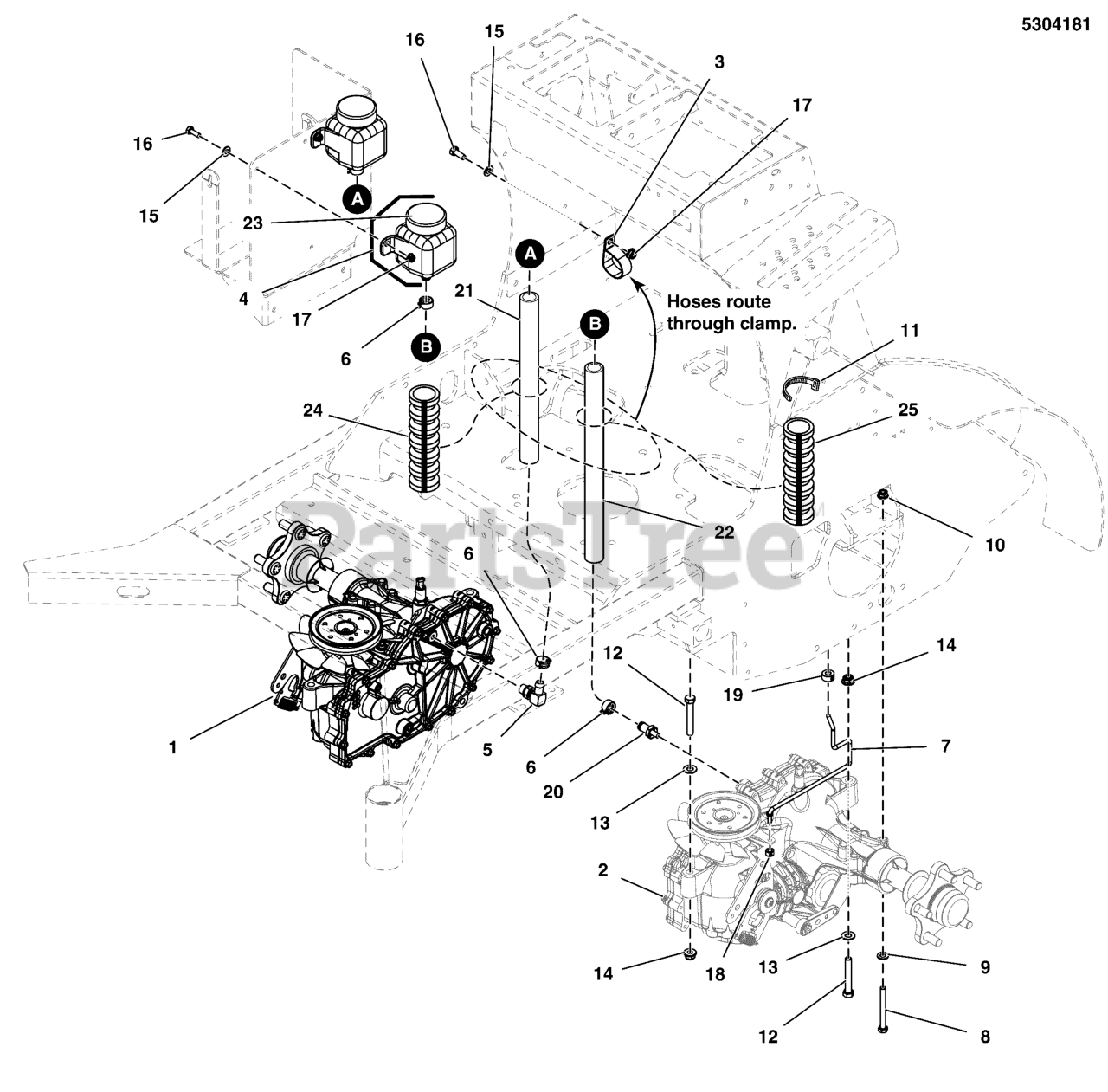

Hydraulic Group Parts Diagram

  • Title

1

Ferris 5106324

TRANSAXLE, ZT3400, RH, ZU-GKEF-3L7B-1UXE
(Superseded to 5109259)

$2462.99

$

Usually ships in 2-12 days

0

2

Ferris 5106323

TRANSAXLE, ZT3400, LH ZU-KKEF-3L7C-1UXE
(Superseded to 5109260)

$2463.99

$

Usually ships in 2-12 days

0

3

Ferris 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

4

Ferris 5100473

HYDRO RES. #71328, 350 ml
(Superseded to 5100473SM)

$40.99

$

Usually ships in 2-12 days

0

5

Ferris 5100370

FITTING, 9/16 O-RING-1/2" HOSE, 90 DEG
(Superseded to 5100370YP)

$18.99

$

Usually ships in 2-12 days

0

6

Ferris 5021392

CLAMP, #6 HOSE, STAINLESS
(Superseded to 5021392SM)

$4.99

$

Usually ships in 2-12 days

0

7

Ferris 5104598

ROD, HYDRO RELEASE, STAND ON
(Superseded to 5104598FS)

$13.99

$

Usually ships in 2-12 days

0

8

Ferris 5025011X24

BOLT, 5/16-18 X 3 GD5 CZ
(Superseded to 5025011X24SM)

Note: (Torque transmission mounting bolt to 17-22 ft-lbs (23-30 Nm)

$3.99

$

Usually ships in 2-12 days

0

9

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

10

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5021030

TIE, SELF-LOCKING, 6"
(Superseded to 5021030SM)

$2.99

$

In Stock, only 3 left!

0

12

Ferris 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

Note: (Torque transmission mounting bolt to 30-35 ft-lbs (41-47 Nm)

$2.99

$

In Stock, only 4 left!

0

13

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

14

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

15

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

16

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 CZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

17

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

18

Ferris 5022481

COLLAR, 1/4 SET
(Superseded to 5022481SM)

$6.99

$

Usually ships in 2-12 days

0

19

Ferris 5020047

COLLAR, 5/16 SET
(Superseded to 5020047SM)

$7.49

$

Usually ships in 2-12 days

0

20

Ferris 5103687

FITTING,#6 O-RING-1/2 HOSE BARB,STRAIGHT
(Superseded to 5103687YP)

$30.99

$

Usually ships in 2-12 days

0

21

Ferris 5050857X30

HOSE, 1/2" PUSH-ON, 30.00"
(Superseded to 5050857X30FS)

$36.99

$

Usually ships in 2-12 days

0

22

Ferris 5050857X39

HOSE, 1/2" PUSH-ON, 39.00"
(Superseded to 5050857X39FS)

$20.99

$

Usually ships in 2-12 days

0

23

Ferris 5100778X1

RESERVIOR CAP

Note: (SV)

$20.99

$

Usually ships in 2-12 days

0

24

Ferris 5100384X8

LOOM, CONVOLUTED SPLIT, 1" ID - 8" LONG

Note: (Installed on hydraulic hose where it passes through the engine deck.)

$

$

Currently unavailable

25

Ferris 5100384X16

LOOM, CONVOLUTED SPLIT, 1" ID - 16" LONG

Note: (Installed on hydraulic hose where it passes through the engine deck.)

$

$

Currently unavailable
