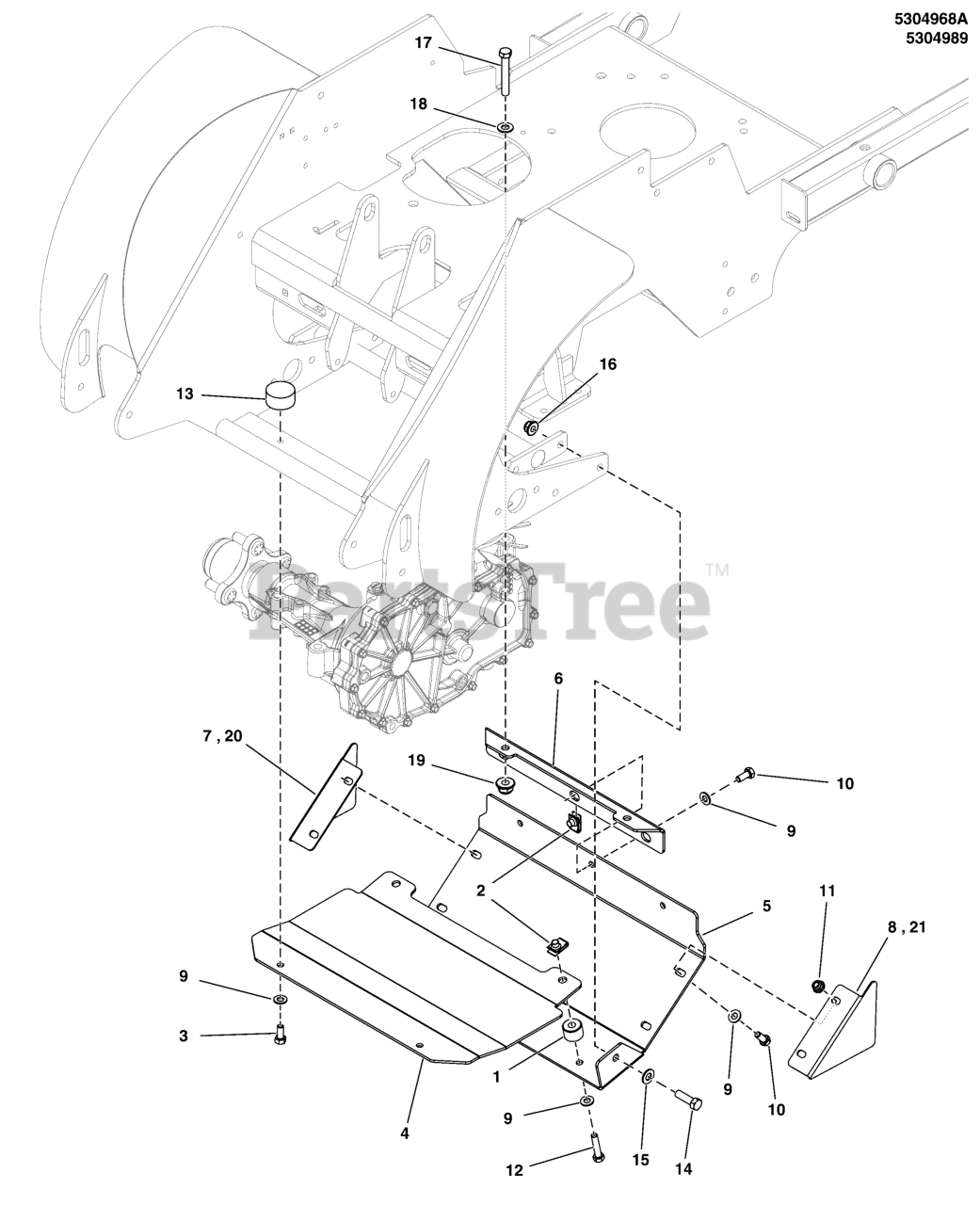

SRS Z1 (5901944) - Ferris SRS Z1 Series 48" Stand-On Mower, 22hp Kawasaki, Rear-Discharge CE Guarding - Transaxles Parts Diagram

SRS Z1 Series 48" Stand-On Mower, 22hp Kawasaki, Rear-Discharge

CE Guarding - Transaxles Parts Diagram

  • Title

1

Ferris 5043815

SPACER, .39 X 1.00 X .75, CZ
(Superseded to 5043815YP)

$10.99

$

Usually ships in 2-12 days

0

2

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 5

0

3

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 CZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

4

Ferris 5416247A

PLATE, PLATFORM GUARD, REAR, CE - BLK

$

$

Currently unavailable

5

Ferris 5416246A

PLATE, PLATFORM GUARD, FRONT, CE - BLK

$

$

Currently unavailable

6

Ferris 5416315A

PLATE, MOUNT, PLATFORM GUARD - BLK

$

$

Currently unavailable

7

Ferris 5416373A

PLATE, DEFLECTOR, LH, 36CE - BLK

Note: (36" Mower Decks Only)

$

$

Currently unavailable

8

Ferris 5416374A

PLATE, DEFLECTOR, RH, 36CE - BLK

Note: (36" Mower Decks Only)

$

$

Currently unavailable

9

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

10

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

11

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

12

Ferris 5025011X12

BOLT, 5/16-18 X 1-1/2 GD5 CZ
(Superseded to 5025011X12SM)

$3.99

$

In Stock, only 2 left!

0

13

Ferris 5104593

BUMPER, RUBBER
(Superseded to 5104593FS)

$9.49

$

Usually ships in 2-12 days

0

14

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

15

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

16

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

17

Ferris 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

In Stock, only 4 left!

0

18

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

19

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

20

Ferris 5416326A

PLATE, DEFLECTOR, LH, 48CE - BLK

Note: (48" Mower Decks Only)

$

$

Currently unavailable

21

Ferris 5416327A

PLATE, DEFLECTOR, RH, 48CE - BLK

Note: (48" Mower Decks Only)

$

$

Currently unavailable
