SRS Z1 (5901943) - Ferris SRS Z1 Series 36" Stand-On Mower, 19hp Kawasaki, Rear-Discharge Deck Lift Group Parts Diagram

SRS Z1 Series 36" Stand-On Mower, 19hp Kawasaki, Rear-Discharge

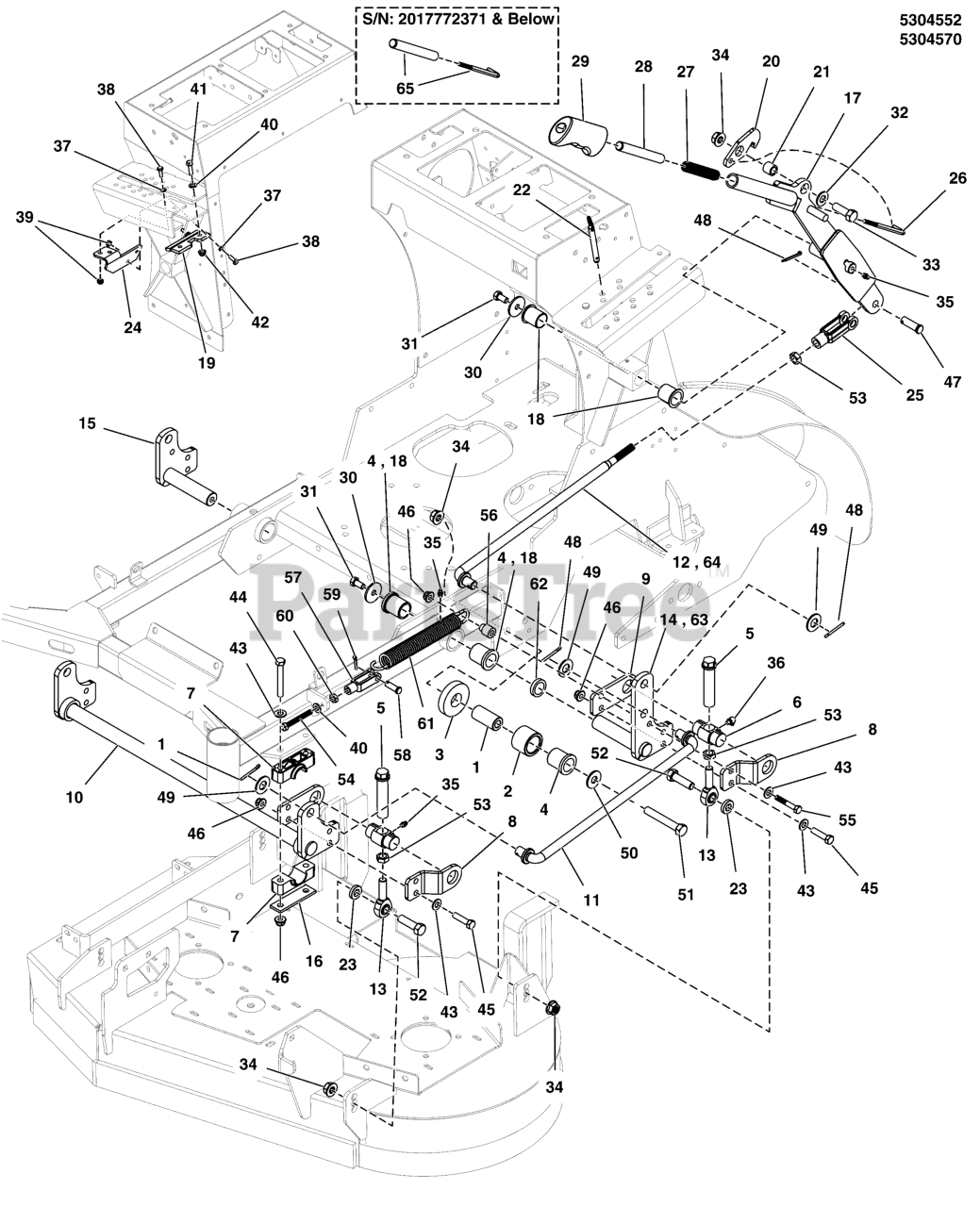

Deck Lift Group Parts Diagram

  • Title

1

Ferris 5100732

SPACER, .52 X 1.00 X 2.09 - SS
(Superseded to 5100732FS)

$28.99

$

In Stock, only 3 left!

0

2

Ferris 5100731

ROLLER, DECK HEIGHT
(Superseded to 5100731FS)

$26.99

$

In Stock, Qty 5

0

3

Ferris 5061010

WASHER, FRICTION
(Superseded to 5061010FS)

$27.99

$

In Stock, only 1 left!

0

4

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

Note: Qty: 2 - Models w/ 48" Mower Decks

$9.99

$

In Stock, Qty 10

0

5

Ferris 5109915FS

ADJUSTER, HEIGHT

$7.49

$

In Stock, only 2 left!

0

6

Ferris 5104238

PIVOT, DECK LIFT TRUNION, GREASABLE
(Superseded to 84003302)

$36.99

$

In Stock, Qty 5

0

7

Ferris 5100634

PIVOT BLOCK, PLASTIC
(Superseded to 5100634SM)

$7.49

$

Usually ships in 2-12 days

0

8

Ferris 5413899A

BRACKET, OUTER TRUNION MNT - BLK
(Superseded to 84003301)

$17.99

$

In Stock, Qty 18

0

9

Ferris 5413900A

BRACKET, INNER TRUNION MNT - BLK
(Superseded to 84003300)

$9.99

$

In Stock, only 3 left!

0

10

Ferris 5414255A

WELD, DECK LIFT SHAFT, SRSZ1 - BLK

$118.99

$

Usually ships in 2-12 days

0

11

Ferris 5104672

ROD, DECK LIFT TIMING, SRSZ1
(Superseded to 5104672FS)

$43.99

$

Usually ships in 2-12 days

0

12

Ferris 5104673

ROD, MAIN DECK LIFT, SRSZ1
(Superseded to 5104673FS)

Note: (Models w/ 36" Mower Decks)

$40.99

$

Usually ships in 2-12 days

0

13

Ferris 5104267

BALL JOINT, 1/2-20, RH, MALE, METAL RACE
(Superseded to 5104267FS)

$29.99

$

Usually ships in 2-12 days

0

14

Ferris 5414258A

WELD, REAR LIFT PIVOT, LH - BLK

Note: (Models w/ 36" Mower Decks)

$65.99

$

Usually ships in 2-12 days

0

15

Ferris 5415289A

WELD, REAR LIFT PIVOT, RH - BLK

$59.99

$

Usually ships in 2-12 days

0

16

Ferris 5403925AA

PLATE, PIVOT BLOCK SUPPORT - BLK
(Superseded to 5403925AAFS)

$3.49

$

Usually ships in 2-12 days

0

17

Ferris 5413616A

WELD, DECK LIFT, STAND ON - BLK
(Superseded to 5413616AAFS)

$151.99

$

In Stock, only 1 left!

0

18

Ferris 5023343

BUSHING, 1.00 X 1.13 X 1.38, PLASTIC
(Superseded to 5023343SM)

Note: Qty: 6 - Models with 48" Mower Decks

$6.49

$

Usually ships in 2-12 days

0

19

Ferris 5414171A

PLATE, LATCH GUIDE - BLK

$11.99

$

Usually ships in 2-12 days

0

20

Ferris 5414040A

PLATE, LATCH, PUSH BUTTON LIFT - BLK
(Superseded to 5414040AAFS)

$6.99

$

In Stock, only 4 left!

0

21

Ferris 5048049

SPACER, .50 X .75 X .66, CZ
(Superseded to 84002461)

$8.49

$

In Stock, only 1 left!

0

22

Ferris 5104610

PIN, HITCH, 3/8" DIA X 2.5" EL, CZ
(Superseded to 5104610FS)

$9.49

$

Usually ships in 2-12 days

0

23

Ferris 5105392

WASHER, .515 X 1.00 X .25", CZ
(Superseded to 5105392FS)

$2.99

$

Usually ships in 2-12 days

0

24

Ferris 5414118AA

PLATE, BRACKET, DECK LIFT SUPPORT - BLK
(Superseded to 5414118AAFS)

$13.99

$

Usually ships in 2-12 days

0

25

Ferris 5023174

CLEVIS, 1/2-20, STEEL, CLEAR ZINC
(Superseded to 5023174SM)

$16.99

$

In Stock, only 1 left!

0

26

Ferris 5105322

ROD, DECK LIFT LATCH
(Superseded to 5105322FS)

Note: (S/N: 2017772372 & Above)

$8.99

$

Usually ships in 2-12 days

0

27

Ferris 1723321

SPRING-COMP 0.715ODX 03.85 LG
(Superseded to 1723321SM)

$6.99

$

In Stock, Qty 5

0

28

Ferris 5105323

BUTTON, PUSH, DECK LIFT, THREADED
(Superseded to 5105323FS)

Note: (S/N: 2017772372 & Above)

$13.99

$

In Stock, only 1 left!

0

29

Ferris 1722291

GRIP,LIFT LEVER
(Superseded to 1722291SM)

$11.99

$

In Stock, Qty 11

0

30

Ferris 5100548

WASHER, .390 X 1.50 X .109, CZ
(Superseded to 5100548SM)

$4.49

$

Usually ships in 2-12 days

0

31

Ferris 5025443

BOLT, 3/8-16 X 3/4, PLT W/PATCH
(Superseded to 5025443SM)

$3.49

$

Usually ships in 2-12 days

0

32

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 14

0

33

Ferris 5025017X12

BOLT, 1/2-13 X 1-1/2 GD5 CZ
(Superseded to 5025017X12YP)

$3.99

$

Usually ships in 2-12 days

0

34

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

35

Ferris 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

36

Ferris 5025447

GREASE FITTING, 1/4-28, 90 DEGREE
(Superseded to 5025447FS)

$3.99

$

Usually ships in 2-12 days

0

37

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

38

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 CZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

39

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

40

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

41

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 CZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

42

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

43

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

44

Ferris 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, only 3 left!

0

45

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

46

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

47

Ferris 5025328X12

PIN, CLEVIS, 1/2 X 1-1/2, CL/ZC
(Superseded to 5025328X12SM)

$4.99

$

In Stock, only 4 left!

0

48

Ferris 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

In Stock, only 1 left!

0

49

Ferris 5025281

WASHER, 5/8 SAE
(Superseded to 5025281SM)

$3.99

$

In Stock, Qty 8

0

50

Ferris 5025150

WASHER, 1/2 USS
(Superseded to 5025150SM)

$3.99

$

In Stock, only 2 left!

0

51

Ferris 5025017X26

BOLT, 1/2-13 X 3-1/4, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X26SM)

$5.49

$

In Stock, only 2 left!

0

52

Ferris 5025017X14

BOLT, 1/2-13 X 1-3/4 GD5 CZ
(Superseded to 5025017X14YP)

$3.49

$

In Stock, only 4 left!

0

53

Ferris 5025089

NUT, 1/2-20 HEX JAM
(Superseded to 5025089SM)

$3.99

$

In Stock, Qty 20+

0

54

Ferris 5025055X20

BOLT, 5/16-18 X 2-1/2 GD5 TFL, CZ
(Superseded to 5025055X20FS)

$7.49

$

Usually ships in 2-12 days

0

55

Ferris 80003522

HHCS, 3/8-16 X 2.00, GR5, ZINC/CLEAR
(Superseded to 703589)

$4.49

$

Usually ships in 2-12 days

0

56

Ferris 1706644

SPACER,3/8X3/4X15/16
(Superseded to 1706644SM)

$8.49

$

In Stock, only 3 left!

0

57

Ferris 5100375

CLEVIS, 5/16-18, 3/8 PIN HOLE, CLR ZINC
(Superseded to 5100375YP)

$20.99

$

In Stock, only 1 left!

0

58

Ferris 5025214X9

PIN, CLEVIS, 3/8 X 1-1/8, PLATED
(Superseded to 5025214X9SM)

$3.99

$

Usually ships in 2-12 days

0

59

Ferris 80002736

PIN, 3/32 X .750, COT, ZINC/CLEAR
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

60

Ferris 5025388

NUT, 5/16-18 HEX JAM
(Superseded to 5025388YP)

$3.99

$

Usually ships in 2-12 days

0

61

Ferris 1675232

SPRING-EXTN 1.12 ODX 09.06 LG .177 ECOAT
(Superseded to 1675232SM)

$20.99

$

Usually ships in 2-12 days

0

62

Ferris 5041476

SPACER, 1.02 X 1.56 X .50
(Superseded to 5041476SM)

$5.49

$

In Stock, only 4 left!

0

63

Ferris 5415286A

WELD, REAR LIFT PIVOT, LH - BLK

Note: (Models w/ 48" Mower Decks)

$79.99

$

Usually ships in 2-12 days

0

64

Ferris 5105002

ROD, MAIN DECK LIFT, 14.00
(Superseded to 5105002FS)

Note: (Models w/ 48" Mower Decks)

$42.99

$

Usually ships in 2-12 days

0

65

Ferris 5600953

KIT, RELEASE BUTTON AND ROD

Note: (S/N: 2017772371 & Below)

$48.99

$

Usually ships in 2-12 days

0
