SRS Z1 (5901942) - Ferris SRS Z1 Series 48" Stand-On Mower, 23hp Briggs & Stratton 48" Mower Deck - Pulleys, Belt, & Idler Arm Parts Diagram

SRS Z1 Series 48" Stand-On Mower, 23hp Briggs & Stratton

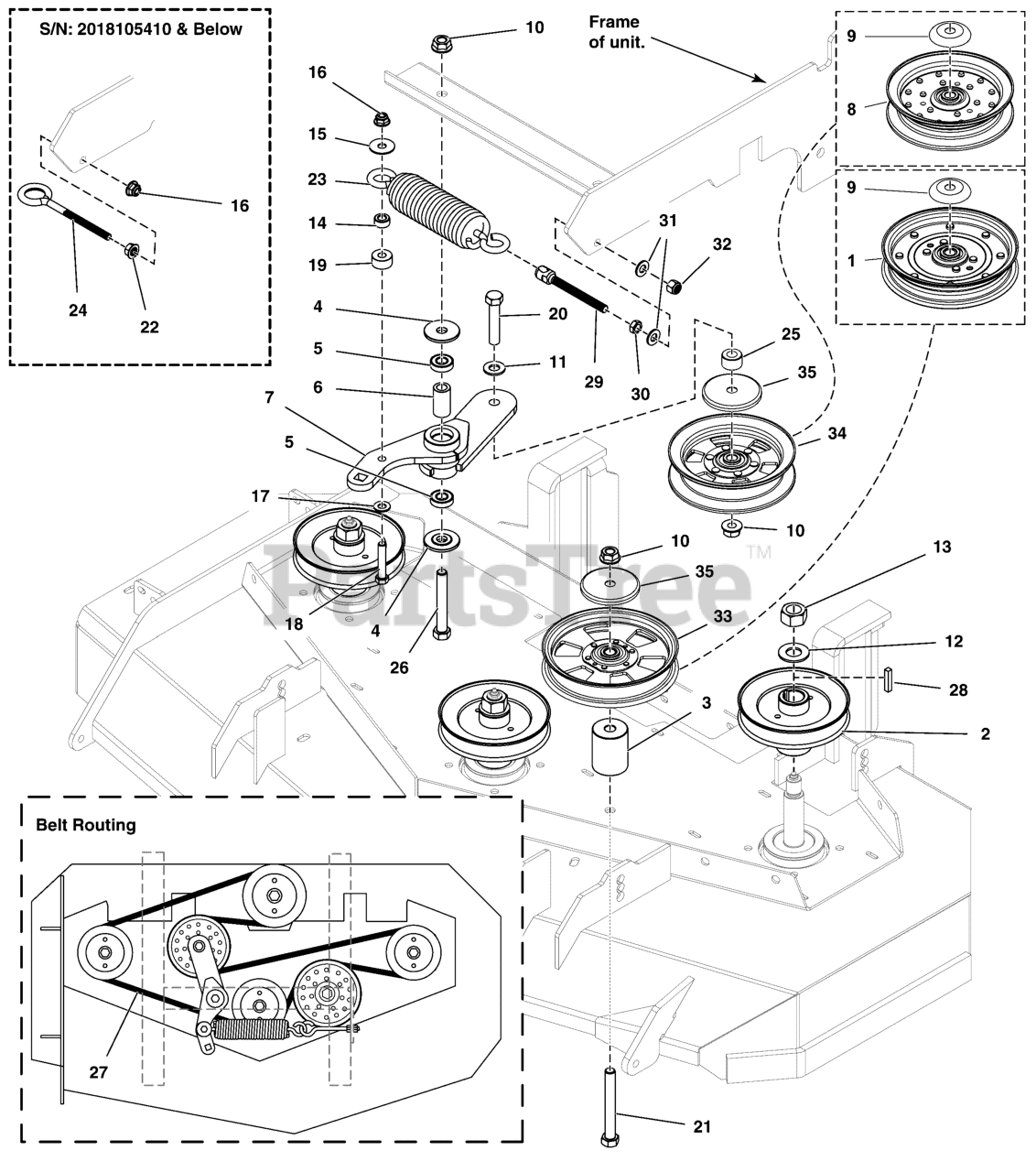

48" Mower Deck - Pulleys, Belt, & Idler Arm Parts Diagram

  • Title

1

Replace with: Pulley #5104717 & Debris Shield #5105145

Note: (S/N: 2017720519 and below)

$

$

Not available

2

Ferris 5104680

PULLEY, B-SEC, 5.426OB, SPECIAL HUB
(Superseded to 5104680FS)

$46.99

$

In Stock, only 1 left!

0

3

Ferris 5104643

SPACER, .52 X 1.75 X 2.25, CZ
(Superseded to 5104643FS)

$26.99

$

Usually ships in 2-12 days

0

4

Ferris 5103262

SPACER, IDLER ARM, 1/2, PM
(Superseded to 5103262YP)

$7.99

$

In Stock, Qty 15

0

5

Ferris 7078243

BEARING, BALL, AXLE
(Superseded to 7078243YP)

$10.99

$

In Stock, Qty 18

0

6

Ferris 5103812

SPACER, .52 X .84 X 1.53, PM
(Superseded to 5103812YP)

$7.99

$

In Stock, Qty 7

0

7

Ferris 5415147AA

WELD, IDLER ARM, MOWER DECK - BLK

$

$

Currently unavailable

8

USE 5104716 PULLEY + 5105145 SHIELD

Note: (S/N: 2017720519 and below)

$

$

Not available

9

Ferris 5101103

SHIELD, PULLEY BEARING, CZ
(Superseded to 5101103SM)

Note: (S/N: 2017720519 and below)

$10.99

$

In Stock, Qty 20+

0

10

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

11

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 11

0

12

Ferris 5025406

WASHER, 3/4 BELLEVILLE CL/ZC
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

13

Ferris 5025405

NUT, 3/4-16 Hex
(Superseded to 5025405SM)

$3.99

$

In Stock, Qty 20+

0

14

Ferris 5044933

SPACER, .39 X .75 X .38, PM, CZ
(Superseded to 5044933SM)

$4.99

$

In Stock, only 2 left!

0

15

Ferris 5025165

WASHER, 3/8" Fender
(Superseded to 5025165SM)

$3.99

$

In Stock, only 2 left!

0

16

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

Note: (Qty: 2 - S/N: 2018105410 & Below)

$4.49

$

In Stock, Qty 20+

0

17

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

18

Ferris 80003522

HHCS, 3/8-16 X 2.00, GR5, ZINC/CLEAR
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

19

Ferris 5046860

SPACER, .39 X 1.00 X .50, PM, CZ
(Superseded to 5046860SM)

$6.49

$

In Stock, only 1 left!

0

20

Ferris 5025017X20

BOLT, 1/2-13 X 2-1/2" GD5 CZ
(Superseded to 5025017X20SM)

$5.49

$

In Stock, Qty 9

0

21

Ferris 5025017X32

BOLT, 1/2-13 X 4" GD5 CZ
(Superseded to 5025017X32YP)

$6.49

$

In Stock, only 4 left!

0

22

Ferris 5025128

NUT, 3/8-16 Hex Large Serrated Flange
(Superseded to 5025128SM)

Note: (S/N: 2018105410 & Below)

$3.49

$

In Stock, only 2 left!

0

23

Ferris 5104996

SPRING, DECK, SRSZ1
(Superseded to 5104996FS)

$69.99

$

Usually ships in 2-12 days

0

24

Ferris 5021812

EYE BOLT, 3/8-16 X 6, 3THRD, 1EYE, CZ
(Superseded to 5021812SM)

Note: (S/N: 2018105410 & Below)

$5.99

$

In Stock, Qty 18

0

25

Ferris 5101161

SPACER, .52 X 1.00 X .63, YZ
(Superseded to 5101161YP)

$8.99

$

In Stock, only 1 left!

0

26

Ferris 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

In Stock, only 3 left!

0

27

Ferris 5104995

BELT, B-SEC, 115.29, ARAMID, WRAPED
(Superseded to 5104995FS)

$90.99

$

In Stock, Qty 7

0

28

Ferris 5050407X20

KEY, 1/4 SQ X 2-1/2
(Superseded to 5050407X20SM)

$5.99

$

In Stock, only 1 left!

0

29

Ferris 5105849

SPRING PULLER, 1/2-20, 6.00
(Superseded to 5105849YP)

Note: (S/N: 2018105411 & Above)

$17.99

$

Usually ships in 2-12 days

0

30

Ferris 5025089

NUT, 1/2-20 Hex Jam
(Superseded to 5025089SM)

Note: (S/N: 2018105411 & Above)

$3.99

$

In Stock, Qty 19

0

31

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

Note: (S/N: 2018105411 & Above)

$3.99

$

In Stock, Qty 11

0

32

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

Note: (S/N: 2018105411 & Above)

$5.99

$

In Stock, only 2 left!

0

33

Ferris 5104717

PULLEY, FLT IDLR, 6.0 X 1.0 X .50, CZ
(Superseded to 5104717YP)

Note: (S/N: 2017720520 and above)

$58.99

$

In Stock, Qty 20+

0

34

Ferris 5104716

PULLEY,IDLER,BACKSIDE,NOSEAM 6.25ODX.5ID
(Superseded to 5104716YP)

Note: (S/N: 2017720520 and above)

$59.99

$

In Stock, Qty 14

0

35

Ferris 5105145

SHIELD, BEARING, 1/2 ID X 2-7/8 OD, CZ
(Superseded to 5105145YP)

Note: (S/N: 2017720520 and above)

$4.49

$

In Stock, Qty 20+

0
