SRS Z1 (5901678) - Ferris SRS Z1 Series 36" Stand-On Mower, 19hp Kawasaki, CARB Instrument Control Panel Group Parts Diagram

SRS Z1 Series 36" Stand-On Mower, 19hp Kawasaki, CARB

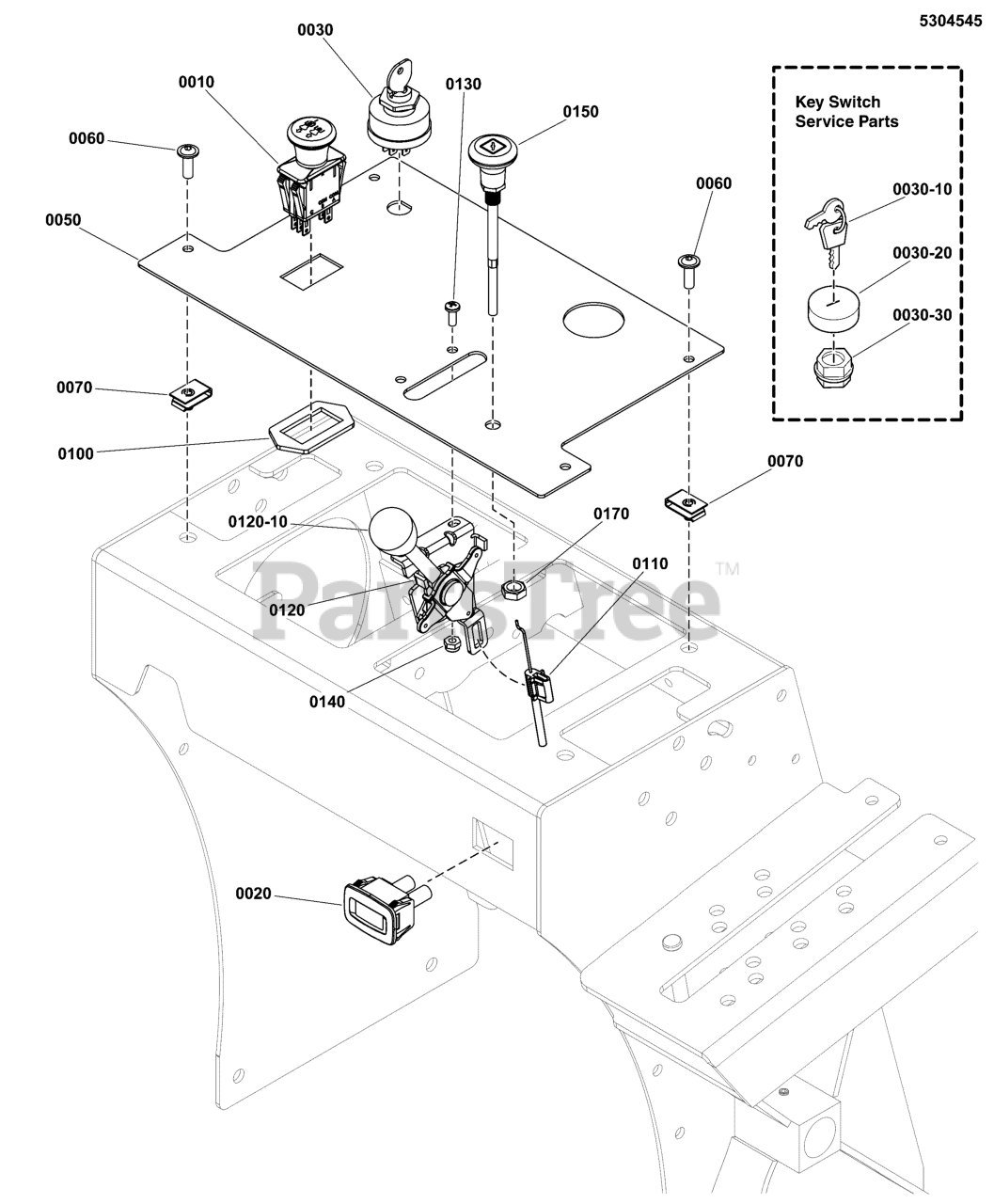

Instrument Control Panel Group Parts Diagram

  • Title
0010

Ferris 5104697

PTO SWITCH, MOMENTARY, SMALL KNOB
(Superseded to 5104697FS)

$30.99

$

In Stock, Qty 14

0

0020

Ferris 84008510

HOURMETER

$33.99

$

In Stock, Qty 10

0

0030

Ferris 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

$33.99

$

In Stock, only 3 left!

0

0030-10

Ferris 5022789

KEY, IGNITION MOLDED SET

$

$

Currently unavailable

0030-20

Ferris 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

$4.49

$

In Stock, only 1 left!

0

0030-30

Ferris 5022791

PLASTIC NUT
(Superseded to 5022791SM)

$3.49

$

In Stock, only 1 left!

0

0050

Ferris 5601073

DASH PANEL, W/DECALS, SRS Z1 USA

Note: (5415380A)(For USA Models)

$102.99

$

Usually ships in 2-12 days

0

0050

Ferris 5601074

DASH PANEL, W/DECALS, SRS Z1, EXP

Note: (5415380A)(For Export Models)

$

$

Currently unavailable

0060

Ferris 5106757

SCREW, FLANGE, ALLEN HD, 1/4-20 X .75 SS
(Superseded to 84003668)

$3.49

$

Usually ships in 2-12 days

0

0070

Ferris 5022665

BODY CLIP, 1/4-20 X 1/2" DEEP
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

0100

Ferris 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 2 left!

0

0110

Ferris 5101074

CABLE, THROTTLE, 40"
(Superseded to 5101074SM)

$33.99

$

In Stock, only 1 left!

0

0120

Ferris 5101995

LEVER, HEAVY DUTY, THROTTLE CONTROL
(Superseded to 5101995YP)

$42.99

$

In Stock, only 2 left!

0

0130

Ferris 5025179X4

SCREW, #10-24 X 1/2" ROUND PHILLIPS

Note: (USA Models Only)

$

$

Currently unavailable

0130

Ferris 5025179X6

SCREW, #10-24 X 3/4" ROUND PHILLIPS
(Superseded to 5025179X6SM)

Note: (CE Models Only)

$3.99

$

Usually ships in 2-12 days

0

0140

Ferris 5025271

NUT, Hex, Nylon Lock, #10-24
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

0150

Ferris 5100184

CABLE, CHOKE CONTROL, 43.5"
(Superseded to 5100184SM)

$40.99

$

In Stock, Qty 5

0

0170

Ferris 5025309

NUT, 3/8-24 Hex Jam
(Superseded to 5025309SM)

$2.99

$

Usually ships in 2-12 days

0

0190

PLATE, THROTTLE STOP, SW35

Note: (CE Models Only)

$

$

Not available
