SRS Z1 (5901677) - Ferris SRS Z1 Series 48" Stand-On Mower, 22hp Kawasaki, Rear-Discharge CE Guarding - Deck Lift & Front End Parts Diagram

SRS Z1 Series 48" Stand-On Mower, 22hp Kawasaki, Rear-Discharge

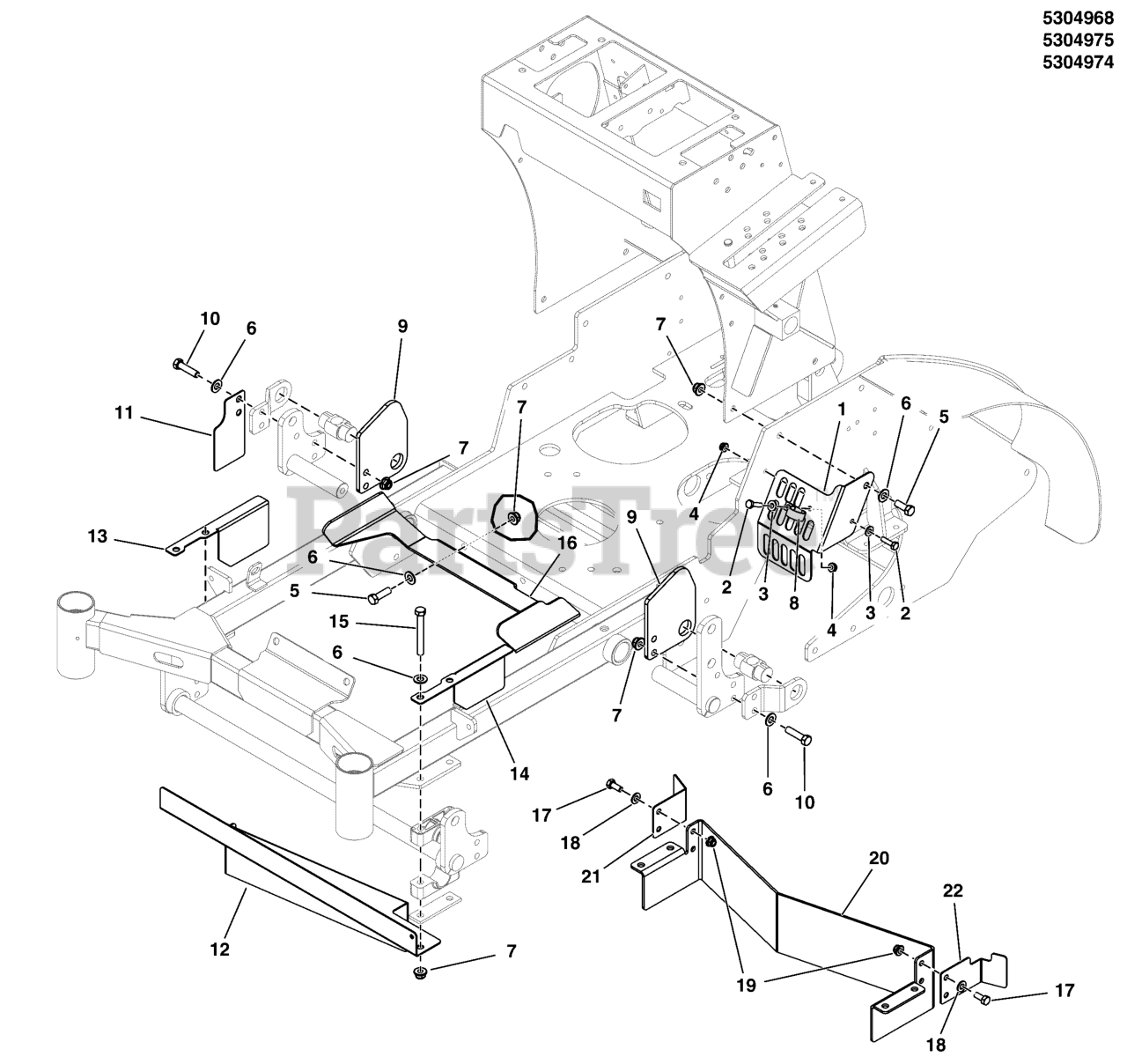

CE Guarding - Deck Lift & Front End Parts Diagram

  • Title

1

Ferris 5416173B

PLATE, FAN GUARD, SRSZ1 CE - RED

$

$

Currently unavailable

2

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 CZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

3

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

4

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

5

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

6

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

7

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

8

Ferris 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

9

Ferris 5416249A

BRACKET, INNER TRUNION, CE - BLK

$

$

Currently unavailable

10

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

11

Ferris 5416245A

PLATE, PIVOT GUARD, 36 CE - BLK

Note: (36" Mower Decks Only)

$

$

Currently unavailable

12

Ferris 5416236B

PLATE, DECK GUARD, UPPER 36 CE - RED

Note: (36" Mower Decks Only)

$

$

Currently unavailable

13

Ferris 5416395B

PLATE, FRAME GUARD, RH - RED

Note: (36" Mower Decks Only)

$

$

Currently unavailable

14

Ferris 5416396B

PLATE, FRAME GUARD, LH - RED

Note: (36" Mower Decks Only)

$

$

Currently unavailable

15

Ferris 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

$3.99

$

In Stock, only 1 left!

0

16

Ferris 5416174B

PLATE, ENGINE GUARD, SRSZ1 CE - RED

$

$

Currently unavailable

17

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

Note: (48" Mower Decks Only)

$3.99

$

In Stock, Qty 7

0

18

Ferris 5025155

WASHER, 5/16" SAE

Note: (48" Mower Decks Only)

$

$

Currently unavailable

19

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

Note: (48" Mower Decks Only)

$3.49

$

Usually ships in 2-12 days

0

20

Ferris 5416251B

PLATE, DECK GUARD, UPPER, 48 CE - RED

Note: (48" Mower Decks Only)

$

$

Currently unavailable

21

Ferris 5416401B

PLATE, FRAME GUARD, LOWER, RH - RED

Note: (48" Mower Decks Only)

$

$

Currently unavailable

22

Ferris 5416402B

PLATE, FRAME GUARD, LOWER, LH - RED

Note: (48" Mower Decks Only)

$

$

Currently unavailable
