SRS Z1 (5901546) - Ferris SRS Z1 Series 36" Stand-On Mower, 19hp Kawasaki Wheel & Tire Group Parts Diagram

SRS Z1 Series 36" Stand-On Mower, 19hp Kawasaki

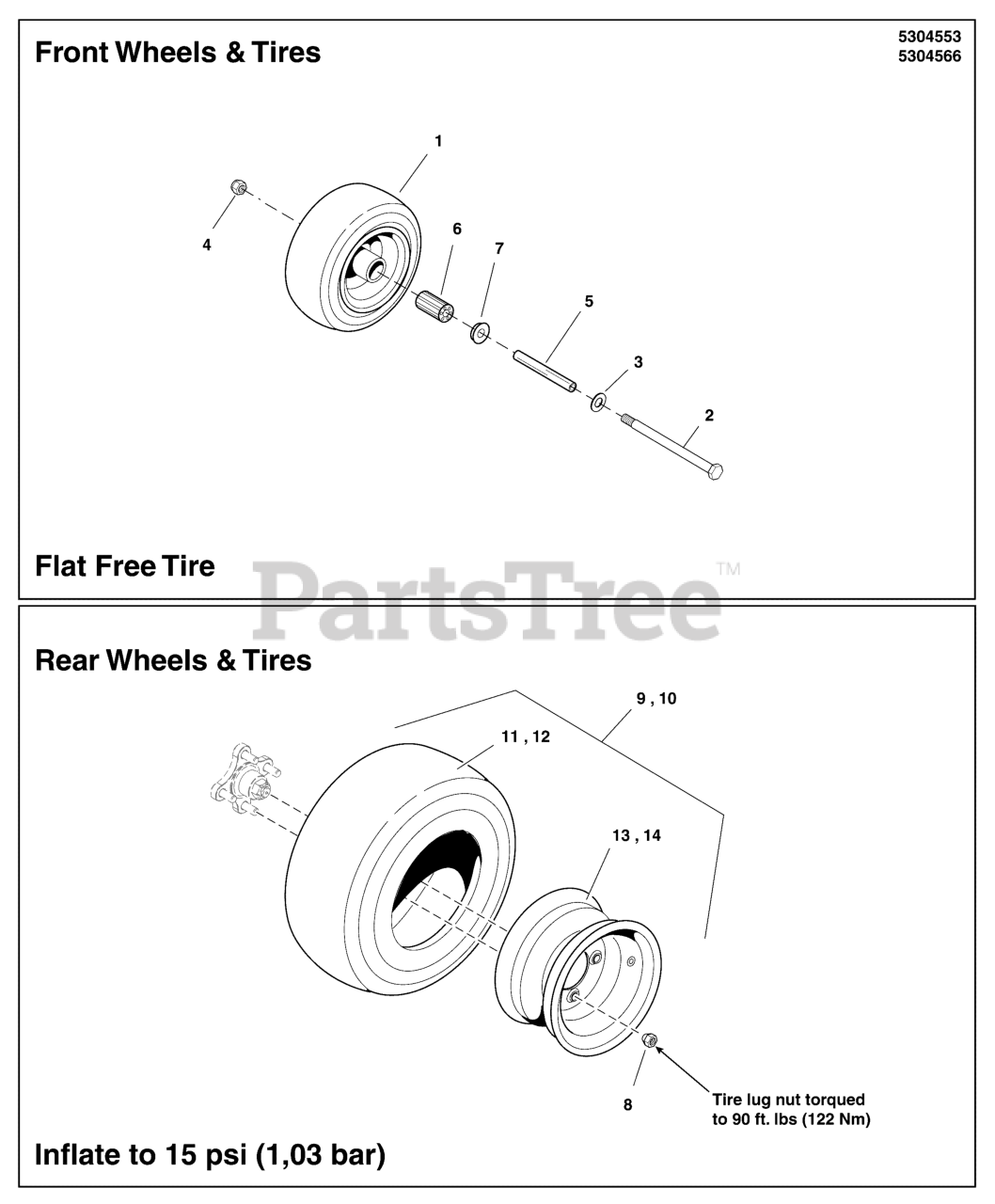

Wheel & Tire Group Parts Diagram

  • Title
1

Ferris 5100715

TIRE ASSM, 11 X 4 - 5, FF / CB
(Superseded to 5100715YP)

$154.99

$

Usually ships in 2-12 days

0

2

Ferris 5025017X56

BOLT, 1/2-13 X 7 GD5 CZ
(Superseded to 5025017X56YP)

$14.99

$

In Stock, Qty 8

0

3

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 8

0

4

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

5

Ferris 5045996

CASTER AXLE DDSH
(Superseded to 5045996SM)

$15.99

$

In Stock, Qty 18

0

6

Ferris 5101418X1

BEARING, ROLLER

Note: (SV)

$27.99

$

Usually ships in 2-12 days

0

7

Ferris 5021043

BEARING, RETAINER

Note: (SV)

$6.99

$

Usually ships in 2-12 days

0

8

Ferris 5020601

NUT, 1/2-20, FOR WHEEL BOLT SILVER
(Superseded to 5020601SM)

$3.49

$

In Stock, Qty 20+

0

9

Ferris 5104823

TIRE WHEEL ASM, 23 X 8.5-12, TURF MASTER
(Superseded to 5104823FS)

Note: (36" Deck Models)

$296.99

$

Usually ships in 2-12 days

0

10

Ferris 5104988

TIRE WHEEL ASM, 23 x 10.5-12, TURF SMART

Note: (48" Deck Models - S/N: 4000771923 and below)

$361.99

$

Usually ships in 2-12 days

0

10

Ferris 5108120

TIRE/WHEEL ASM, 23X10.5-12, TURF MASTER
(Superseded to 5108120FS)

Note: (48" Deck Models - S/N: 4000771924 and above)

$296.99

$

Usually ships in 2-12 days

0

11

Ferris 5104823X2

TIRE, 23 X 8.5-12NHS, TURF MASTER

Note: (Service part for 5104823)

$171.99

$

Usually ships in 2-12 days

0

12

Ferris 5103920X2

TIRE, 23 X 10.5-12NHS, TURF SMART

Note: (Service part for 5104988)

$373.99

$

Usually ships in 2-12 days

0

12

Ferris 84003895

TIRE

Note: (Service part for 5108120)

$353.99

$

Usually ships in 2-12 days

0

13

Ferris 5104823X1

WHEEL, 12.0 X 7.0, 4/4.0", SILVER

Note: (Service part for 5104823)

$151.99

$

Usually ships in 2-12 days

0

14

Ferris 5104988X1

WHEEL ASM, 12 X 8.5-12, 1.87OS, SLVR

Note: (Service part for 5104988 & 5108120)

$201.99

$

Usually ships in 2-12 days

0
