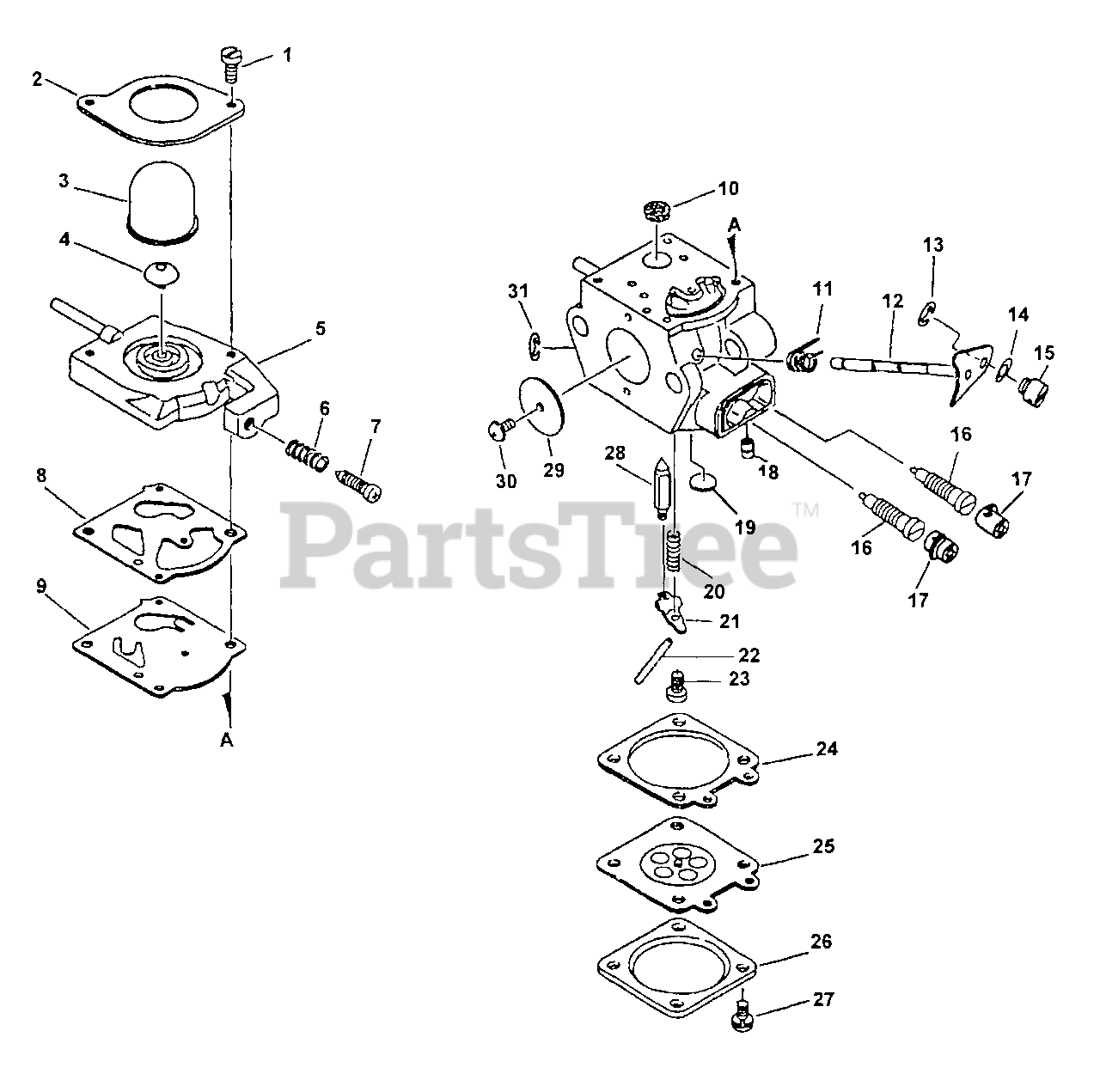

Carburetor Parts Diagram

  • Title

Echo 12300052131

CARBURETOR WT-424A
(Superseded to 12300052132)

Note: Includes ITEMS 1-31

$94.99

$

Usually ships in 2-4 days

0

1

Echo 12311043130

SCREW, PUMP COVER

$0.99

$

Usually ships in 2-4 days

0

2

Echo 12314209560

RETAINER, PURGE BULB

$6.99

$

Usually ships in 2-4 days

0

3

Echo 12318109560

BULB, PURGE
(Superseded to A263000020)

$4.99

$

In Stock, Qty 20+

0

4

Echo 12317135630

VALVE, CHECK

$3.99

$

In Stock, only 2 left!

0

5

Echo 12312443230

BASE, PURGE

$8.49

$

In Stock, only 1 left!

0

6

Echo 12313304260

SPRING, IDLE ADJUST

$6.49

$

In Stock, Qty 16

0

7

Echo 12313404260

SCREW, IDLE ADJUST

$1.99

$

In Stock, Qty 11

0

8

------------------

GASKET, PURGE

Note: INCLUDED IN REBUILD KIT P/N 12310052130 & GASKET/DIAPHRAGM KIT P/N 12310152130

$

$

Not available

9

------------------

DIAPHRAGM, PURGE

Note: INCLUDED IN REBUILD KIT P/N 12310052130 & GASKET/DIAPHRAGM KIT P/N 12310152130

$

$

Not available

10

------------------

STRAINER

Note: INCLUDED IN REBUILD KIT P/N 12310052130

$

$

Not available

11

Echo 12311352130

SPRING, THROTTLE RETURN

$1.99

$

Usually ships in 2-4 days

0

12

Echo 12311752130

SHAFT, THROTTLE

$7.49

$

Usually ships in 2-4 days

0

13

Echo 12317307930

RING, RETAINING

$1.49

$

In Stock, only 1 left!

0

14

Echo 12314926030

WASHER

$0.99

$

In Stock, only 1 left!

0

15

Echo 12317226030

SWIVEL

$1.99

$

Usually ships in 2-4 days

0

16

Echo 12312052130

NEEDLE - MIXTURE
(Superseded to 12312052131)

$4.49

$

Usually ships in 2-4 days

0

17

Echo 12315139230

CAP, LIMITER

Note: TYPE 1E ONLY

$1.99

$

In Stock, Qty 20+

0

18

Echo 12318752130

NOZZLE, CHECK VALVE

$4.49

$

Usually ships in 2-4 days

0

19

------------------

PLUG, WELCH

Note: INCLUDED IN REBUILD KIT P/N 12310052130

$

$

Not available

20

------------------

SPRING, METERING LEVER

Note: INCLUDED IN REBUILD KIT P/N 12310052130

$

$

Not available

21

------------------

LEVER, METERING

Note: INCLUDED IN REBUILD KIT P/N 12310052130

$

$

Not available

22

------------------

PIN, METERING LEVER

Note: INCLUDED IN REBUILD KIT P/N 12310052130

$

$

Not available

23

------------------

SCREW, METERING LEVER PIN

Note: INCLUDED IN REBUILD KIT P/N 12310052130

$

$

Not available

24

------------------

GASKET, METERING

Note: INCLUDED IN REBUILD KIT P/N 12310052130 & GASKET/DIAPHRAGM KIT P/N 12310152130

$

$

Not available

25

------------------

DIAPHRAGM, METERING

Note: INCLUDED IN REBUILD KIT P/N 12310052130 & GASKET/DIAPHRAGM KIT P/N 12310152130

$

$

Not available

26

Echo 12314203930

COVER, METERING

$3.99

$

In Stock, only 1 left!

0

27

------------------

SCREW

Note: INCLUDED IN REBUILD KIT P/N 12310052130

$

$

Not available

28

------------------

VALVE, INLET NEEDLE

Note: INCLUDED IN REBUILD KIT P/N 12310052130

$

$

Not available

29

Echo 12311652130

VALVE, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

30

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 13

0

31

Echo 12312715030

RING, RETAINING

$0.99

$

In Stock, only 2 left!

0

Echo 12310052130

REPAIR KIT

Note: INCLUDES ITEMS 8-10, 19, 20-25, 27, & 28

$23.99

$

In Stock, only 1 left!

0

Echo 12310152130

DIAPHRAGM/GASKET KIT

Note: INCLUDES ITEMS 8, 9, 24, 25

$5.99

$

In Stock, Qty 11

0
