SRM-520 ES/U - Echo Brush Cutter (SN: U70926001001 - U70926999999) Starter Parts Diagram

Brush Cutter

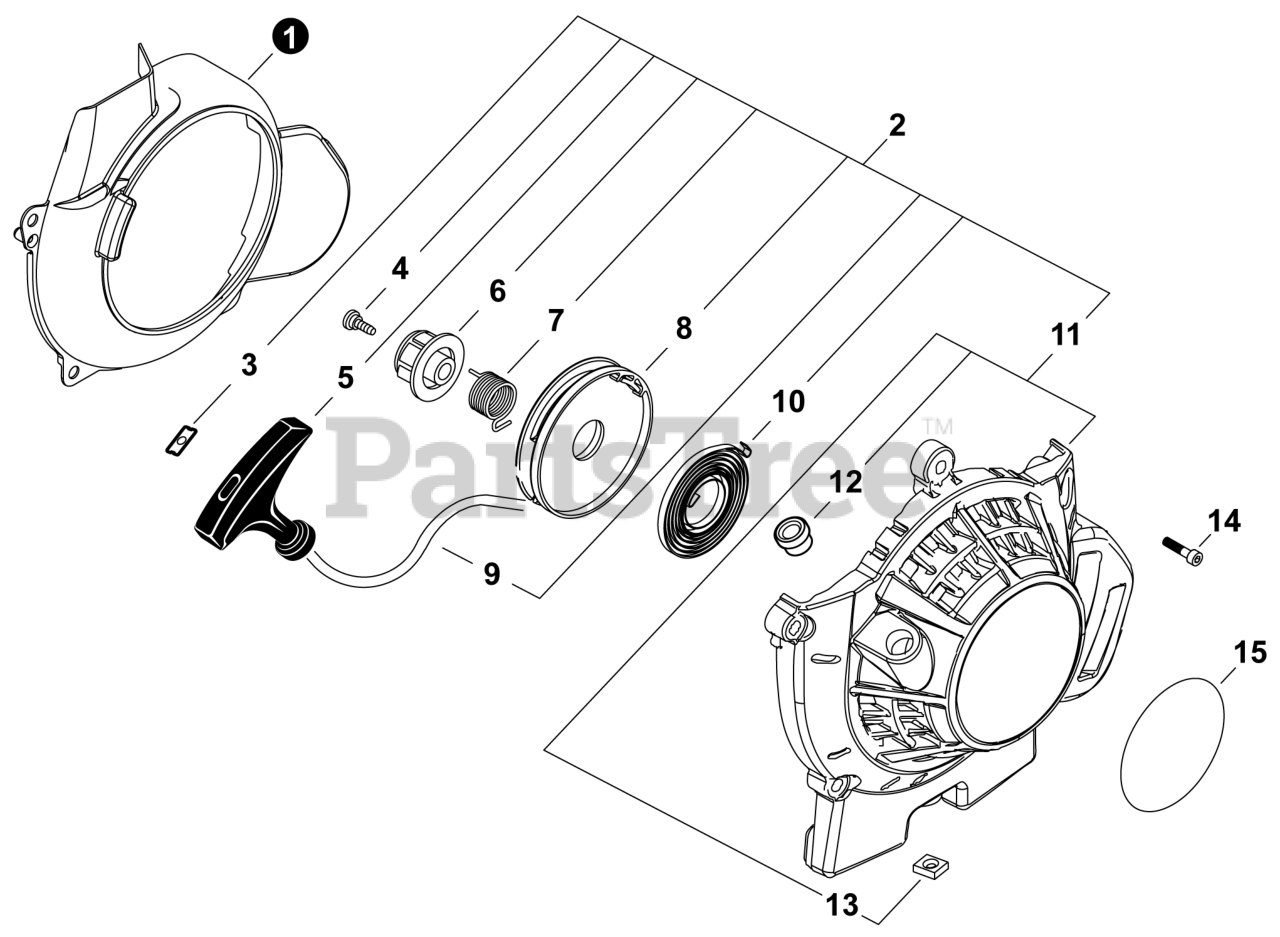

Starter Parts Diagram

  • Title

1

Echo A172002600

COVER, FAN

$7.49

$

Usually ships in 2-4 days

0

2

Echo A051002881

STARTER ASSY, RECOIL

Note: Includes iitems 3-13

$111.99

$

Usually ships in 2-4 days

0

3

Echo P022037670

RETAINER, ROPE

$2.49

$

In Stock, Qty 7

0

4

Echo P022023110

SCREW

$3.99

$

Usually ships in 2-4 days

0

5

Echo 17722811120

GRIP, STARTER

$5.99

$

Usually ships in 2-4 days

0

6

Echo P022033830

CAM

$6.99

$

Usually ships in 2-4 days

0

7

Echo P022023120

SPRING, TORSION

$7.49

$

Usually ships in 2-4 days

0

8

Echo P022023140

REEL, ROPE

$15.99

$

Usually ships in 2-4 days

0

9

Echo P022037560

ROPE, STARTER

$4.99

$

Usually ships in 2-4 days

0

10

Echo P022004680

SPRING, RECOIL

$10.99

$

In Stock, Qty 5

0

11

Echo P022037550

CASE, STARTER

Note: Includes iitems 12-13

$71.99

$

Usually ships in 2-4 days

0

12

Echo P022045770

GUIDE, ROPE

$3.49

$

In Stock, only 1 left!

0

13

Echo 90056500005

NUT M5
(Superseded to 90056550005)

$0.99

$

In Stock, Qty 20+

0

14

Echo V835000030

BOLT, TORX 5x20

$1.49

$

In Stock, only 4 left!

0

15

Echo X502000900

LABEL - RECOIL STARTER

$2.49

$

In Stock, only 1 left!

0
