SRM-520 ES/U - Echo Brush Cutter (SN: U70926001001 - U70926999999) Fuel System Parts Diagram

Brush Cutter

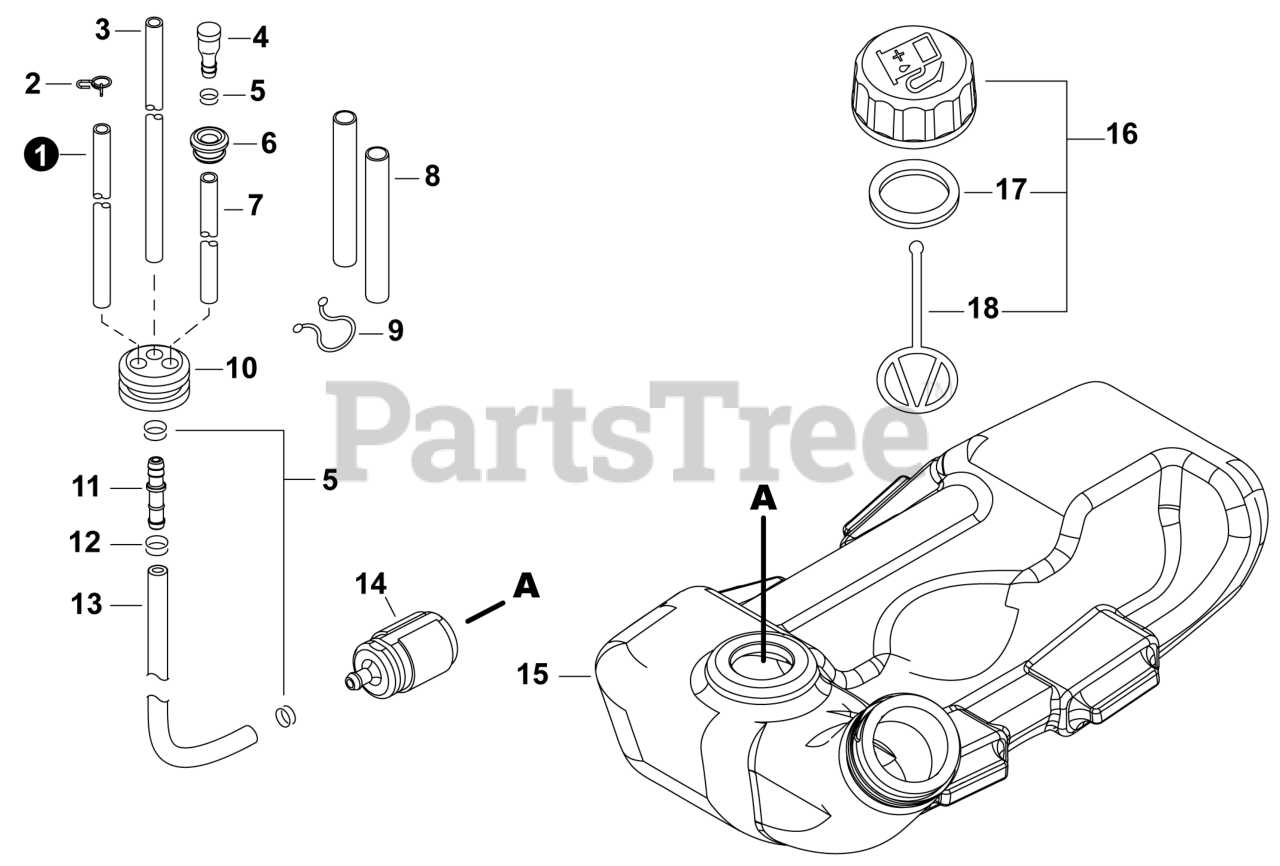

Fuel System Parts Diagram

  • Title

1

Echo V471000630

PIPE, FUEL 3x6x120 CLEAR
(Superseded to V471003000)

$1.49

$

In Stock, Qty 20+

0

2

Echo V490000510

CLIP, SPRING 5.2

$0.99

$

In Stock, only 1 left!

0

3

Echo V471002311

PIPE, FUEL 3x6x130 BLACK

$1.49

$

In Stock, Qty 9

0

4

Echo 13130056431

VENT ASSY

$7.49

$

In Stock, Qty 11

0

5

Echo V490001240

CLIP 6

$0.99

$

Usually ships in 2-4 days

0

6

Echo 13211501462

GROMMET

$1.49

$

In Stock, Qty 19

0

7

Echo 13011014530

PIPE, FUEL 3x6x135L

$2.99

$

In Stock, only 1 left!

0

8

Echo V475007720

TUBE, INSULATOR 8x9x80

$2.99

$

Usually ships in 2-4 days

0

9

Echo V491000460

CLIP

$0.99

$

Usually ships in 2-4 days

0

10

Echo 13211555931

GROMMET, FUEL

$2.49

$

In Stock, Qty 20+

0

11

Echo V186000510

CONNECTOR, PIPE

$1.99

$

In Stock, Qty 6

0

12

Echo 13011100530

CLIP 5.5

$0.99

$

In Stock, Qty 20+

0

13

Echo V470000841

PIPE, FUEL 3x5x180

$4.99

$

Usually ships in 2-4 days

0

14

Echo A369000001

FILTER, FUEL
(Superseded to A369000440)

$6.99

$

In Stock, Qty 20+

0

15

Echo A350002021

TANK, FUEL

$25.99

$

Usually ships in 2-4 days

0

16

Echo P021012211

CAP ASSY, FUEL

Note: Includes iitems 17-18

$5.99

$

In Stock, only 1 left!

0

17

Echo V107000190

GASKET, FUEL CAP

$1.49

$

In Stock, Qty 20+

0

18

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 10

0
