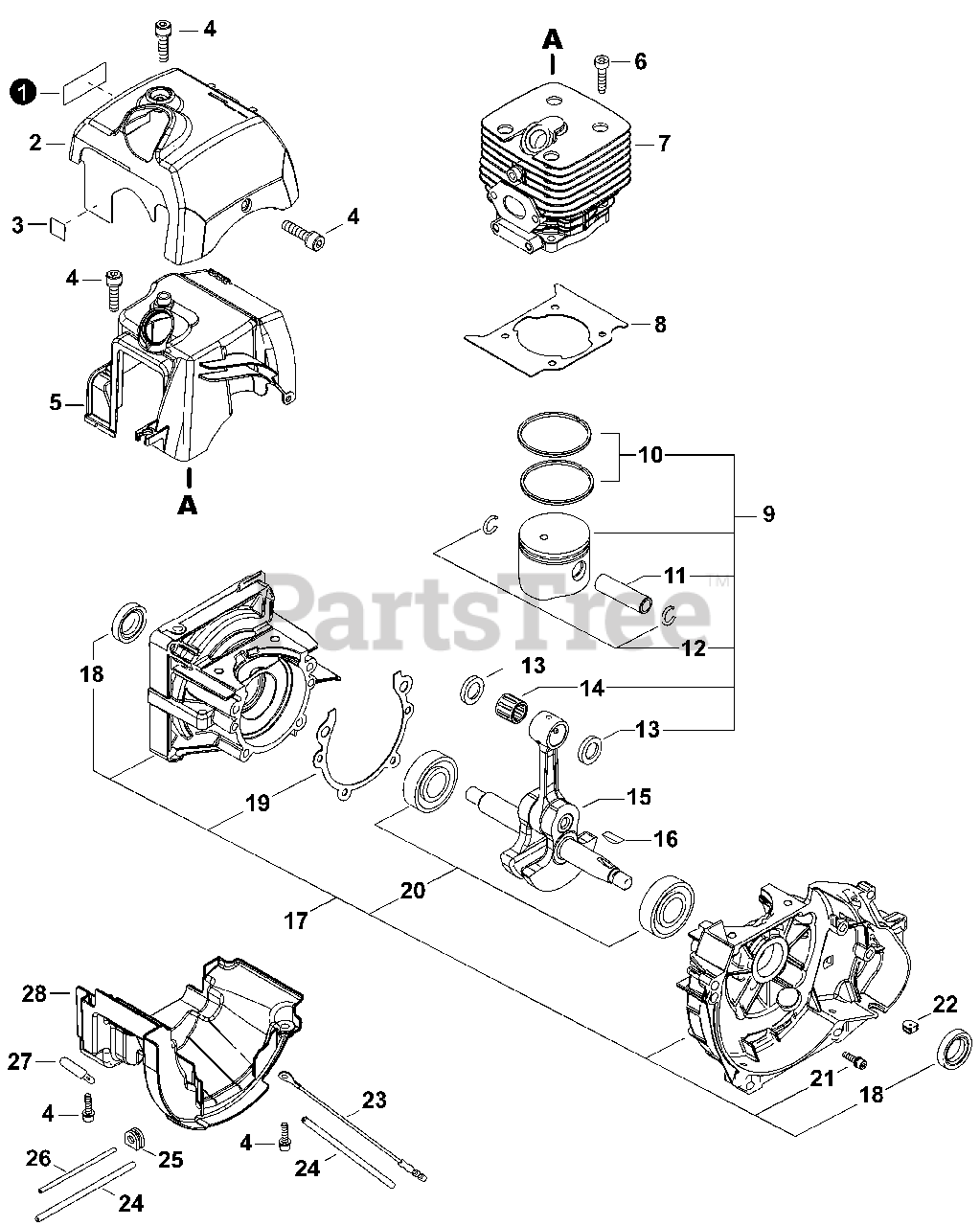

SRM-520 ES AR - Echo Brush Cutter (SN: U14926001001 - U14926999999) Engine Parts Diagram

Brush Cutter

Engine Parts Diagram

  • Title
1

Echo X547002410

LABEL - MODEL SRM-520ES

$2.49

$

Usually ships in 2-4 days

0

2

Echo A160002631

COVER, ENGINE

$10.99

$

Usually ships in 2-4 days

0

3

Echo X524001901

LABEL - PURGE PUMP

$2.49

$

Usually ships in 2-4 days

0

4

Echo V835000000

BOLT, TORX 5x16

$1.99

$

In Stock, only 4 left!

0

5

Echo A160002930

COVER, CYLINDER

$31.99

$

Usually ships in 2-4 days

0

6

Echo V805000210

BOLT, TORX 5x20

$1.49

$

In Stock, Qty 20+

0

7

Echo A130002191

CYLINDER

$177.99

$

Usually ships in 2-4 days

0

8

Echo V100000790

GASKET, CYLINDER

$4.49

$

Usually ships in 2-4 days

0

9

Echo P021050440

PISTON KIT

Note: Includes iitems 10-14

$75.99

$

Usually ships in 2-4 days

0

10

Echo A101000690

RING, PISTON

$7.49

$

Usually ships in 2-4 days

0

11

Echo V609000000

PIN, PISTON

$5.49

$

Usually ships in 2-4 days

0

12

Echo 10001532330

RING, SNAP

$0.99

$

In Stock, only 2 left!

0

13

Echo V308000100

WASHER, THRUST 11

$4.49

$

Usually ships in 2-4 days

0

14

Echo V556000000

BEARING, NEEDLE 11

$13.99

$

Usually ships in 2-4 days

0

15

Echo A011001350

CRANKSHAFT ASSY

$177.99

$

Usually ships in 2-4 days

0

16

Echo 10014212330

KEY, WOODRUFF

$1.99

$

In Stock, Qty 15

0

17

Echo P021047120

CRANKCASE SET

Note: Includes iitems 18-21

$199.99

$

Usually ships in 2-4 days

0

18

Echo 10021300310

SEAL, OIL

$5.49

$

In Stock, only 4 left!

0

19

Echo V102000260

GASKET, CRANKCASE

$2.49

$

Usually ships in 2-4 days

0

20

Echo 90081036202

BEARING, BALL 6202

$9.99

$

In Stock, Qty 6

0

21

Echo V805000180

BOLT, TORX 5x30

$1.49

$

In Stock, Qty 5

0

22

$0.99

$

Usually ships in 2-4 days

0

23

$4.49

$

Usually ships in 2-4 days

0

24

Echo V475008080

TUBE, INSULATOR 8x9x125

$4.49

$

Usually ships in 2-4 days

0

25

$0.99

$

In Stock, Qty 6

0

26

Echo V471000740

PIPE 3x6x160
(Superseded to V471000741)

$1.49

$

In Stock, only 3 left!

0

27

$1.49

$

In Stock, only 1 left!

0

28

Echo A209000740

PLATE, INSULATOR

$4.49

$

Usually ships in 2-4 days

0
