SRM-4605 U - Echo Brush Cutter (SN: S98426001001 - S98426999999) Exhaust, Fuel System Parts Diagram

Brush Cutter

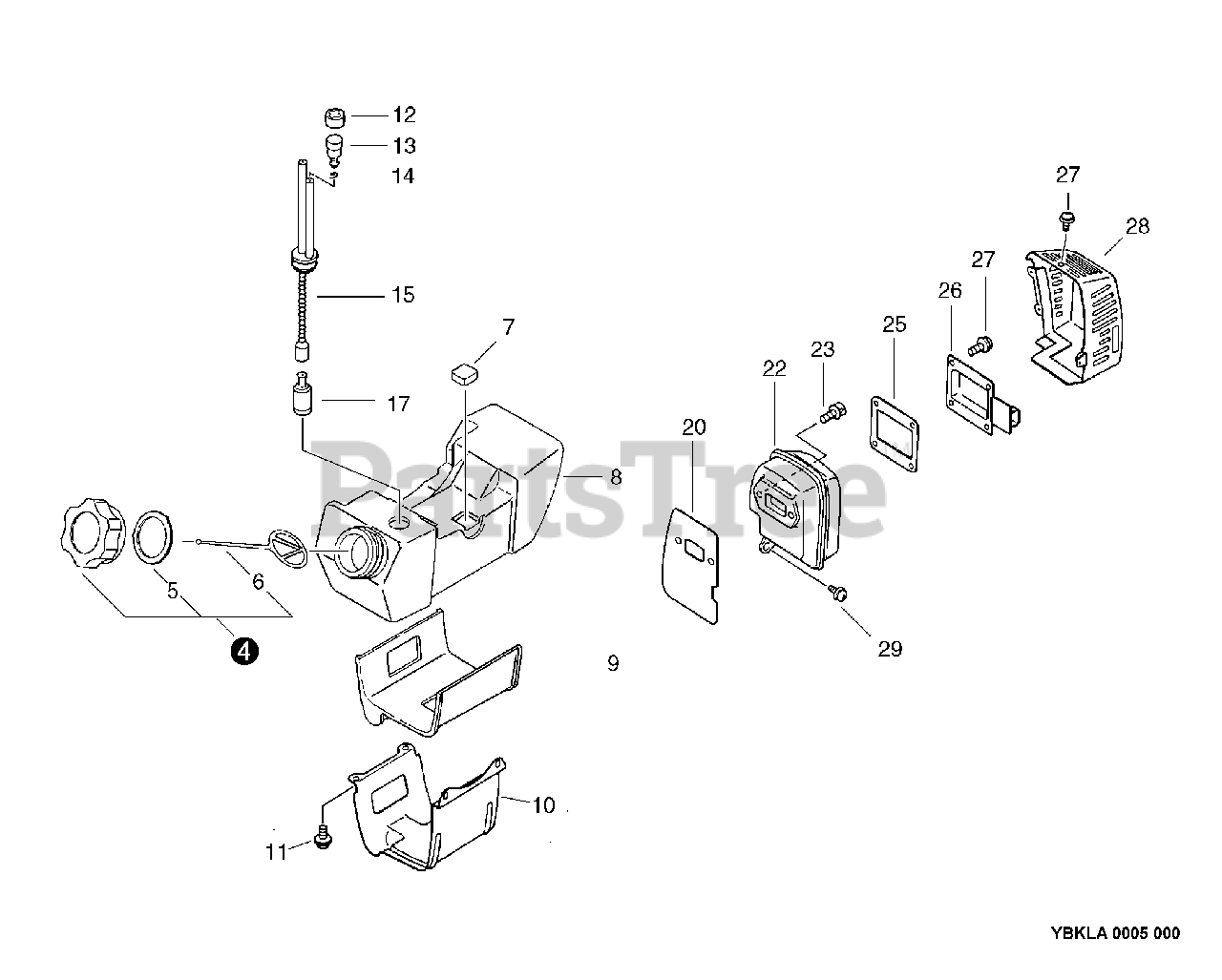

Exhaust, Fuel System Parts Diagram

  • Title

4

Echo 13100455530

CAP ASSY - ORANGE
(Superseded to P100006640)

Note: Includes ITEMS 5-6

$6.49

$

In Stock, only 2 left!

0

5

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

6

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0

7

Echo 13192311120

CUSHION

$1.49

$

Usually ships in 2-4 days

0

8

Echo 13101046931

TANK, FUEL

$25.99

$

In Stock, only 1 left!

0

9

Echo 13192443130

CUSHION

$4.49

$

Usually ships in 2-4 days

0

10

Echo 13191043130

BRACKET, FUEL TANK

$10.99

$

Usually ships in 2-4 days

0

11

Echo 90023805014

SCREW - 5X14

$0.99

$

In Stock, Qty 12

0

12

Echo 13132840630

COVER, VENT

$6.49

$

In Stock, Qty 10

0

13

Echo 13130056431

VENT, FUEL TANK

$7.49

$

In Stock, Qty 10

0

14

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

15

Echo 13201043130

FUEL PIPE ASSY
(Superseded to P021045540)

$10.99

$

Usually ships in 2-4 days

0

17

Echo 13120519832

FILTER, FUEL
(Superseded to A369000460)

$9.49

$

In Stock, Qty 20+

0

20

Echo 14551042231

GASKET, EXHAUST

$6.99

$

Usually ships in 2-4 days

0

22

Echo 14561047530

MUFFLER

$62.99

$

Usually ships in 2-4 days

0

23

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

25

Echo 14586643131

GASKET, EXHAUST

$2.49

$

Usually ships in 2-4 days

0

26

Echo 14586747530

GUIDE, EXHAUST

$5.49

$

Usually ships in 2-4 days

0

27

Echo 90023804010

SCREW - 4X10

$0.99

$

In Stock, Qty 15

0

28

Echo A320000890

GASKET, EXHAUST

$30.99

$

Usually ships in 2-4 days

0

29

Echo 90023805014

SCREW - 5X14

$0.99

$

In Stock, Qty 12

0
