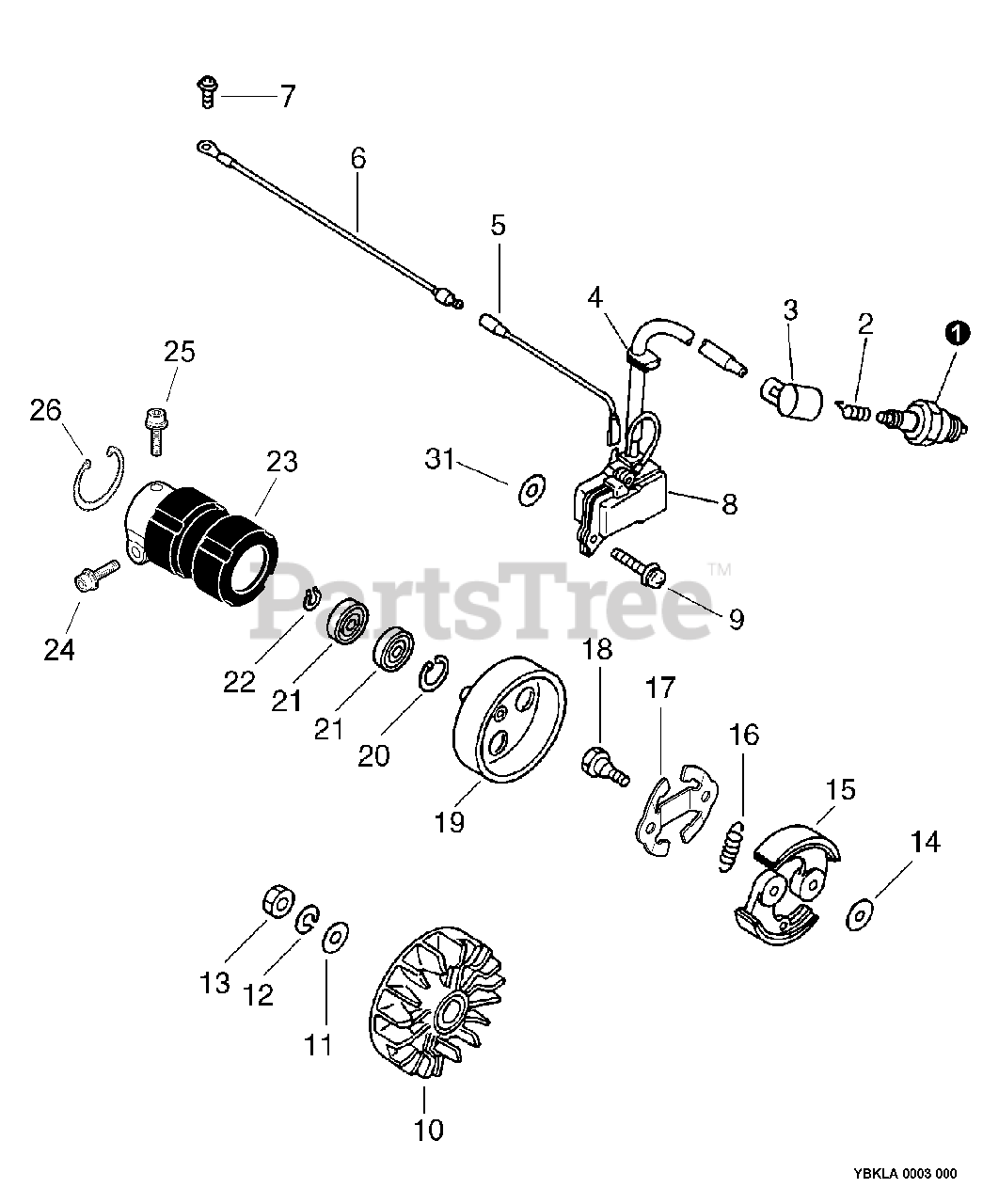

SRM-4605 U - Echo Brush Cutter (SN: S98426001001 - S98426999999) Clutch, Ignition Parts Diagram

Brush Cutter

Clutch, Ignition Parts Diagram

  • Title

1

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.49

$

In Stock, Qty 20+

0

2

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 13

0

3

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

4

Echo 15611240630

GROMMET

$1.49

$

In Stock, only 2 left!

0

5

Echo 16202142230

LEAD - IGNITION

$3.99

$

Usually ships in 2-4 days

0

6

Echo 15663543130

LEAD - GROUND

$1.99

$

In Stock, only 3 left!

0

7

Echo 90023805010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

8

Echo 15660112921

COIL, IGNITION

$148.99

$

Usually ships in 2-4 days

0

9

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, only 3 left!

0

10

Echo 15680142230

FLYWHEEL

$118.99

$

Usually ships in 2-4 days

0

11

Echo 90060000010

WASHER - 10

$0.99

$

In Stock, Qty 20+

0

12

Echo 90060500010

LOCKWASHER - 10

$0.99

$

In Stock, Qty 9

0

13

Echo 90050300010

NUT - 10

$1.49

$

Usually ships in 2-4 days

0

14

Echo 17504903920

WASHER

$1.49

$

In Stock, Qty 10

0

15

Echo A553000040

SHOE, CLUTCH

$12.99

$

Usually ships in 2-4 days

0

16

Echo A566000250

SPRING, CLUTCH
(Superseded to A566000260)

$2.99

$

Usually ships in 2-4 days

0

17

Echo V453000100

PLATE, SPRING

$10.99

$

Usually ships in 2-4 days

0

18

Echo A557000000

BOLT, CLUTCH

$7.49

$

In Stock, only 2 left!

0

19

Echo A556000181

DRUM, CLUTCH

$75.99

$

Usually ships in 2-4 days

0

20

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 15

0

21

Echo 90080706001

BEARING, BALL - 6001

$11.99

$

In Stock, only 2 left!

0

22

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

23

Echo V420000980

CUSHION

$26.99

$

Usually ships in 2-4 days

0

24

Echo 9111805028

SCREW - 5X28

$1.99

$

Usually ships in 2-4 days

0

25

Echo 9111805012

SCREW - 5X12

$1.49

$

In Stock, only 1 left!

0

26

Echo 90070200045

RING, RETAINING - 45

$1.99

$

In Stock, only 2 left!

0

31

Echo 90060000006

WASHER

$0.99

$

In Stock, Qty 16

0
