SRM-4605 U - Echo Brush Cutter (SN: S98426001001 - S98426999999) Carburetor -- WT-120B Parts Diagram

Brush Cutter

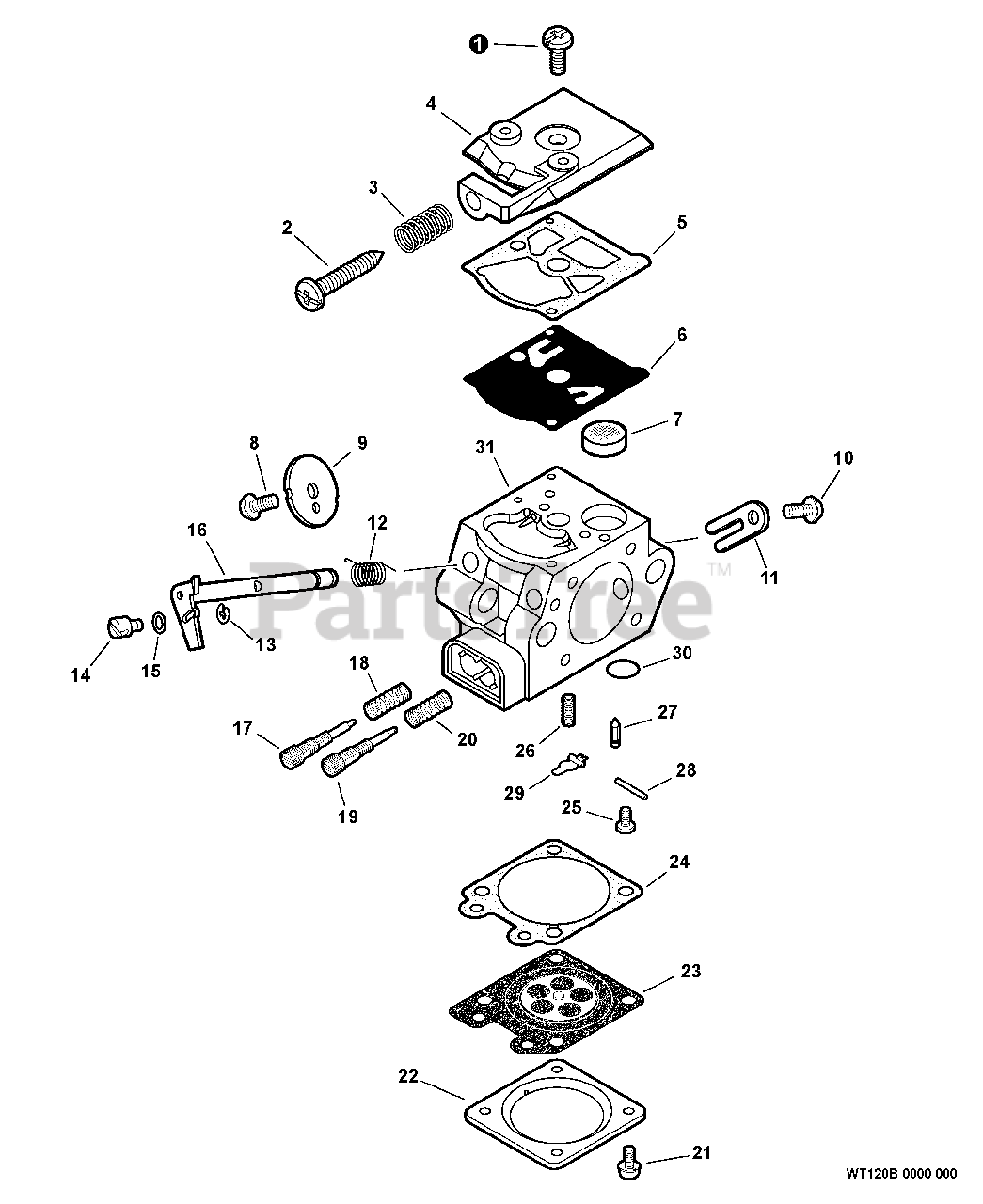

Carburetor -- WT-120B Parts Diagram

  • Title

Echo 12300047532

CARBURETOR WT-120B
(Superseded to 12300047533)

Note: Includes ITEMS 2-31

$211.99

$

Usually ships in 2-4 days

0

1

Echo 12311003930

SCREW, PUMP COVER

$0.99

$

In Stock, only 1 left!

0

2

Echo 12313404260

SCREW, IDLE ADJUST

$1.99

$

In Stock, Qty 10

0

3

Echo 12313306320

SPRING, IDLE ADJUST

$1.99

$

Usually ships in 2-4 days

0

4

Echo 12312424430

COVER, PUMP

$5.49

$

In Stock, only 1 left!

0

5

Echo 12312515030

GASKET, PUMP

$2.49

$

In Stock, Qty 9

0

6

Echo 12311215030

DIAPHRAGM, PUMP

$5.99

$

In Stock, only 2 left!

0

7

Echo 12312610631

STRAINER

$1.49

$

In Stock, Qty 17

0

$1.49

$

In Stock, Qty 13

0

9

Echo 12311610530

VALVE, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

10

$1.99

$

Usually ships in 2-4 days

0

11

Echo 12312703930

CLIP, THROTTLE SHAFT

$1.49

$

Usually ships in 2-4 days

0

12

Echo 12311347530

SPRING, THROTTLE RETURN

$4.99

$

Usually ships in 2-4 days

0

13

Echo 12317307930

RING, RETAINING

$1.49

$

In Stock, only 1 left!

0

14

$1.99

$

Usually ships in 2-4 days

0

15

$0.99

$

In Stock, only 1 left!

0

16

Echo 12311705020

SHAFT, THROTTLE

$5.49

$

Usually ships in 2-4 days

0

17

Echo 12311840430

NEEDLE - LOW SPEED

$4.49

$

Usually ships in 2-4 days

0

18

$3.49

$

Usually ships in 2-4 days

0

19

Echo 12312047530

NEEDLE - HIGH SPEED

$9.49

$

Usually ships in 2-4 days

0

20

$2.99

$

Usually ships in 2-4 days

0

21

$1.99

$

Usually ships in 2-4 days

0

22

Echo 12314203930

COVER, METERING

$3.99

$

In Stock, only 1 left!

0

23

Echo 12314103930

DIAPHRAGM, METERING

$13.99

$

In Stock, Qty 5

0

24

Echo 12314003930

GASKET, METERING

$1.99

$

In Stock, Qty 5

0

25

Echo 12313903930

SCREW, METERING LEVER PIN

$1.49

$

In Stock, only 1 left!

0

26

Echo 12312247530

SPRING, METERING LEVER

$2.49

$

Usually ships in 2-4 days

0

27

Echo 12313704260

VALVE, INLET NEEDLE

$3.99

$

Usually ships in 2-4 days

0

28

Echo 12313803930

PIN, METERING LEVER

$5.99

$

In Stock, only 4 left!

0

29

Echo 12312303930

LEVER, METERING
(Superseded to 12312338330)

$6.49

$

In Stock, only 1 left!

0

30

Echo 12314610631

PLUG, WELCH

$1.49

$

Usually ships in 2-4 days

0

31

------------------

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available
