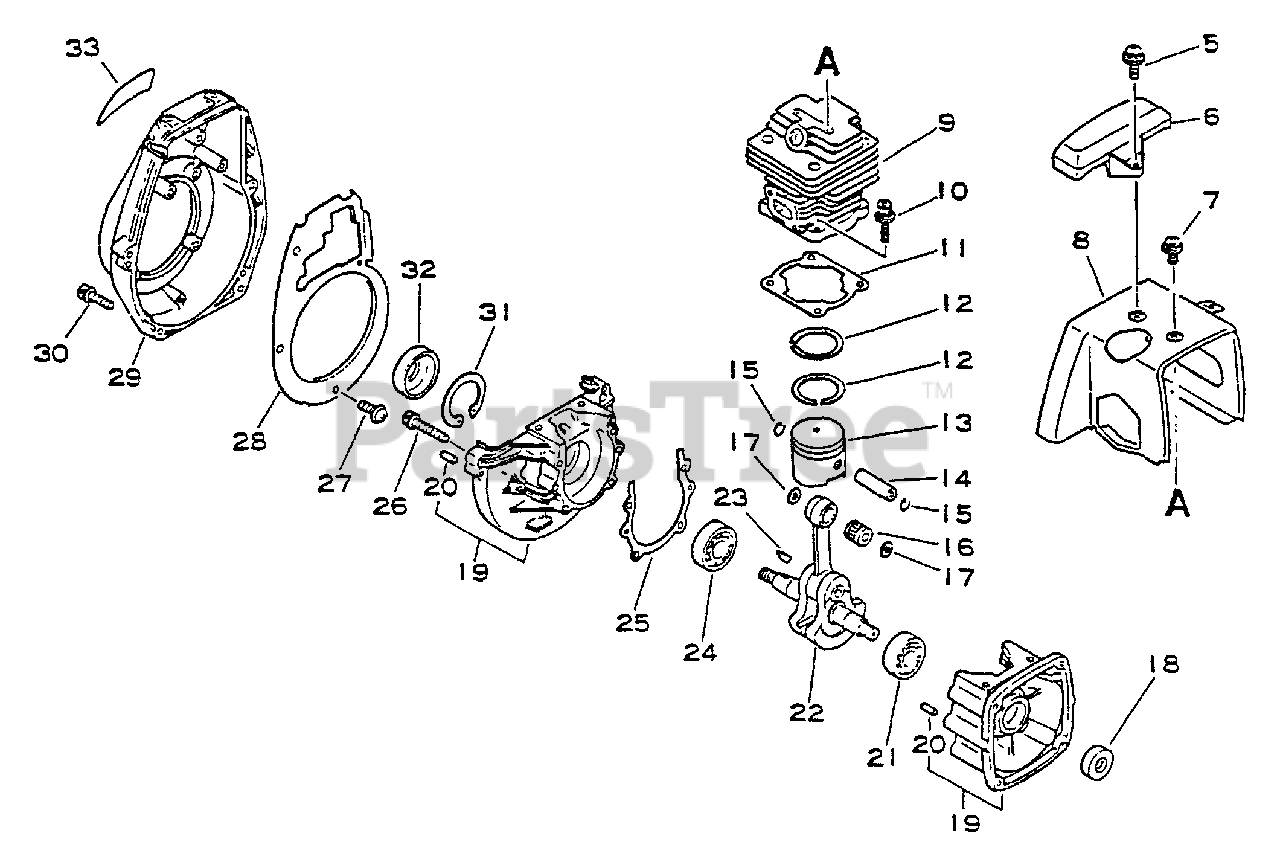

SRM-4600 - Echo Brush Cutter Engine, Crankcase, Fan Housing, Cover Parts Diagram

Brush Cutter

Engine, Crankcase, Fan Housing, Cover Parts Diagram

  • Title
5

Echo 90023805014

SCREW - 5X14

$0.99

$

In Stock, Qty 12

0

6

Echo 15990543130

GUARD - TOP

$11.99

$

Usually ships in 2-4 days

0

7

Echo 90023805010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

8

Echo 10151442230

COVER, ENGINE

$9.99

$

Usually ships in 2-4 days

0

9

Echo 10101143230

CYLINDER
(Superseded to 10101147530)

$153.99

$

Usually ships in 2-4 days

0

10

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

11

Echo 10101042231

GASKET, CYLINDER

$1.99

$

Usually ships in 2-4 days

0

12

Echo 10001143230

RING, PISTON

$8.49

$

Usually ships in 2-4 days

0

13

Echo 10001143230

RING, PISTON

$8.49

$

Usually ships in 2-4 days

0

14

Echo 10001300410

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

15

Echo 10001500120

RING, RETAINING - 8

$0.99

$

In Stock, Qty 11

0

16

Echo 10001227930

BEARING, NEEDLE
(Superseded to 10001212331)

$10.99

$

In Stock, Qty 7

0

17

Echo 10001417330

SPACER, PISTON
(Superseded to V307000050)

$4.99

$

In Stock, only 3 left!

0

18

Echo 10021227930

SEAL, OIL - 12

$5.49

$

Usually ships in 2-4 days

0

19

Echo 10020042230

CRANKCASE KIT

$212.99

$

Usually ships in 2-4 days

0

20

Echo 10021502830

PIN - LOCATING

$0.99

$

Usually ships in 2-4 days

0

21

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

22

Echo 10010043130

CRANKSHAFT ASSY

$221.99

$

Usually ships in 2-4 days

0

$1.99

$

In Stock, Qty 15

0

24

Echo 90081036202

BEARING, BALL - 6202

$9.99

$

In Stock, Qty 6

0

25

------------------

GASKET, CRANKCASE

$

$

Not available

26

Echo 90016205030

SCREW - 5X30

$0.99

$

In Stock, only 3 left!

0

27

Echo 90023804010

SCREW - 4X10

$0.99

$

In Stock, Qty 15

0

28

Echo 10153442230

SHIELD, FAN
(Superseded to 10153442231)

$10.99

$

Usually ships in 2-4 days

0

29

Echo 10151142230

COVER, FAN - ORANGE

$56.99

$

Usually ships in 2-4 days

0

30

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

31

Echo 90070200035

RING, RETAINING - 35

$1.99

$

In Stock, Qty 15

0

32

Echo 10021302830

SEAL, OIL

$6.49

$

In Stock, Qty 5

0

33

Echo 89013543130

LABEL - MODEL
(Superseded to Discontinued)

$

$

Not available

Echo 88900042231

GASKET KIT
(Superseded to Discontinued)

$

$

Not available
