SRM-4600 - Echo Brush Cutter Carburetor Parts Diagram

Brush Cutter

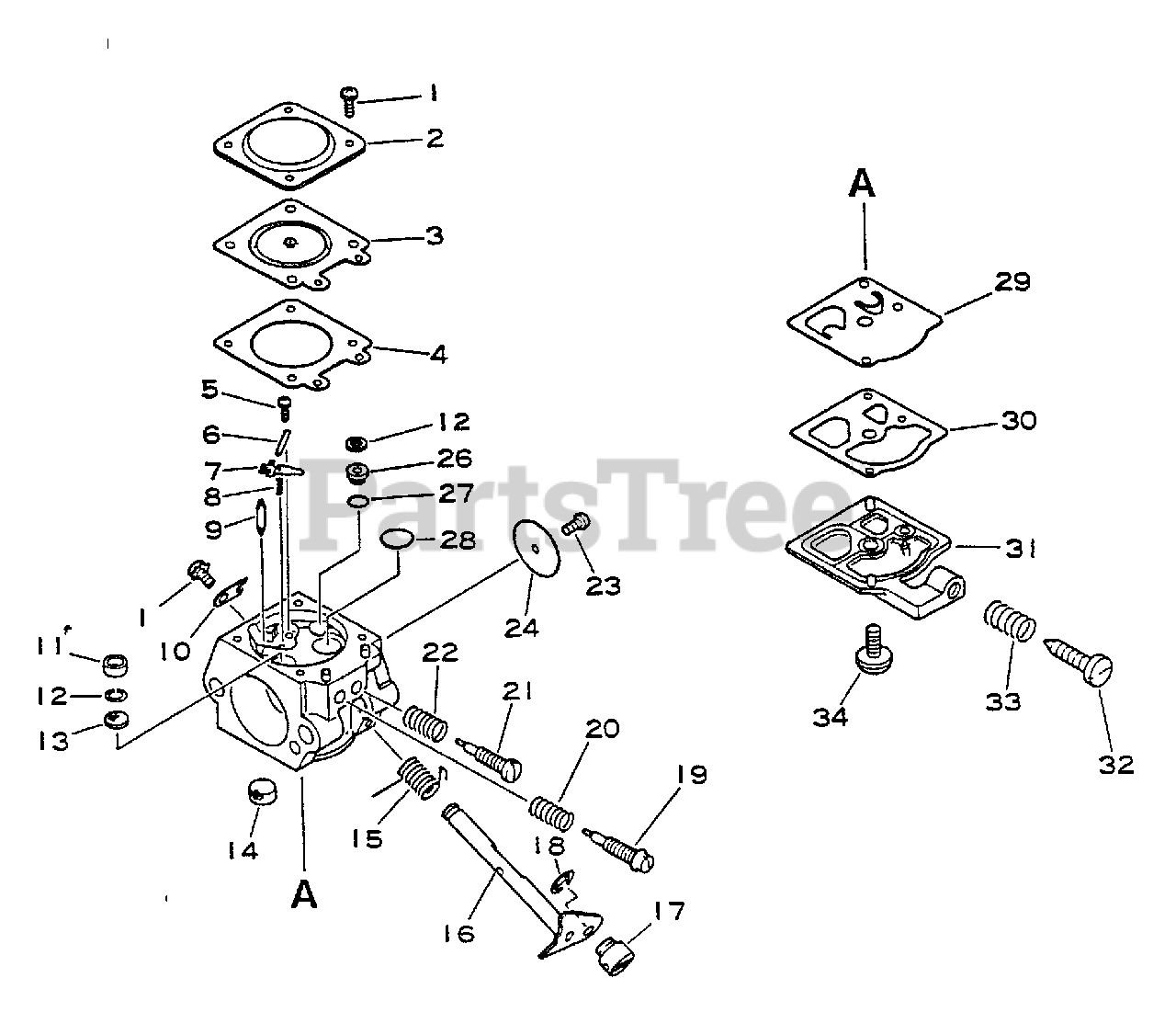

Carburetor Parts Diagram

  • Title

Echo 12300043230

CARBURETOR
(Superseded to 12300047531)

$211.99

$

Usually ships in 2-4 days

0

1

------------------

SCREW

Note: Use Carburetor Repair Kit P/N 12310043130

$

$

Not available

2

Echo 12314203930

COVER, METERING

$3.99

$

In Stock, only 1 left!

0

3

------------------

DIAPHRAGM, METERING

Note: Use Carburetor Repair Kit P/N 12310043130 Use Carburetor Diaphragm/Gasket Kit P/N 12310110530

$

$

Not available

4

------------------

GASKET, METERING

Note: Use Carburetor Repair Kit P/N 12310043130 Use Carburetor Diaphragm/Gasket Kit P/N 12310110530

$

$

Not available

5

------------------

SCREW

Note: Use Carburetor Repair Kit P/N 12310043130

$

$

Not available

6

------------------

PIN, METERING LEVER

Note: Use Carburetor Repair Kit P/N 12310043130

$

$

Not available

7

------------------

LEVER, METERING

Note: Use Carburetor Repair Kit P/N 12310043130

$

$

Not available

8

------------------

SPRING, METERING LEVER

Note: Use Carburetor Repair Kit P/N 12310043130

$

$

Not available

9

------------------

VALVE, INLET NEEDLE

Note: Use Carburetor Repair Kit P/N 12310043130

$

$

Not available

10

Echo 12312703930

CLIP, THROTTLE SHAFT

$1.49

$

Usually ships in 2-4 days

0

11

------------------

PLUG, WELCH

Note: Use Carburetor Repair Kit P/N 12310043130

$

$

Not available

12

Echo 12316910630

RING, RETAINING

$1.49

$

In Stock, Qty 5

0

13

Echo 12316810631

SCREEN, SPARK ARRESTOR

$1.49

$

In Stock, only 1 left!

0

14

------------------

STRAINER

Note: Use Carburetor Repair Kit P/N 12310043130

$

$

Not available

15

Echo 12311315030

SPRING, THROTTLE RETURN

$1.49

$

Usually ships in 2-4 days

0

16

Echo 12311705020

SHAFT, THROTTLE

$5.49

$

Usually ships in 2-4 days

0

17

Echo 12317204320

SWIVEL

$1.99

$

Usually ships in 2-4 days

0

18

Echo 12312710630

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

19

Echo 12312004420

NEEDLE - HIGH SPEED

$4.49

$

Usually ships in 2-4 days

0

20

------------------

SPRING, NEEDLE ADJUST

Note: Use Carburetor Repair Kit P/N 12310043130

$

$

Not available

21

Echo 12311824430

NEEDLE - LOW SPEED

$3.99

$

Usually ships in 2-4 days

0

22

------------------

SPRING, NEEDLE ADJUST

Note: Use Carburetor Repair Kit P/N 12310043130

$

$

Not available

23

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 13

0

24

Echo 12311610530

VALVE, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

26

Echo 12318443230

JET, MAIN

$3.49

$

Usually ships in 2-4 days

0

27

Echo 12318305960

O-RING

$1.99

$

In Stock, Qty 5

0

28

------------------

PLUG, WELCH

Note: Use Carburetor Repair Kit P/N 12310043130

$

$

Not available

30

------------------

GASKET, PUMP

Note: Use Carburetor Repair Kit P/N 12310043130 Use Carburetor Diaphragm/Gasket Kit P/N 12310110530

$

$

Not available

29

------------------

DIAPHRAGM, PUMP

Note: Use Carburetor Repair Kit P/N 12310043130 Use Carburetor Diaphragm/Gasket Kit P/N 12310110530

$

$

Not available

31

Echo 12312409520

COVER, PUMP

$11.99

$

Usually ships in 2-4 days

0

32

Echo 12313404260

SCREW, IDLE ADJUST

$1.99

$

In Stock, Qty 11

0

33

Echo 12313304260

SPRING, IDLE ADJUST

$6.49

$

In Stock, Qty 16

0

34

Echo 12311003930

SCREW, PUMP COVER

$0.99

$

In Stock, only 1 left!

0

Echo 12310043130

REPAIR KIT

$15.99

$

Usually ships in 2-4 days

0

Echo 12310110530

DIAPHRAGM/GASKET KIT

$7.49

$

In Stock, only 4 left!

0
