SRM-4510 - Echo Brush Cutter (SN: U23720001001 - U23720999999) Gear Case Parts Diagram

Brush Cutter

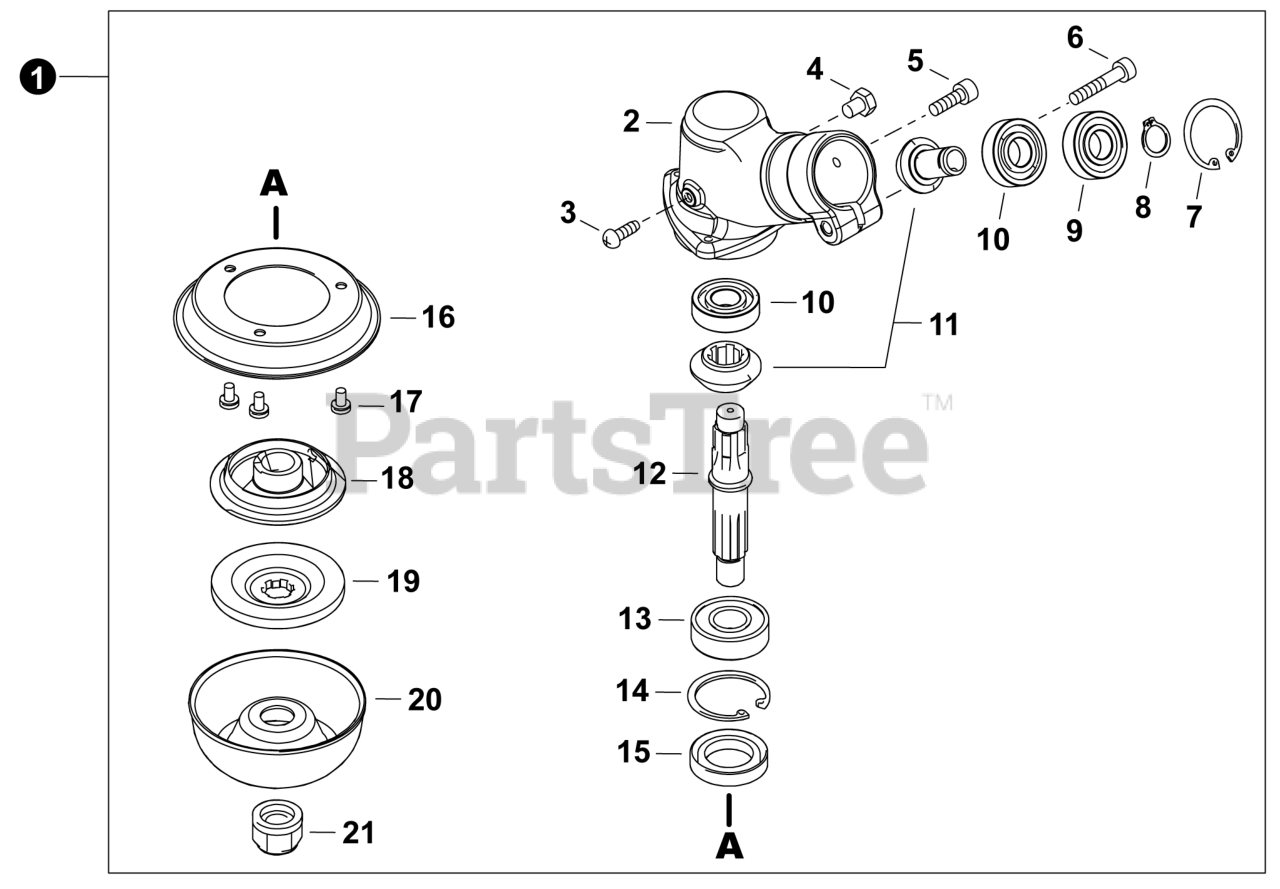

Gear Case Parts Diagram

  • Title

1

Echo P022055470

GEAR CASE ASSY

Note: Includes Items 2-21

$284.99

$

Usually ships in 2-4 days

0

2

Echo P002000000

CASE, GEAR

$106.99

$

Usually ships in 2-4 days

0

3

Echo P022055460

BOLT 4x10

$2.49

$

Usually ships in 2-4 days

0

4

Echo P022055060

BOLT 6x8

$1.49

$

Usually ships in 2-4 days

0

5

Echo P022055070

BOLT 5x14

$2.49

$

Usually ships in 2-4 days

0

6

Echo P022055080

BOLT 6x30

$3.99

$

Usually ships in 2-4 days

0

7

Echo P022055010

RING, SNAP 28

$4.49

$

Usually ships in 2-4 days

0

8

Echo P022055000

RING, SNAP 12

$3.49

$

Usually ships in 2-4 days

0

9

Echo 90080306001

BEARING, BALL 6001Z

$16.99

$

Usually ships in 2-4 days

0

10

Echo 90080036001

BEARING, BALL 6001

$9.49

$

In Stock, only 3 left!

0

11

Echo P100008580

GEAR SET, BEVEL

$83.99

$

Usually ships in 2-4 days

0

12

Echo P022054930

SHAFT, GEAR

$47.99

$

Usually ships in 2-4 days

0

13

Echo P022055680

BEARING, BALL

$17.99

$

Usually ships in 2-4 days

0

14

Echo P022055020

RING, SNAP 35

$4.49

$

Usually ships in 2-4 days

0

15

Echo P022055030

SEAL, OIL

$6.49

$

Usually ships in 2-4 days

0

16

Echo P022054970

COVER, GEAR CASE

$6.99

$

Usually ships in 2-4 days

0

17

Echo P022055050

BOLT 4x8

$1.49

$

Usually ships in 2-4 days

0

18

Echo P022054940

PLATE, ADAPTER - UPPER

$25.99

$

Usually ships in 2-4 days

0

19

Echo P022054950

PLATE, ADAPTOR - LOWER

$20.99

$

Usually ships in 2-4 days

0

20

Echo P022054960

ADAPTER, SAW

$10.99

$

Usually ships in 2-4 days

0

21

Echo P022055040

NUT 12

$7.99

$

Usually ships in 2-4 days

0
