SRM-4300 R - Echo Brush Cutter (SN: S51220001001 - S51220999999) Carburetor Parts Diagram

Brush Cutter

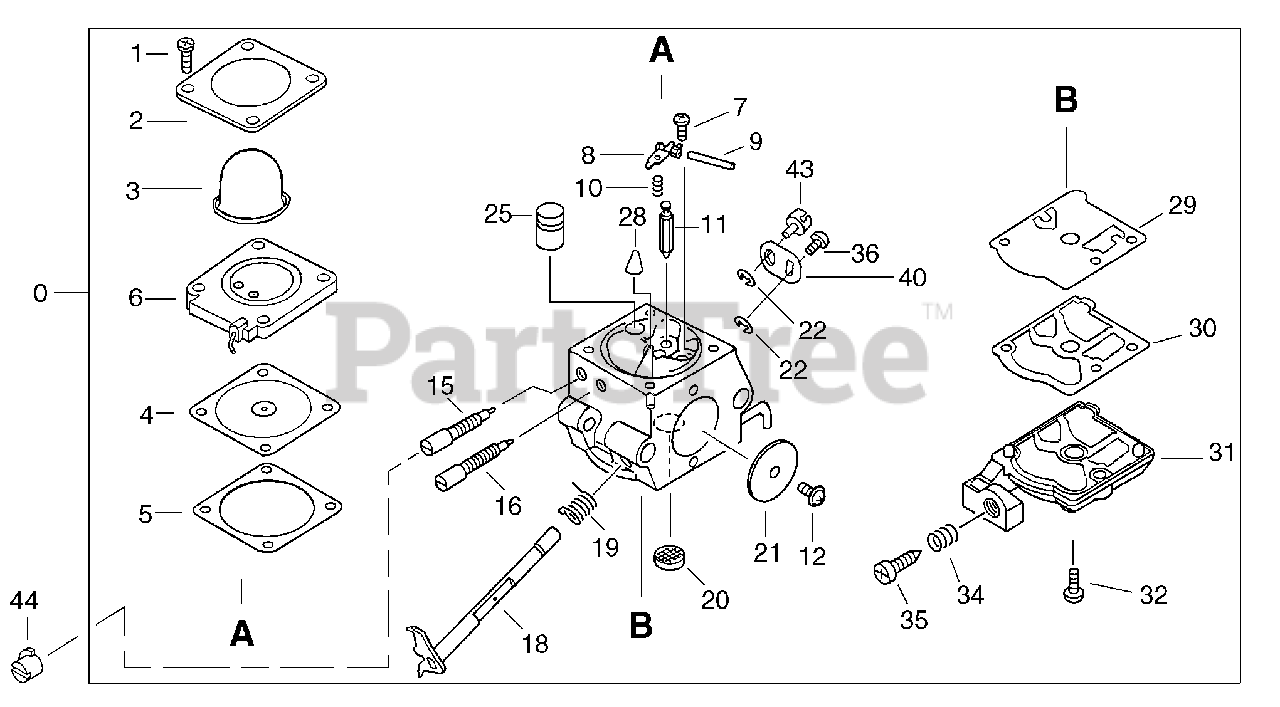

Carburetor Parts Diagram

  • Title

Echo A021000681

CARBURETOR C1Q-K73A
(Superseded to A021000682)

$63.99

$

Usually ships in 2-4 days

0

1

Echo P005000980

SCREW, RETAINER

$0.99

$

In Stock, Qty 20+

0

2

Echo P005000620

RETAINER, PURGE BULB

$2.49

$

In Stock, Qty 17

0

3

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$6.99

$

In Stock, Qty 20+

0

4

Echo 12534107360

DIAPHRAGM, METERING
(Superseded to P005003560)

$20.99

$

Usually ships in 2-4 days

0

5

Echo P005001140

GASKET, METERING

$2.49

$

Usually ships in 2-4 days

0

6

Echo P005001170

PURGE BASE ASSY

$36.99

$

Usually ships in 2-4 days

0

7

Echo 12533913930

SCREW, METERING LEVER PIN

$1.49

$

In Stock, only 4 left!

0

8

Echo 12532308260

LEVER, METERING

$6.49

$

Usually ships in 2-4 days

0

9

Echo 12533813930

PIN, METERING LEVER

$2.99

$

Usually ships in 2-4 days

0

10

$1.49

$

Usually ships in 2-4 days

0

11

Echo 12533708260

VALVE, INLET NEEDLE

$16.99

$

Usually ships in 2-4 days

0

12

$1.49

$

Usually ships in 2-4 days

0

15

Echo P005001160

NEEDLE - HIGH SPEED

$4.49

$

Usually ships in 2-4 days

0

16

Echo P005001150

NEEDLE - LOW SPEED

$4.49

$

Usually ships in 2-4 days

0

18

Echo P005001090

THROTTLE VALVE ASSY

$10.99

$

Usually ships in 2-4 days

0

19

Echo P005000790

SPRING, THROTTLE RETURN

$4.49

$

Usually ships in 2-4 days

0

20

Echo P005000860

STRAINER

$2.49

$

Usually ships in 2-4 days

0

21

Echo P005000810

VALVE, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

22

Echo 12532713930

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

25

Echo P005001080

NOZZLE, CHECK VALVE

$8.99

$

Usually ships in 2-4 days

0

28

Echo 12534551030

PLUG, WELCH

$1.99

$

Usually ships in 2-4 days

0

29

Echo P005001110

DIAPHRAGM, PUMP

$4.99

$

Usually ships in 2-4 days

0

30

Echo 12532508360

GASKET, PUMP

$3.49

$

Usually ships in 2-4 days

0

31

Echo P005001340

COVER, PUMP

$13.99

$

Usually ships in 2-4 days

0

32

Echo 12531013930

SCREW, PUMP COVER

$0.99

$

In Stock, only 1 left!

0

34

Echo 12533306960

SPRING, IDLE ADJUST

$1.49

$

In Stock, Qty 10

0

35

Echo 12534408560

SCREW, IDLE ADJUST

$3.99

$

Usually ships in 2-4 days

0

36

$0.99

$

In Stock, Qty 6

0

40

Echo P005001100

LEVER, THROTTLE

$5.49

$

Usually ships in 2-4 days

0

43

$4.49

$

Usually ships in 2-4 days

0

44

Echo A259000040

CAP, LIMITER

$3.99

$

Usually ships in 2-4 days

0
