SRM-4300 F - Echo Brush Cutter (SN: S51220001001 - S51220999999) Fuel System Parts Diagram

Brush Cutter

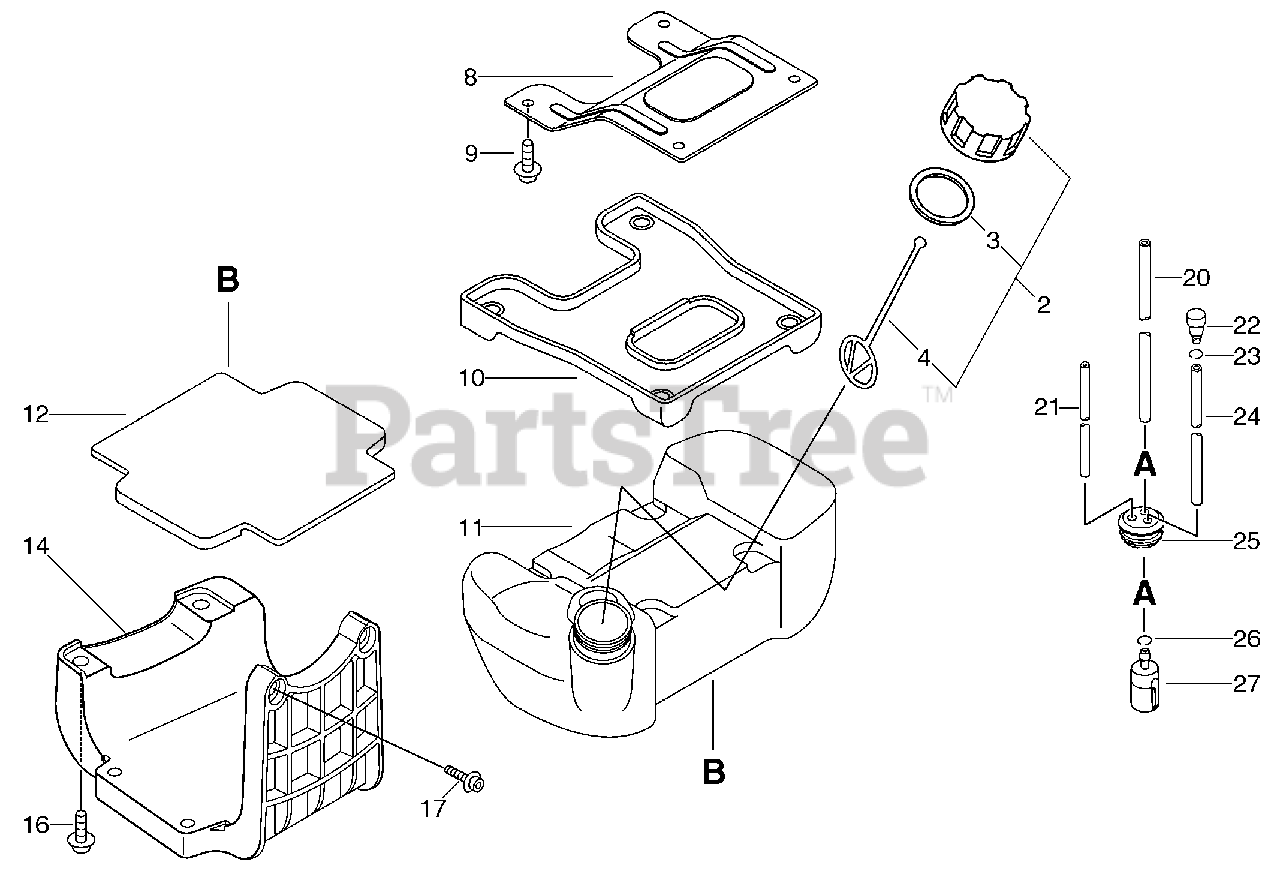

Fuel System Parts Diagram

  • Title

2

Echo 13100455530

CAP ASSY - ORANGE
(Superseded to P100006640)

$6.49

$

In Stock, only 2 left!

0

3

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

4

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0

8

Echo A393000030

BRACKET, FUEL TANK

$9.49

$

Usually ships in 2-4 days

0

9

Echo 90010605012

SCREW - 5X12

$1.49

$

In Stock, Qty 20+

0

10

Echo A390000000

CUSHION, TANK - UPPER

$11.99

$

Usually ships in 2-4 days

0

11

Echo A350000131

TANK, FUEL

$40.99

$

Usually ships in 2-4 days

0

12

Echo A390000010

CUSHION, TANK - LOWER

$8.49

$

In Stock, only 1 left!

0

14

Echo A393000050

GUARD, FUEL TANK

$24.99

$

Usually ships in 2-4 days

0

16

Echo 90010605020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

17

Echo 90010605025

SCREW - 5X25

$0.99

$

Usually ships in 2-4 days

0

20

Echo 13201035430

PIPE - 3X6X230 -- BLACK
(Superseded to 13201035431)

$7.99

$

Usually ships in 2-4 days

0

21

Echo 13201006460

PIPE - 3X6X110 -- CLEAR

$3.49

$

In Stock, Qty 16

0

22

Echo 13130056431

VENT, FUEL TANK

$7.49

$

In Stock, Qty 6

0

23

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

24

Echo 13201202960

PIPE - 3X6X120 -- BLACK
(Superseded to 13201202961)

$4.49

$

Usually ships in 2-4 days

0

25

Echo 13211555930

GROMMET
(Superseded to 13211555931)

$2.49

$

In Stock, Qty 18

0

26

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

27

Echo A369000000

FILTER, FUEL
(Superseded to A369000001)

$6.99

$

In Stock, Qty 20+

0
