SRM-4300 F - Echo Brush Cutter (SN: S51220001001 - S51220999999) Crankcase, Engine Cover Parts Diagram

Brush Cutter

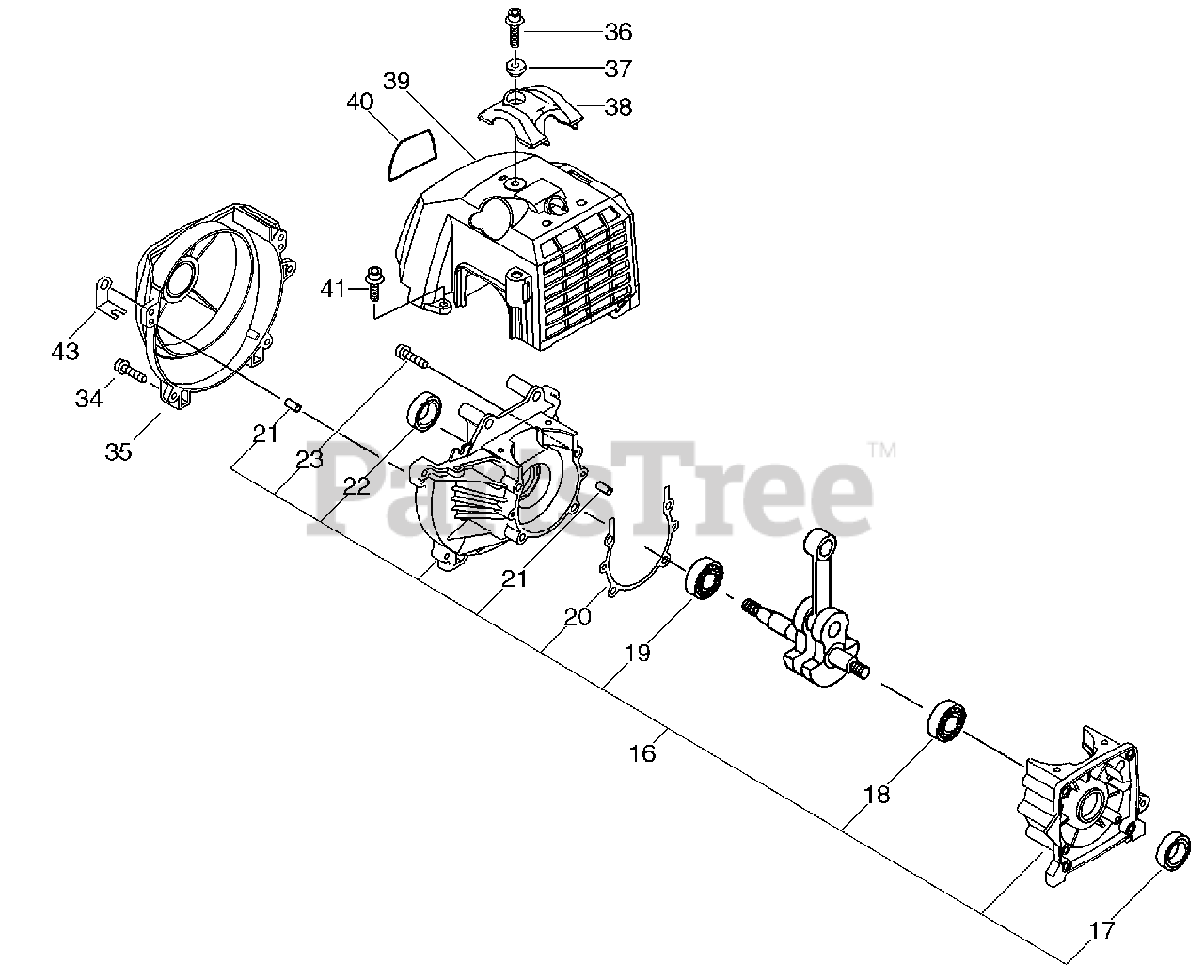

Crankcase, Engine Cover Parts Diagram

  • Title

16

Echo P021002471

CRANKCASE KIT

$196.99

$

Usually ships in 2-4 days

0

17

Echo 10021305530

SEAL, OIL

$6.49

$

In Stock, Qty 10

0

18

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

19

Echo 90081036202

BEARING, BALL - 6202

$9.99

$

In Stock, Qty 6

0

20

Echo V102000001

GASKET, CRANKCASE

$1.49

$

Usually ships in 2-4 days

0

21

Echo 10021503930

PIN - LOCATING
(Superseded to 90033040080)

$0.99

$

In Stock, Qty 20+

0

22

Echo 10021300310

SEAL, OIL

$5.49

$

In Stock, only 4 left!

0

23

Echo 90016205035

SCREW - 5X35

$1.49

$

In Stock, Qty 6

0

34

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

35

Echo A172000350

COVER, FAN

$43.99

$

Usually ships in 2-4 days

0

36

Echo 90010605020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

37

Echo V353000020

COLLAR - 5

$1.49

$

In Stock, Qty 20+

0

38

Echo A162000020

GUARD - TOP

$9.49

$

In Stock, only 2 left!

0

39

Echo A160000241

COVER, ENGINE - ORANGE
(Superseded to A160000242)

$43.99

$

Usually ships in 2-4 days

0

40

Echo X547001040

LABEL - MODEL SRM-4300

$4.49

$

Usually ships in 2-4 days

0

41

Echo 90010605012

SCREW - 5X12

$1.49

$

In Stock, Qty 20+

0

43

Echo G186000010

HOLDER, CABLE

$1.99

$

Usually ships in 2-4 days

0
