Echo SRM-4300 F - Echo Brush Cutter (SN: C30326001001 - C30326999999) Starter Parts Lookup with Diagrams

1

Echo A052000011

PAWL ASSY, STARTER

Note: Includes Items 2-4

$13.99

$

Usually ships in 2-4 days

2

Echo P022002100

E-RING 4

$0.99

$

In Stock, Qty 6

3

Echo 17723440630

SPRING, RETURN

$3.49

$

In Stock, only 2 left!

4

Echo A514000120

PAWL, STARTER

(Superseded to P022003120) 

$3.49

$

In Stock, Qty 8

5

Echo 90050200008

NUT 8x1.25

$0.99

$

In Stock, only 2 left!

6

Echo A051000070

STARTER ASSY, RECOIL

Note: Includes Items 7-13

$85.99

$

Usually ships in 2-4 days

7

Echo 17723606910

SCREW

$3.49

$

Usually ships in 2-4 days

8

Echo P022002080

REEL, ROPE

$15.99

$

Usually ships in 2-4 days

9

Echo 17722606310

ROPE, STARTER 3.8x1150

$5.99

$

In Stock, only 4 left!

10

Echo 17722006310

SPRING, RECOIL

$15.99

$

Usually ships in 2-4 days

11

Echo 17722827030

GRIP, STARTER

$5.99

$

In Stock, Qty 20+

12

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 14

13

Echo P022043270

CASE, STARTER

$30.99

$

Usually ships in 2-4 days

14

Echo 90010605020

BOLT 5x20

$1.49

$

In Stock, Qty 20+

15

Echo X502000900

LABEL - RECOIL STARTER

$2.49

$

In Stock, only 1 left!

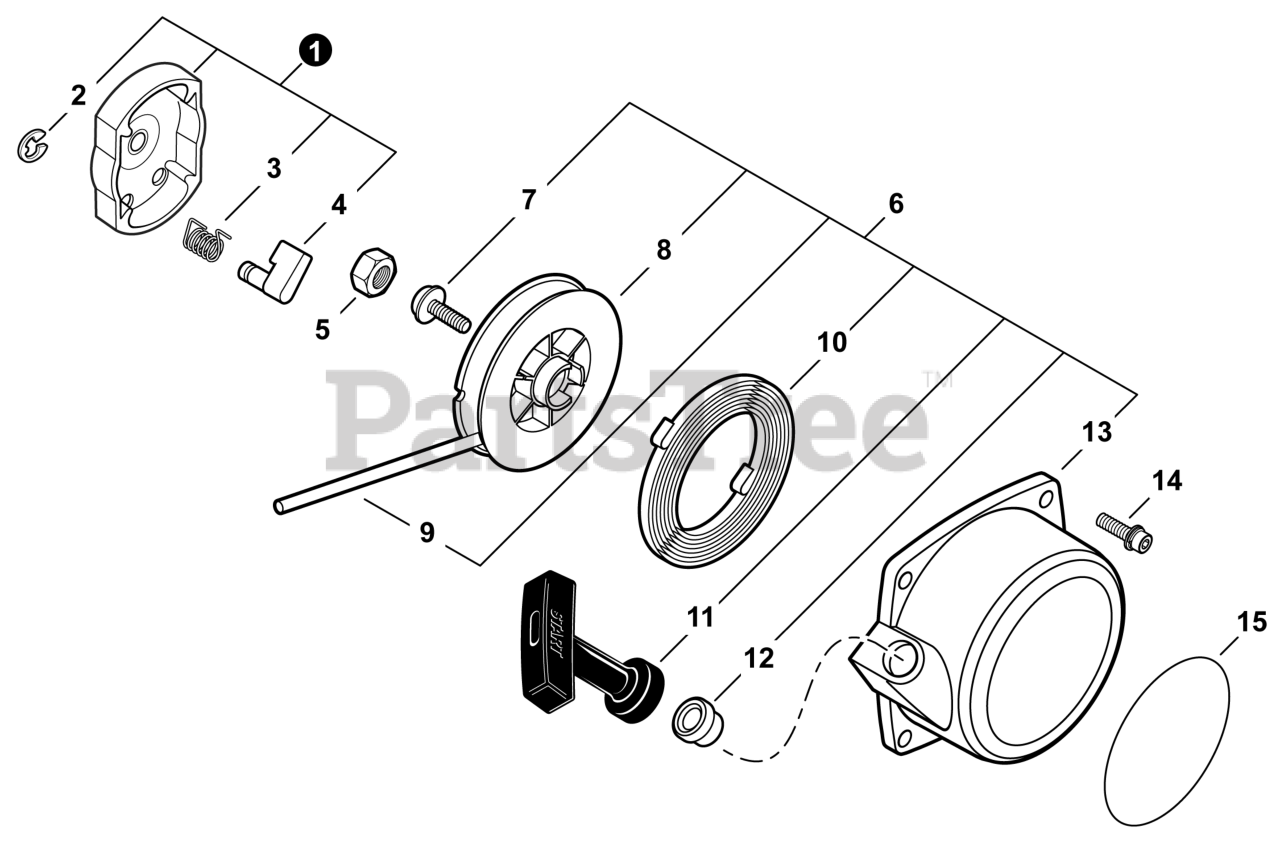

SRM-4300 F - Echo Brush Cutter (SN: C30326001001 - C30326999999) Starter Parts Diagram

Starter Parts Diagram

Echo A052000011

Echo P022002100

Echo 17723440630

Echo A514000120

Echo 90050200008

Echo A051000070

Echo 17723606910

Echo P022002080

Echo 17722606310

Echo 17722006310

Echo 17722827030

Echo 17722742030

Echo P022043270

Echo 90010605020

Echo X502000900
