SRM-4300 F - Echo Brush Cutter (SN: C30326001001 - C30326999999) Fuel System Parts Diagram

Brush Cutter

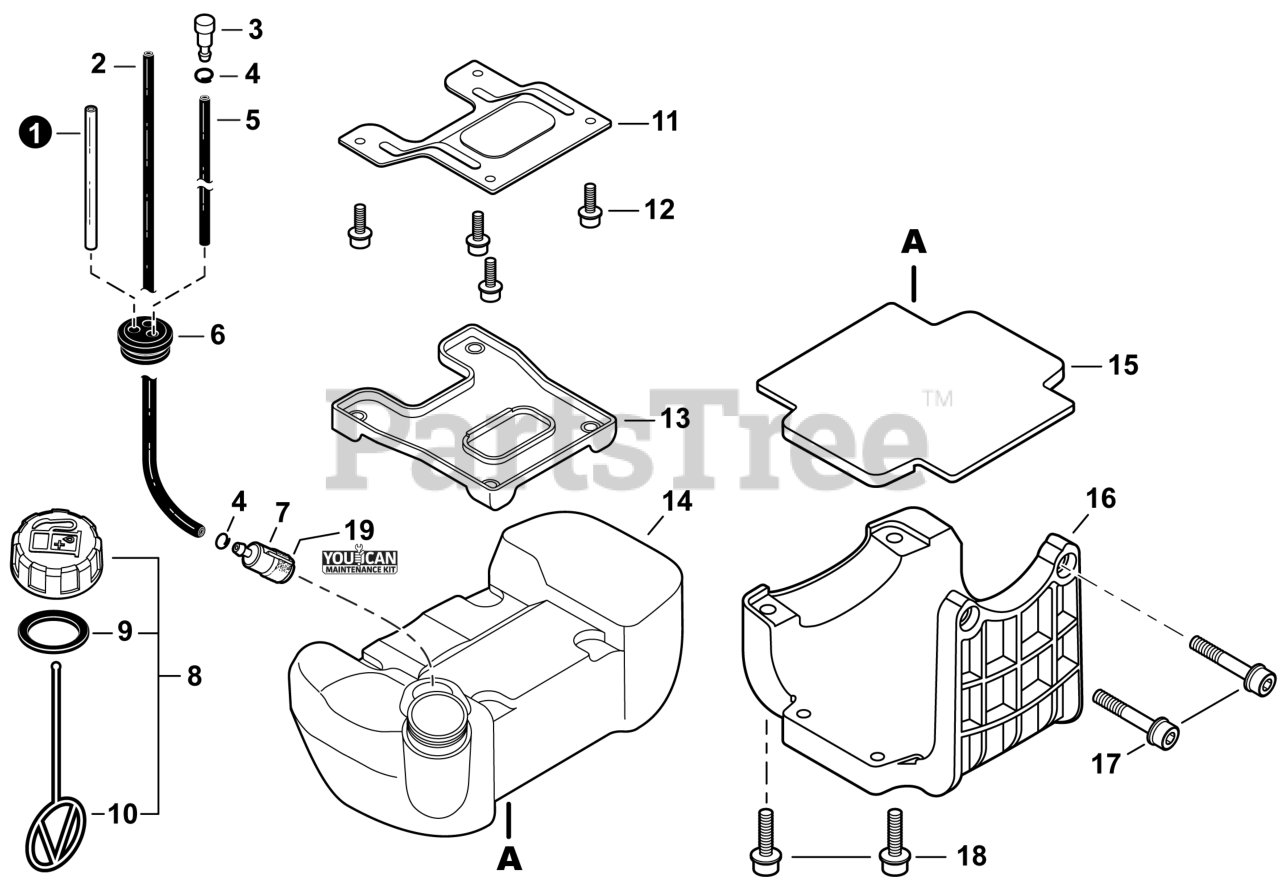

Fuel System Parts Diagram

  • Title

1

Echo V471000630

PIPE, FUEL 3x6x120 CLEAR
(Superseded to V471003000)

$1.49

$

In Stock, Qty 20+

0

2

Echo 13201035431

PIPE, FUEL 3x6x230

$7.99

$

Usually ships in 2-4 days

0

3

Echo 13130056431

VENT ASSY

$7.49

$

In Stock, Qty 10

0

4

Echo V490001230

CLIP 6.5 MM

$0.99

$

In Stock, Qty 20+

0

5

Echo 13201202961

PIPE, FUEL 3x6x120 BLACK
(Superseded to V471005820)

$1.49

$

In Stock, only 1 left!

0

6

Echo 13211555931

GROMMET, FUEL

$2.49

$

In Stock, Qty 18

0

7

Echo A369000440

FILTER, FUEL

Note: Included in Tune-up Kit

$6.99

$

In Stock, Qty 20+

0

8

Echo P100006640

CAP ASSY, FUEL

Note: Includes Items 9-10

$6.49

$

In Stock, only 2 left!

0

9

Echo V107000190

GASKET, FUEL CAP

$1.49

$

In Stock, Qty 20+

0

10

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 20+

0

11

Echo A393000030

BRACKET, FUEL TANK

$9.49

$

Usually ships in 2-4 days

0

12

Echo 90010605012

BOLT 5x12

$1.49

$

In Stock, Qty 20+

0

13

Echo A390000000

CUSHION, UPPER

$11.99

$

Usually ships in 2-4 days

0

14

Echo A350000131

TANK, FUEL

$40.99

$

Usually ships in 2-4 days

0

15

Echo A390000010

CUSHION, FUEL TANK

$8.49

$

In Stock, only 1 left!

0

16

Echo A393000050

GUARD, FUEL TANK

$24.99

$

Usually ships in 2-4 days

0

17

Echo 90010605025

BOLT 5x25

$0.99

$

Usually ships in 2-4 days

0

18

Echo 90010605020

BOLT 5x20

$1.49

$

In Stock, Qty 20+

0

19

Echo 91000Y

TUNE-UP KIT - YOUCAN?

Note: See maintenance kits

$15.99

$

Usually ships in 2-4 days
