SRM-4300 F - Echo Brush Cutter (SN: C30326001001 - C30326999999) Engine Parts Diagram

Brush Cutter

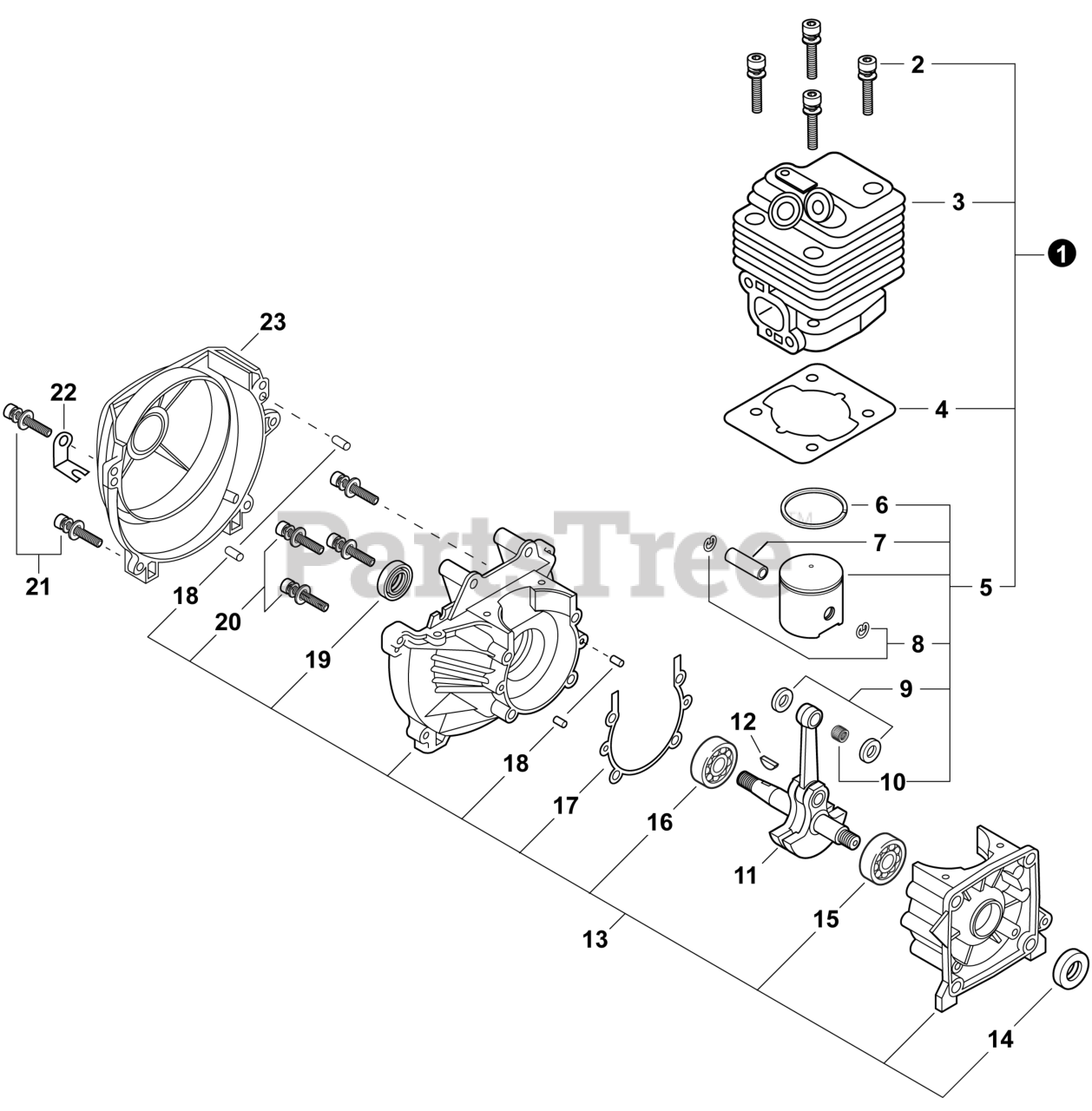

Engine Parts Diagram

  • Title

1

Echo P021039020

REPAIR KIT, ENGINE

Note: Includes Items 2-10

$173.99

$

Usually ships in 2-4 days

0

2

Echo 90016205020

BOLT 5x20

$1.49

$

In Stock, Qty 20+

0

3

Echo A130000870

CYLINDER

$159.99

$

Usually ships in 2-4 days

0

4

Echo V100000040

GASKET, CYLINDER

$3.49

$

Usually ships in 2-4 days

0

5

Echo P021014262

PISTON KIT

Note: Includes Items 6-10

$78.99

$

In Stock, only 1 left!

0

6

Echo 10001110530

RING, PISTON

$7.49

$

In Stock, Qty 16

0

7

Echo V608000000

PIN, PISTON 10

$5.99

$

Usually ships in 2-4 days

0

8

Echo V580000010

RING, SNAP 10

$0.99

$

Usually ships in 2-4 days

0

9

Echo V307000530

WASHER

$1.99

$

Usually ships in 2-4 days

0

10

Echo V555000010

BEARING, NEEDLE 10

$10.99

$

In Stock, Qty 7

0

11

Echo A011000120

CRANKSHAFT ASSY

$217.99

$

In Stock, only 1 left!

0

12

Echo 90032303014

KEY, WOODRUFF 3x14

$1.49

$

In Stock, only 2 left!

0

13

Echo P021002471

CRANKCASE KIT

Note: Includes Items 14-20

$196.99

$

Usually ships in 2-4 days

0

14

Echo 10021305530

SEAL, OIL 12

$6.49

$

In Stock, only 2 left!

0

15

Echo 90081036202

BEARING, BALL 6202

$9.99

$

In Stock, Qty 6

0

16

Echo 9403536201

BEARING, BALL 6201

$7.99

$

In Stock, Qty 9

0

17

Echo V102000001

GASKET, CRANKCASE

$1.49

$

Usually ships in 2-4 days

0

18

Echo 90033040080

PIN, LOCATING 4x8

$0.99

$

In Stock, Qty 20+

0

19

Echo 10021300310

SEAL, OIL

$5.49

$

In Stock, only 4 left!

0

20

Echo 90016205035

BOLT M5x35

$1.49

$

In Stock, Qty 6

0

21

Echo 90016205020

BOLT 5x20

$1.49

$

In Stock, Qty 20+

0

22

Echo G186000010

HOLDER, CABLE

$1.99

$

Usually ships in 2-4 days

0

23

Echo A172000350

COVER, FAN

$43.99

$

Usually ships in 2-4 days

0
