SRM-4300 F - Echo Brush Cutter (SN: C30326001001 - C30326999999) Clutch Parts Diagram

Brush Cutter

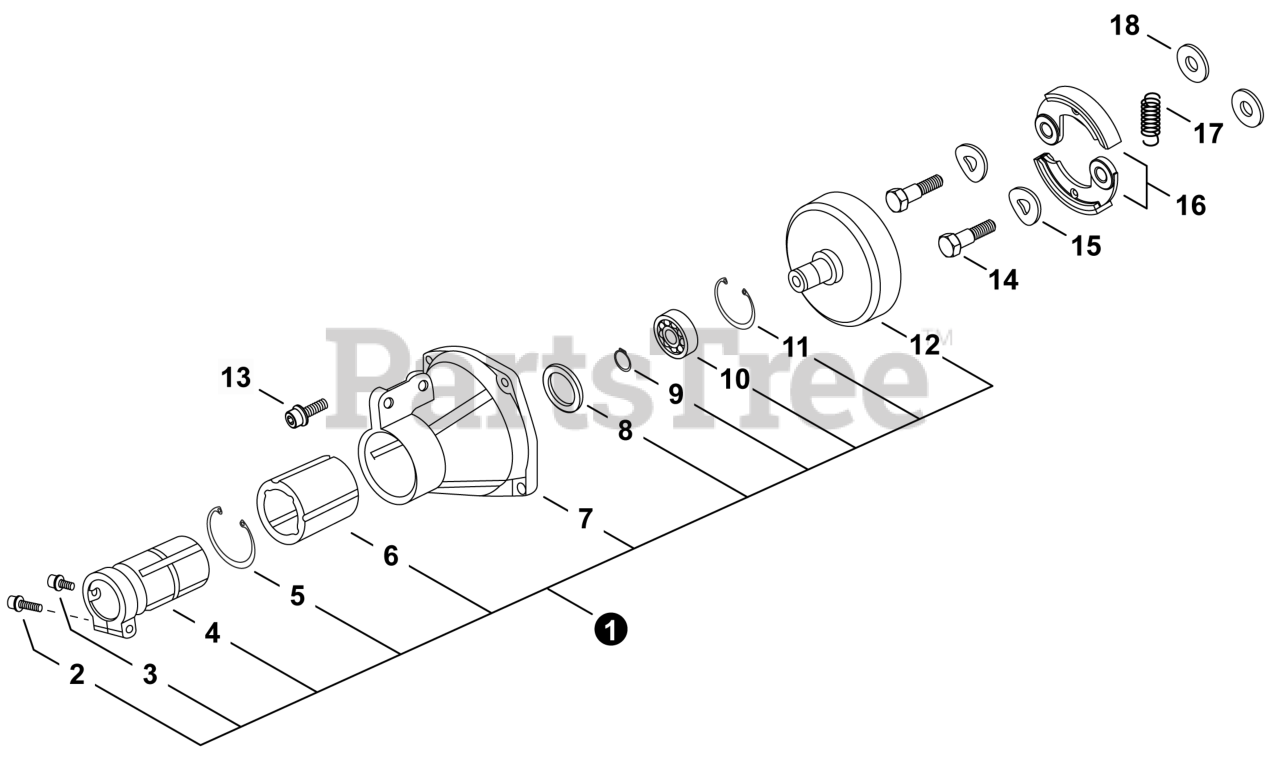

Clutch Parts Diagram

  • Title
1

Echo P022037010

CASE ASSY, CLUTCH

Note: Includes Items 2-12

$172.99

$

Usually ships in 2-4 days

0

2

Echo 9111805025

BOLT 5x25

$0.99

$

Usually ships in 2-4 days

0

3

Echo 9111805012

BOLT 5x12

$1.49

$

In Stock, only 1 left!

0

4

$68.99

$

Usually ships in 2-4 days

0

5

Echo P022006950

RING, SNAP

$3.99

$

Usually ships in 2-4 days

0

6

Echo P022006940

CUSHION

$9.99

$

Usually ships in 2-4 days

0

7

Echo P022006870

CASE, CLUTCH

$48.99

$

Usually ships in 2-4 days

0

8

$4.99

$

Usually ships in 2-4 days

0

9

Echo P022006920

RING, SNAP

$0.99

$

Usually ships in 2-4 days

0

10

Echo 90080406002

BEARING, BALL

$13.99

$

Usually ships in 2-4 days

0

11

Echo P022006900

RING, SNAP

$1.49

$

Usually ships in 2-4 days

0

12

Echo P022006910

DRUM, CLUTCH

$50.99

$

Usually ships in 2-4 days

0

13

$1.49

$

Usually ships in 2-4 days

0

14

Echo 17504606230

BOLT, CLUTCH

$9.49

$

Usually ships in 2-4 days

0

15

Echo 17504803920

WASHER 10.2x18x1.0

$1.49

$

In Stock, Qty 5

0

16

Echo P021006200

CLUTCH SHOE SET

$53.99

$

Usually ships in 2-4 days

0

17

Echo 17501842230

SPRING, CLUTCH

$2.49

$

Usually ships in 2-4 days

0

18

Echo 17504903920

WASHER 8.2x17x1.6

$1.49

$

In Stock, Qty 10

0
