SRM-420 ES/U - Echo Brush Cutter (SN: S89837001001 - S89837999999) Control Handle S/N: S89837001001 - S89837010910 Parts Diagram

Brush Cutter

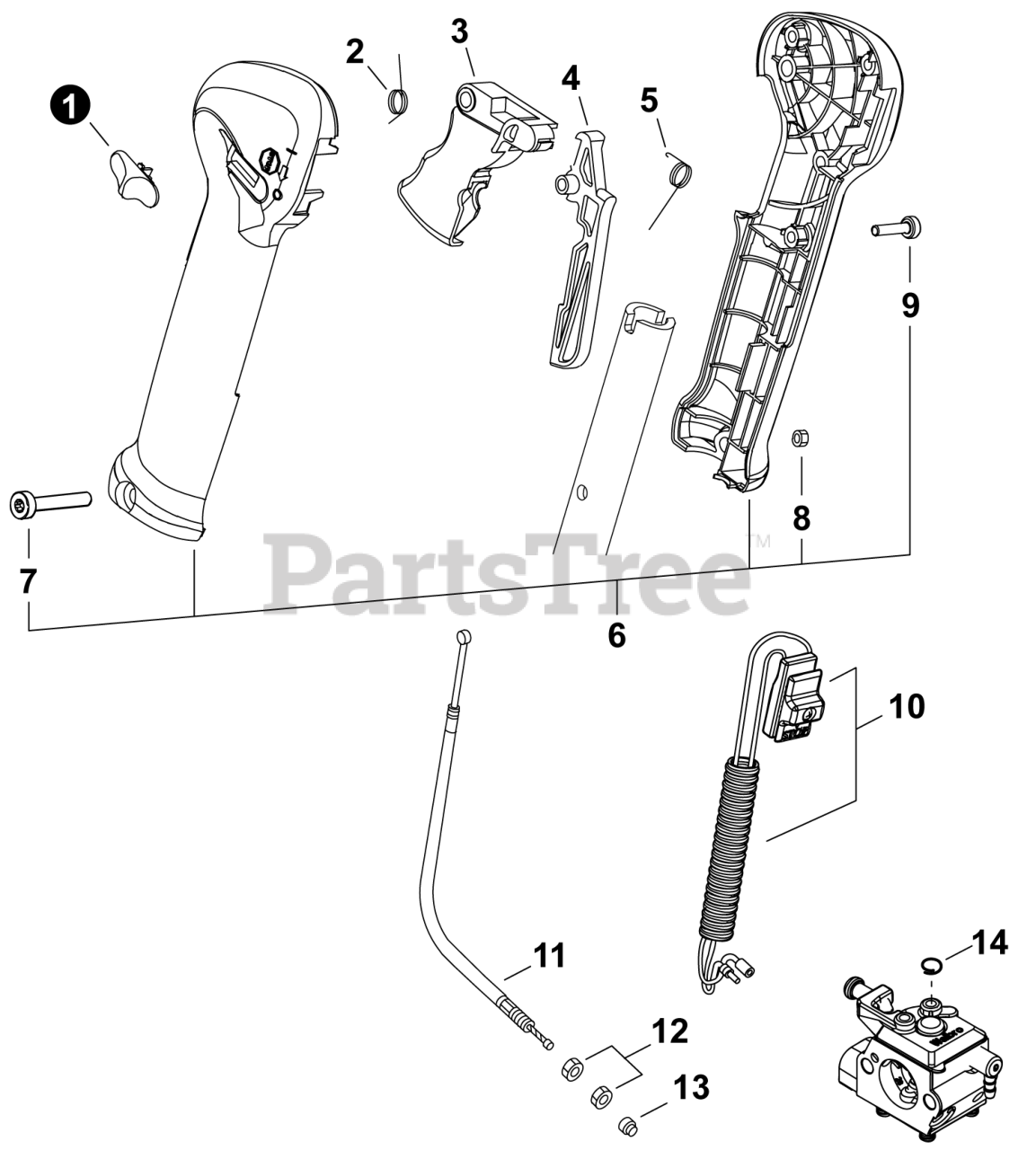

Control Handle S/N: S89837001001 - S89837010910 Parts Diagram

  • Title

1

Echo C463000020

LATCH, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

2

Echo V452000360

SPRING, TORSION

$1.99

$

Usually ships in 2-4 days

0

3

Echo C450000270

CONTROL, THROTTLE

$7.49

$

Usually ships in 2-4 days

0

4

Echo C460000111

LOCKOUT, THROTTLE

$4.49

$

Usually ships in 2-4 days

0

5

Echo V452000350

SPRING, TORSION

$2.49

$

Usually ships in 2-4 days

0

6

Echo P021016210

GRIP SET, THROTTLE

Note: Includes iitems 7-9

$

$

Currently unavailable

7

Echo V805000050

BOLT, TORX 5×30

$0.99

$

In Stock, Qty 20+

0

8

Echo 90050000005

NUT M5

$0.99

$

In Stock, Qty 20+

0

9

Echo V804000010

BOLT, TORX 4×16

$0.99

$

In Stock, Qty 7

0

10

Echo P021041470

SWITCH ASSY, ON-OFF

$

$

Currently unavailable

11

Echo V430004241

CABLE, THROTTLE

$

$

Currently unavailable

12

Echo 90050200006

NUT M6

$0.99

$

In Stock, Qty 8

0

13

Echo V494000080

CAP, DUST

$1.99

$

Usually ships in 2-4 days

0

14

Echo V490000440

CLIP

$2.49

$

Usually ships in 2-4 days

0
