SRM-420 ES/U - Echo Brush Cutter (SN: S89837001001 - S89837999999) Clutch case Parts Diagram

Brush Cutter

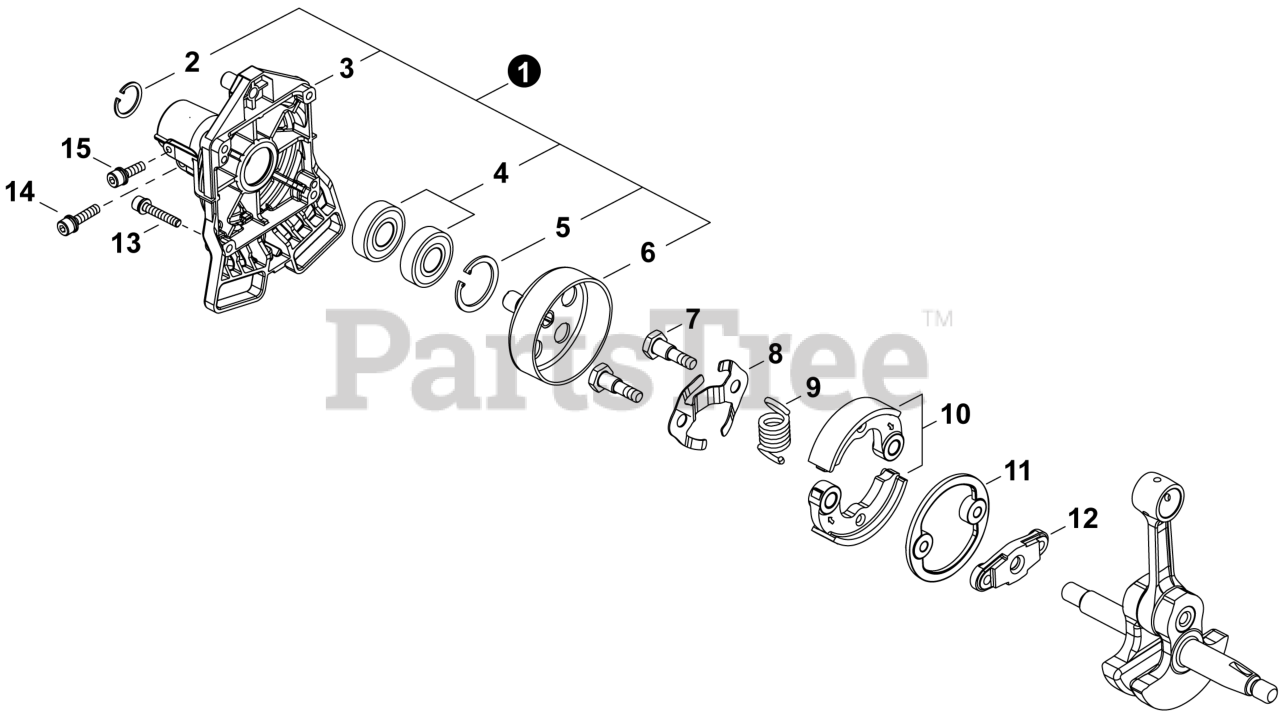

Clutch case Parts Diagram

  • Title

1

Echo P100006110

CASE ASSY, CLUTCH

Note: Includes iitems 2-6

$135.99

$

Usually ships in 2-4 days

0

2

Echo 90070100012

RING, SNAP 12

$0.99

$

In Stock, Qty 20+

0

3

Echo A570000291

CASE, CLUTCH

$68.99

$

Usually ships in 2-4 days

0

4

Echo 9401846001

BEARING, BALL

$7.99

$

Usually ships in 2-4 days

0

5

Echo 90070200028

RING, SNAP 28

$1.49

$

In Stock, Qty 13

0

6

Echo A556001540

DRUM, CLUTCH

$39.99

$

Usually ships in 2-4 days

0

7

Echo A557000190

BOLT, CLUTCH

$3.99

$

Usually ships in 2-4 days

0

8

Echo V453000230

SPRING, FLAT

$7.49

$

Usually ships in 2-4 days

0

9

Echo A566000230

SPRING, CLUTCH

$2.49

$

Usually ships in 2-4 days

0

10

Echo P100000080

CLUTCH SHOE SET

$59.99

$

Usually ships in 2-4 days

0

11

Echo V376001980

SPACER

$14.99

$

Usually ships in 2-4 days

0

12

Echo A552000390

HUB, CLUTCH

$16.99

$

Usually ships in 2-4 days

0

13

Echo V805000170

BOLT, TORX 5×25

$0.99

$

In Stock, Qty 20+

0

14

Echo V805000160

BOLT, TORX 5×20

$0.99

$

In Stock, Qty 20+

0

15

Echo V805000130

BOLT, TORX 5×10

$0.99

$

In Stock, Qty 20+

0
