SRM-420 ES/U - Echo Brush Cutter (SN: S89837001001 - S89837999999) Carburetor WT-1046 Parts Diagram

Brush Cutter

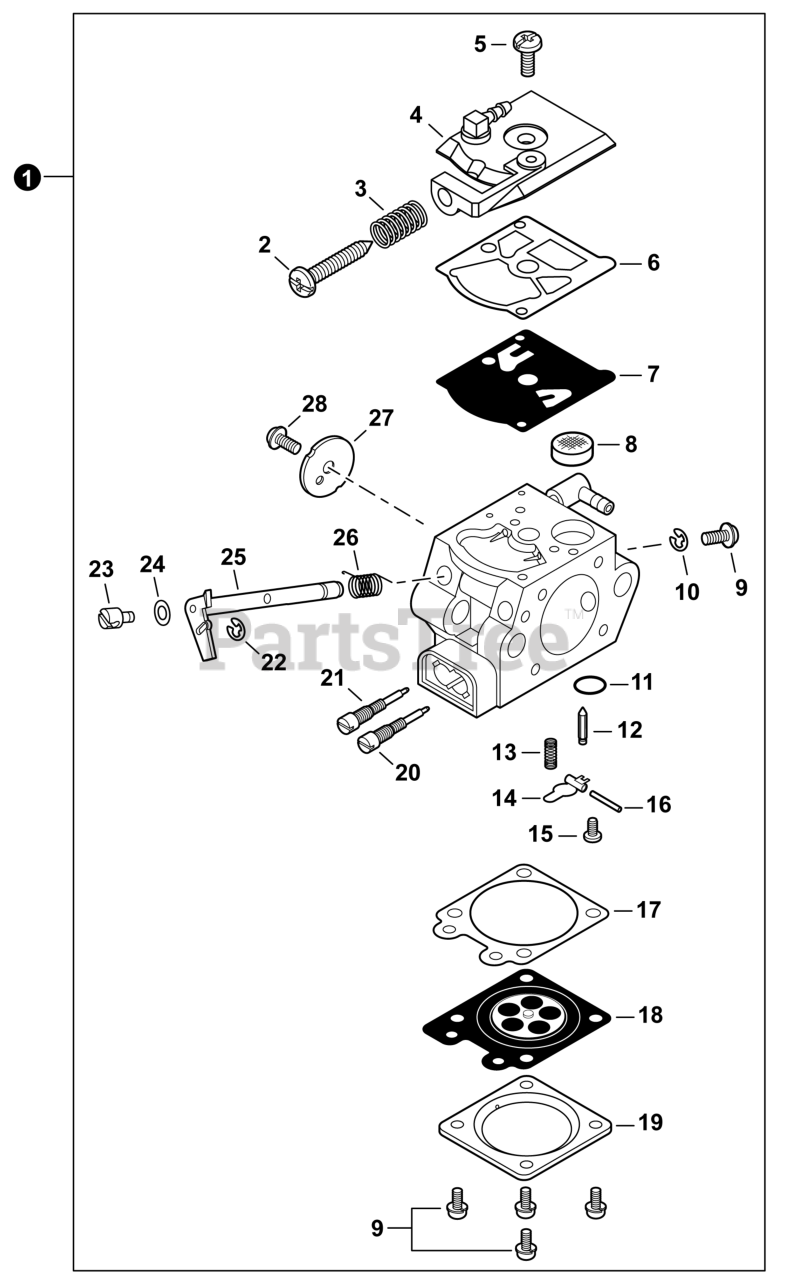

Carburetor WT-1046 Parts Diagram

  • Title
1

Echo A021003840

CARBURETOR WT-1046

Note: Includes iitems 2-28

$

$

Currently unavailable

2

Echo 12313404260

SCREW, IDLE ADJUST

$1.99

$

In Stock, Qty 10

0

3

Echo 12313304260

SPRING, IDLE ADJUST

$6.49

$

In Stock, Qty 15

0

4

Echo P003003930

COVER, FUEL PUMP

$15.99

$

Usually ships in 2-4 days

0

$0.99

$

In Stock, only 1 left!

0

6

Echo 12312515030

GASKET, FUEL PUMP

$2.49

$

In Stock, Qty 9

0

7

Echo P003006270

DIAPHRAGM, FUEL PUMP

$

$

Currently unavailable

8

Echo 12312610631

SCREEN, FUEL INLET

$1.49

$

In Stock, Qty 17

0

$1.99

$

Usually ships in 2-4 days

0

10

Echo 12312703930

CLIP, THROTTLE SHAFT

$1.49

$

Usually ships in 2-4 days

0

11

Echo 12314610631

PLUG, WELCH

$1.49

$

Usually ships in 2-4 days

0

12

Echo 12313719830

VALVE, INLET NEEDLE

$18.99

$

Usually ships in 2-4 days

0

13

Echo 12312203660

SPRING, METERING LEVER

$1.49

$

Usually ships in 2-4 days

0

14

Echo 12312338330

LEVER, METERING

$6.49

$

In Stock, only 1 left!

0

15

Echo 12313903930

SCREW, METERING LEVER PIN

$1.49

$

In Stock, only 1 left!

0

16

Echo 12313803930

PIN, METERING LEVER

$5.99

$

In Stock, only 4 left!

0

17

Echo 12314003930

GASKET, METERING DIAPHRAGM

$1.99

$

In Stock, Qty 5

0

18

Echo P003001850

DIAPHRAGM, METERING

$7.99

$

In Stock, only 1 left!

0

19

Echo 12314203930

COVER, METERING DIAPHRAGM

$3.99

$

In Stock, only 1 left!

0

20

Echo P003002270

NEEDLE, MIXTURE

$19.99

$

Usually ships in 2-4 days

0

21

Echo P003004460

NEEDLE, MIXTURE

$11.99

$

Usually ships in 2-4 days

0

22

Echo 12312710630

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

23

$1.99

$

Usually ships in 2-4 days

0

24

$0.99

$

In Stock, only 1 left!

0

25

Echo P003005020

SHAFT, THROTTLE

$6.99

$

Usually ships in 2-4 days

0

26

Echo 12311347530

SPRING, THROTTLE

$4.99

$

Usually ships in 2-4 days

0

27

Echo 12311605960

VALVE, THROTTLE

$1.49

$

In Stock, only 1 left!

0

28

$0.99

$

In Stock, only 2 left!

0
