SRM-420 ES-LW/AR - Echo String Trimmer (SN: U16726001001 - U16726999999) Main Pipe Parts Diagram

String Trimmer

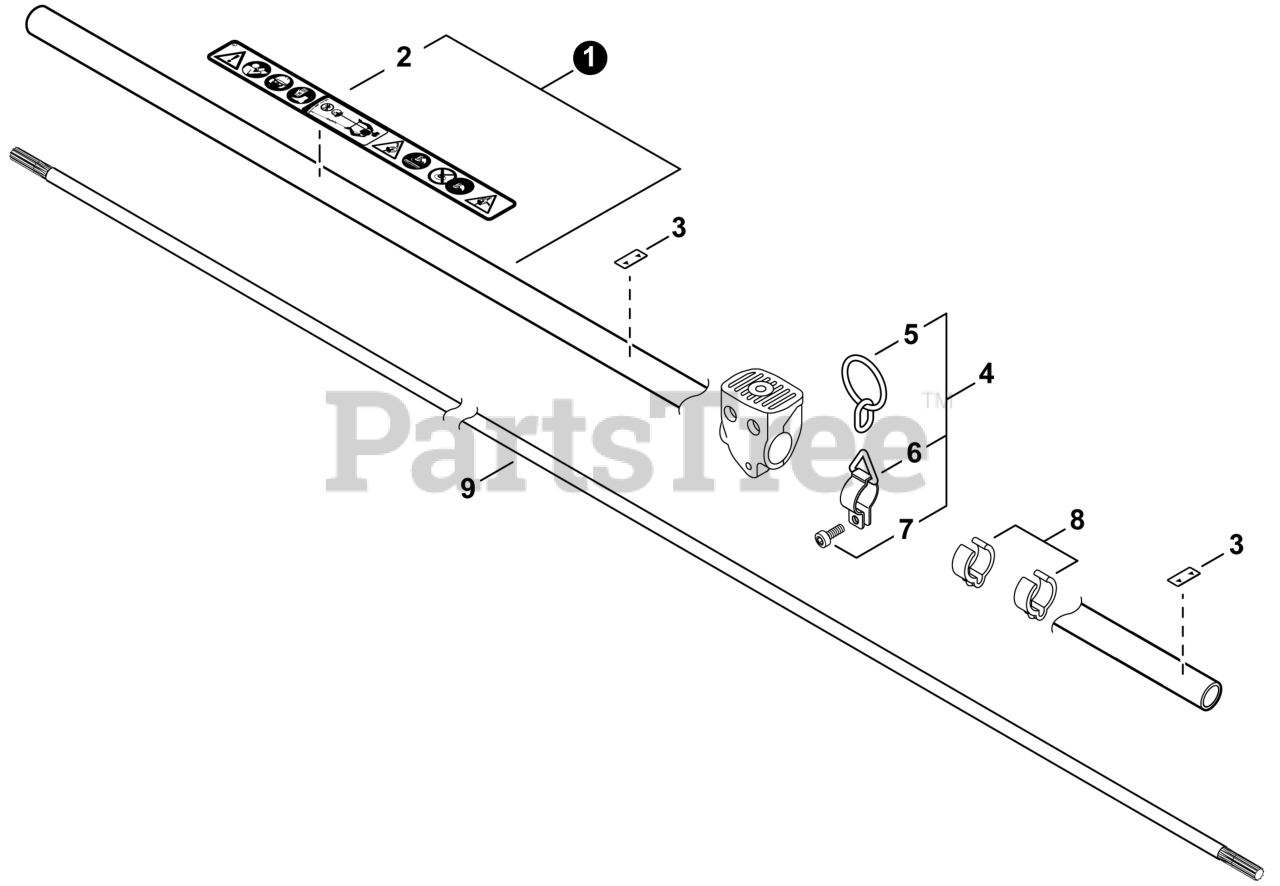

Main Pipe Parts Diagram

  • Title

1

Echo P021048950

MAIN PIPE ASSY

Note: Includes iitem 2

$

$

Currently unavailable

2

Echo 89061743130

LABEL - CAUTION - ISO

$22.99

$

Usually ships in 2-4 days

0

3

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 9

0

4

Echo P100002580

HANGER ASSY, HARNESS

Note: Includes iitems 5-7

$11.99

$

Usually ships in 2-4 days

0

5

Echo 30101505330

RING, HARNESS

$4.49

$

Usually ships in 2-4 days

0

6

Echo 30121004631

HANGER, HARNESS

$4.49

$

Usually ships in 2-4 days

0

7

Echo V805000140

BOLT, TORX 5×12

$0.99

$

In Stock, Qty 20+

0

8

Echo 22492452930

CLIP, CABLE 28 MM

$8.99

$

Usually ships in 2-4 days

0

9

Echo 61001149931

DRIVESHAFT

$41.99

$

Usually ships in 2-4 days

0
