SRM-420 ES-LW/AR - Echo String Trimmer (SN: U16726001001 - U16726999999) Clutch Parts Diagram

String Trimmer

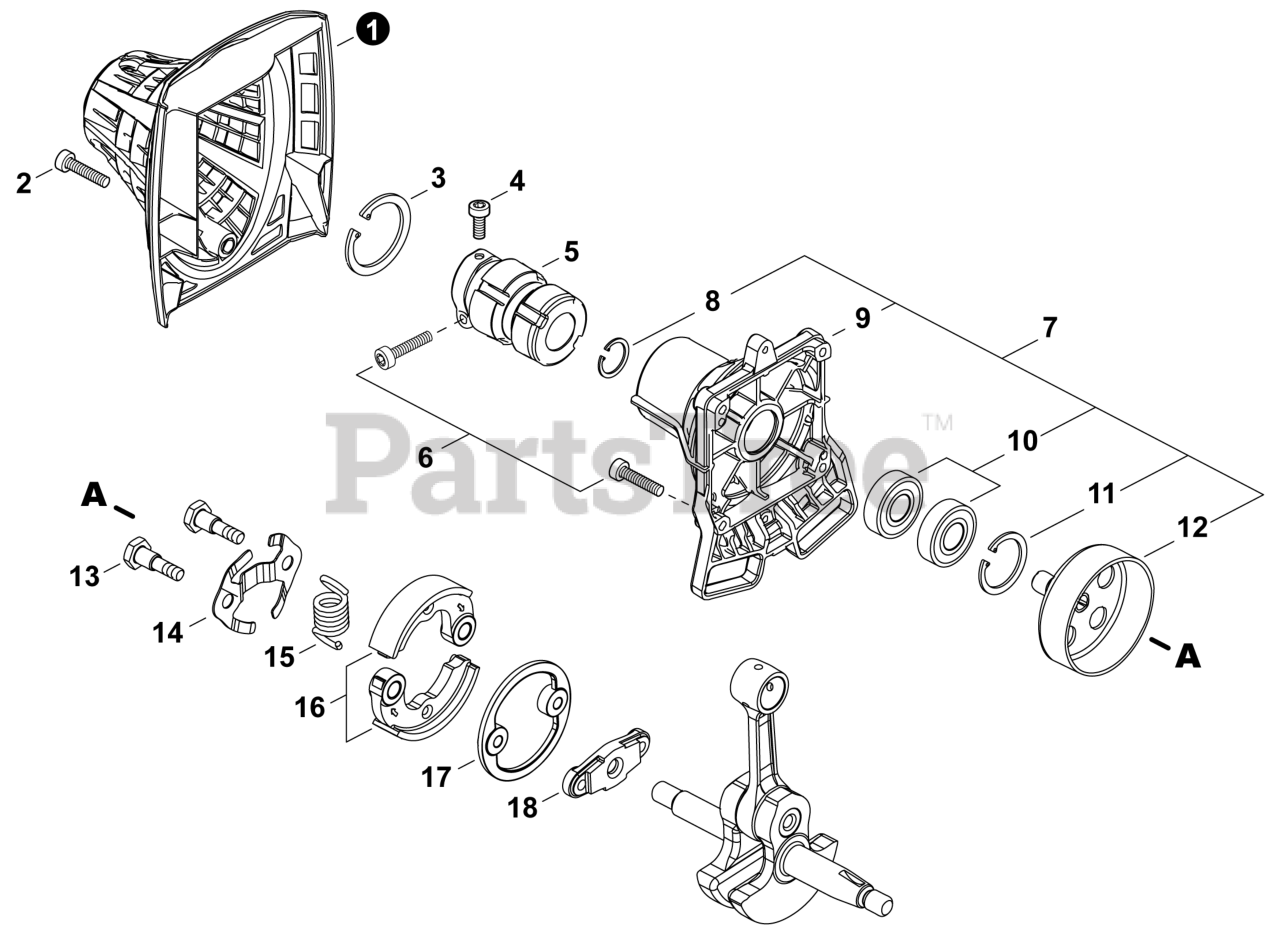

Clutch Parts Diagram

  • Title

1

Echo A580000011

COVER, CLUTCH CASE

$

$

Currently unavailable

2

Echo V835000000

BOLT, TORX 5×16

$1.99

$

In Stock, only 4 left!

0

3

Echo 90070200045

RING, RETAINING Ø45

$1.99

$

In Stock, only 2 left!

0

4

Echo V805000140

BOLT, TORX 5×12

$0.99

$

In Stock, Qty 20+

0

5

Echo V420004090

HOLDER, MAIN PIPE

$22.99

$

Usually ships in 2-4 days

0

6

Echo V805000170

BOLT, TORX 5×25

$0.99

$

In Stock, Qty 20+

0

7

Echo P100002610

CASE ASSY, CLUTCH

Note: Includes iitems 8-12

$76.99

$

Usually ships in 2-4 days

0

8

Echo 90070100012

RING, SNAP 12

$0.99

$

In Stock, Qty 20+

0

9

Echo A570000281

CASE, CLUTCH

$72.99

$

Usually ships in 2-4 days

0

10

Echo 90080706001

BEARING, BALL 6001

$11.99

$

In Stock, only 2 left!

0

11

Echo 90070200028

RING, SNAP 28

$1.49

$

In Stock, Qty 13

0

12

Echo A556001540

DRUM, CLUTCH

$39.99

$

Usually ships in 2-4 days

0

13

Echo A557000190

BOLT, CLUTCH

$3.99

$

Usually ships in 2-4 days

0

14

Echo V453000230

SPRING, FLAT

$7.49

$

Usually ships in 2-4 days

0

15

Echo A566000230

SPRING, CLUTCH

$2.49

$

Usually ships in 2-4 days

0

16

Echo P100000080

CLUTCH SHOE SET

$59.99

$

Usually ships in 2-4 days

0

17

Echo V376001980

SPACER

$14.99

$

Usually ships in 2-4 days

0

18

Echo A552000390

HUB, CLUTCH

$16.99

$

Usually ships in 2-4 days

0
