SRM-420 ES AR - Echo Brush Cutter (SN: U14826001001 - U14826999999) Fuel System Parts Diagram

Brush Cutter

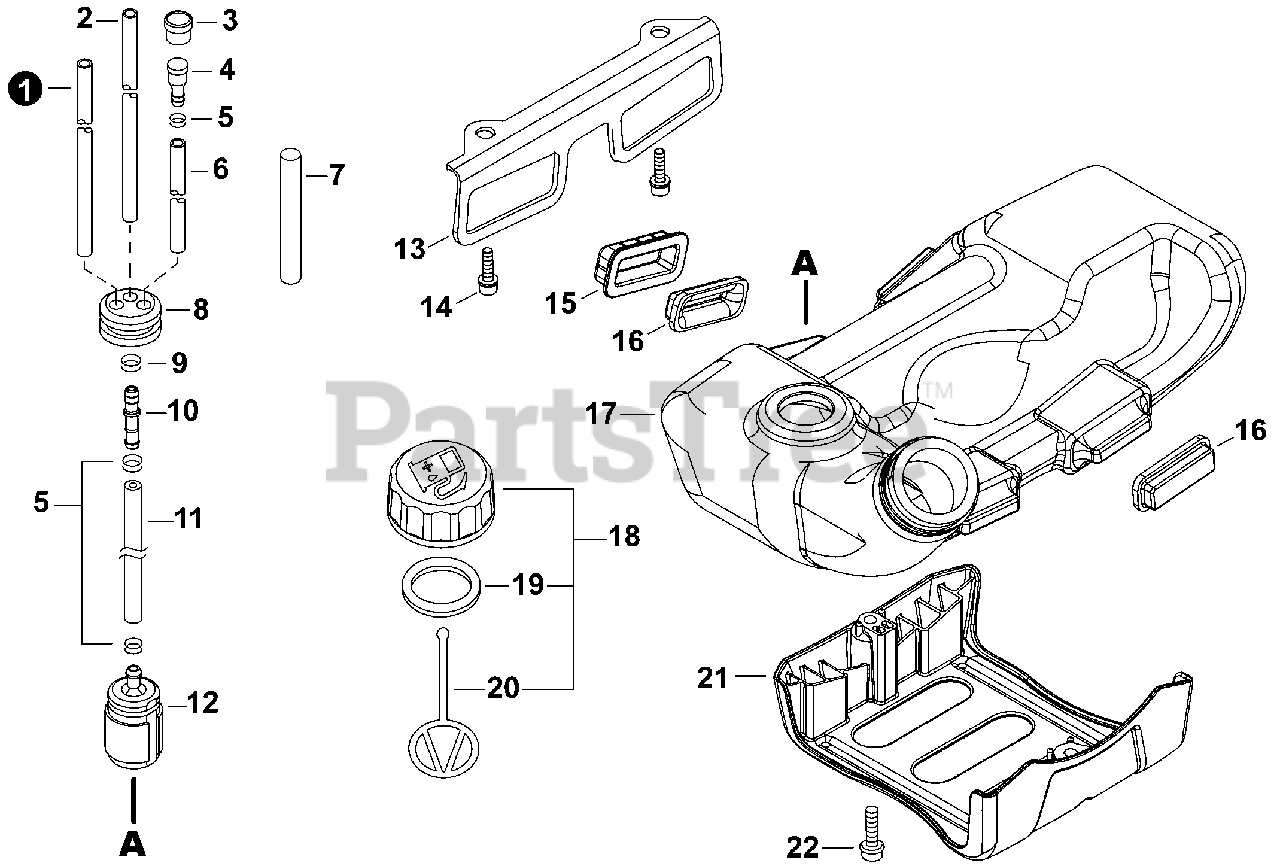

Fuel System Parts Diagram

  • Title

1

Echo V471003950

PIPE, FUEL

$5.49

$

Usually ships in 2-4 days

0

2

Echo V470000840

PIPE, FUEL 3x5x180
(Superseded to V470000841)

$4.99

$

Usually ships in 2-4 days

0

3

Echo 13132840630

HOLDER, VENT

$6.49

$

In Stock, Qty 13

0

4

Echo 13130056431

VENT ASSY

$7.49

$

In Stock, Qty 11

0

5

Echo V490001240

CLIP 6

$0.99

$

Usually ships in 2-4 days

0

6

Echo 13011016430

PIPE, FUEL 3x6x140 BLACK

$2.49

$

Usually ships in 2-4 days

0

7

Echo V475007610

TUBE, INSULATOR 8x9x111

$1.49

$

Usually ships in 2-4 days

0

8

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.49

$

In Stock, Qty 20+

0

9

Echo 13011100530

CLIP 5.5

$0.99

$

In Stock, Qty 20+

0

10

Echo V186000510

CONNECTOR, PIPE

$1.99

$

In Stock, Qty 6

0

11

Echo V471002310

PIPE, FUEL 3x6x130 BLACK
(Superseded to V471002311)

$1.49

$

In Stock, Qty 9

0

12

Echo A369000001

FILTER, FUEL
(Superseded to A369000440)

$6.99

$

In Stock, Qty 20+

0

13

Echo A393000300

BRACKET, FUEL TANK

$5.49

$

Usually ships in 2-4 days

0

14

Echo V805000150

BOLT, TORX 5x16

$0.99

$

In Stock, Qty 20+

0

15

Echo V423000090

HOLDER, CUSHION

$1.99

$

Usually ships in 2-4 days

0

16

Echo 13192061830

CUSHION, FUEL TANK

$5.99

$

Usually ships in 2-4 days

0

17

Echo A350002021

TANK, FUEL

$25.99

$

Usually ships in 2-4 days

0

18

Echo P021012210

CAP ASSY, FUEL
(Superseded to P021012211)

Note: Includes iitems 19-20

$5.99

$

In Stock, only 1 left!

0

19

Echo 13101655830

GASKET, FUEL CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

20

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 10

0

21

Echo A175000331

GUARD, FUEL TANK

$9.49

$

Usually ships in 2-4 days

0

22

Echo V835000000

BOLT, TORX 5x16

$1.99

$

In Stock, only 4 left!

0
