SRM-420 ES AR - Echo Brush Cutter (SN: U14826001001 - U14826999999) Control Handle Parts Diagram

Brush Cutter

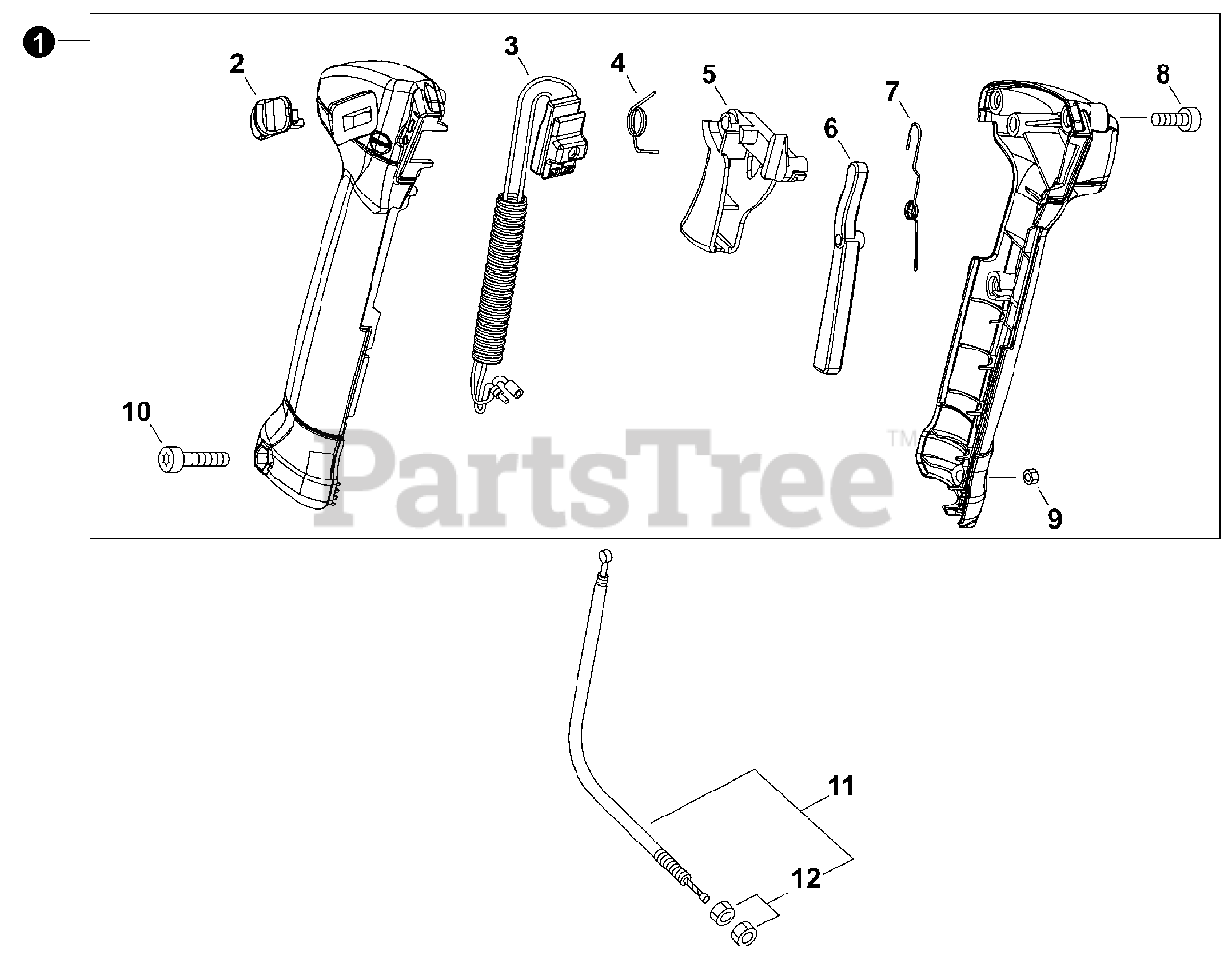

Control Handle Parts Diagram

  • Title
1

Echo P100006090

CONTROL HANDLE ASSY

Note: Includes iitems 2-10

$91.99

$

Usually ships in 2-4 days

0

2

Echo C463000000

LATCH, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

3

Echo P021041471

SWITCH ASSY, ON-OFF

$14.99

$

Usually ships in 2-4 days

0

4

Echo V452000060

SPRING, TORSION

$1.49

$

In Stock, Qty 14

0

5

Echo C450000880

CONTROL, THROTTLE

$9.99

$

Usually ships in 2-4 days

0

6

Echo C460000490

LOCKOUT, THROTTLE

$4.49

$

Usually ships in 2-4 days

0

7

Echo V452001540

SPRING, TORSION

$6.99

$

Usually ships in 2-4 days

0

8

Echo V804000010

BOLT, TORX 4x16

$0.99

$

In Stock, Qty 7

0

9

$0.99

$

In Stock, Qty 20+

0

10

Echo V805000060

BOLT, TORX 5x35

$0.99

$

In Stock, Qty 13

0

11

Echo V430004690

CABLE, THROTTLE

Note: Includes iitem 12

$13.99

$

Usually ships in 2-4 days

0

12

$0.99

$

In Stock, Qty 8

0
