SRM-410 X - Echo String Trimmer (SN: U46313001001 - U46313999999) Starter Parts Diagram

String Trimmer

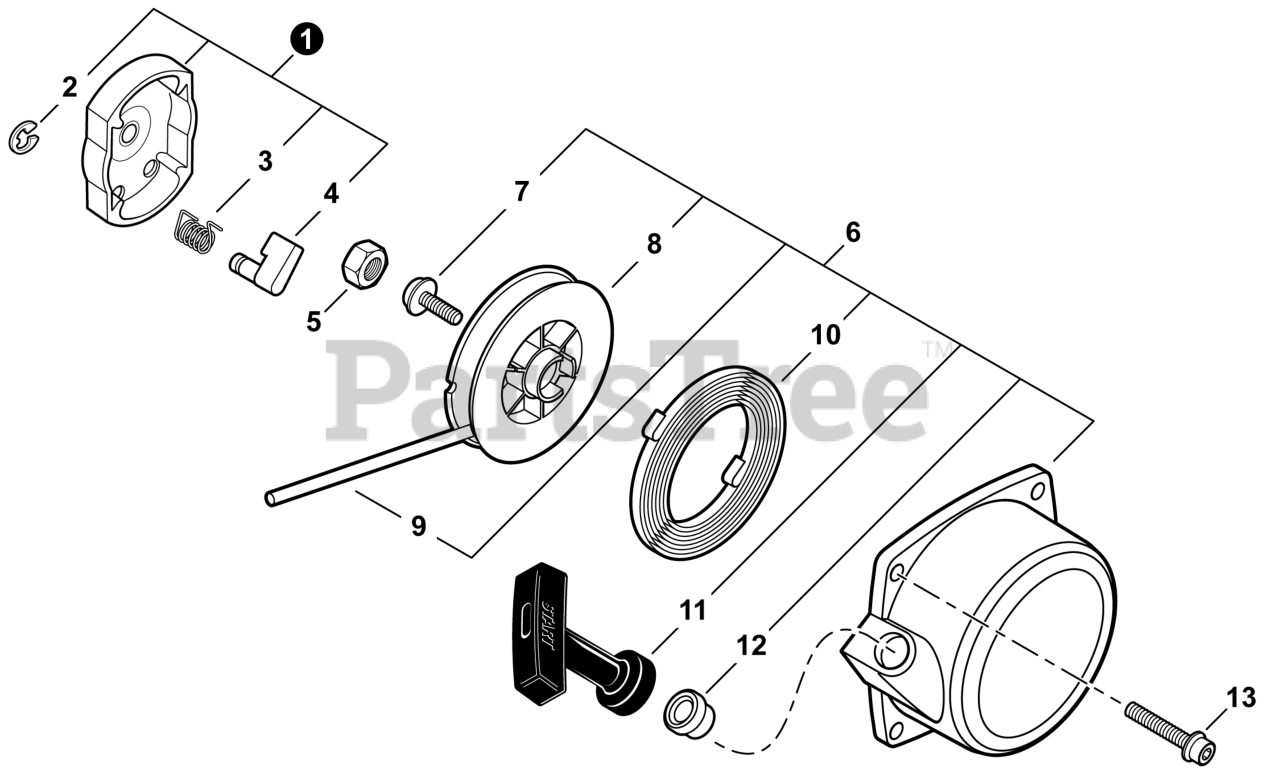

Starter Parts Diagram

  • Title
1

Echo A052000011

PAWL ASSY, STARTER

Note: Includes items 2-4

$13.99

$

Usually ships in 2-4 days

0

2

Echo P022002100

E-RING 4

$0.99

$

In Stock, Qty 6

0

3

Echo 17723440630

SPRING, RETURN

$3.49

$

In Stock, only 2 left!

0

4

Echo P022003120

PAWL, STARTER

$3.49

$

In Stock, Qty 8

0

5

Echo 90050200008

NUT 8x1.25

$0.99

$

In Stock, only 2 left!

0

6

Echo A051000190

STARTER ASSY, RECOIL

Note: Includes items 7-12

$73.99

$

Usually ships in 2-4 days

0

$3.49

$

Usually ships in 2-4 days

0

8

Echo P022002080

REEL, ROPE

$15.99

$

Usually ships in 2-4 days

0

9

Echo 17722606310

ROPE, STARTER 3.8x1150

$5.99

$

In Stock, only 4 left!

0

10

Echo 17722006310

SPRING, RECOIL

$15.99

$

Usually ships in 2-4 days

0

11

Echo 17722827030

GRIP, STARTER

$5.99

$

In Stock, Qty 20+

0

12

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 14

0

13

Echo 90010605020

BOLT 5x20

$1.49

$

In Stock, Qty 20+

0
