SRM-410 X - Echo String Trimmer (SN: U46313001001 - U46313999999) Fuel System Parts Diagram

String Trimmer

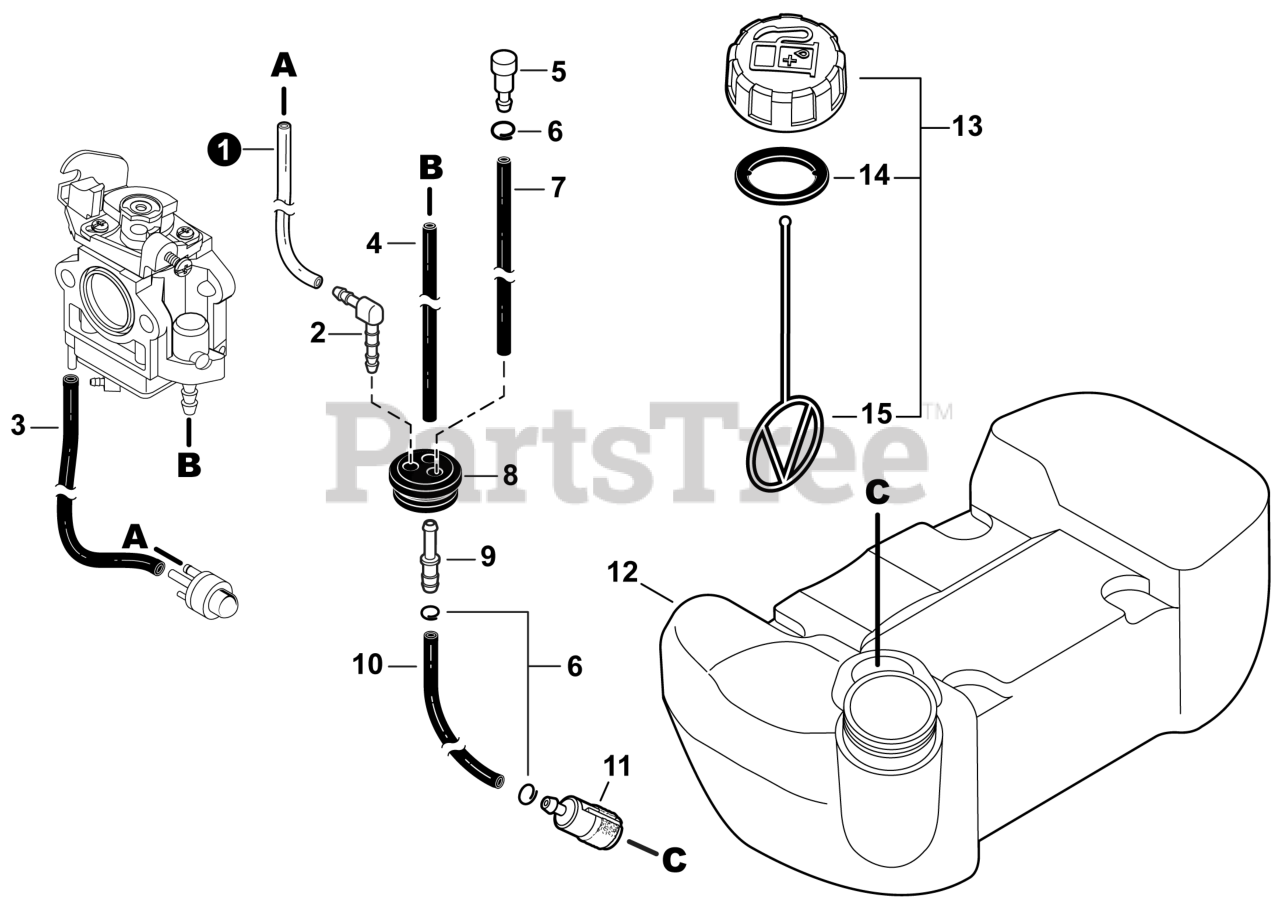

Fuel System Parts Diagram

  • Title

1

Echo 43721520760

PIPE, FUEL 3x6x60 CLEAR

$1.99

$

In Stock, Qty 15

0

2

Echo V186000500

CONNECTOR, PIPE

$0.99

$

In Stock, Qty 15

0

3

Echo V471001561

PIPE, FUEL 2.4x5x80 BLACK

$1.99

$

In Stock, only 3 left!

0

4

Echo V471005580

PIPE, FUEL 3x5.5x61 BLACK

$3.99

$

Usually ships in 2-4 days

0

5

Echo 13130056431

VENT ASSY

$7.49

$

In Stock, Qty 11

0

6

Echo V490001230

CLIP 6.5 MM

$0.99

$

In Stock, Qty 20+

0

7

Echo 13201202961

PIPE, FUEL 3x6x120 BLACK
(Superseded to V471005820)

$1.49

$

In Stock, only 1 left!

0

8

Echo 13211555931

GROMMET, FUEL

$2.49

$

In Stock, Qty 20+

0

9

Echo V186000520

CONNECTOR, PIPE 5x3.5

$0.99

$

In Stock, Qty 20+

0

10

Echo 43721632631

PIPE 3x6x125 BLACK

$4.99

$

Usually ships in 2-4 days

0

11

Echo A369000460

FILTER, FUEL

$9.49

$

In Stock, Qty 20+

0

12

Echo A350002580

TANK, FUEL

$41.99

$

Usually ships in 2-4 days

0

13

Echo P021053030

CAP ASSY, FUEL
(Superseded to P021040430)

Note: Includes items 14-15

$5.99

$

In Stock, Qty 20+

0

14

Echo V107000210

GASKET, FUEL CAP
(Superseded to V107000150)

$4.49

$

In Stock, Qty 20+

0

15

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 10

0
