SRM-410 X - Echo String Trimmer (SN: U46313001001 - U46313999999) Engine Parts Diagram

String Trimmer

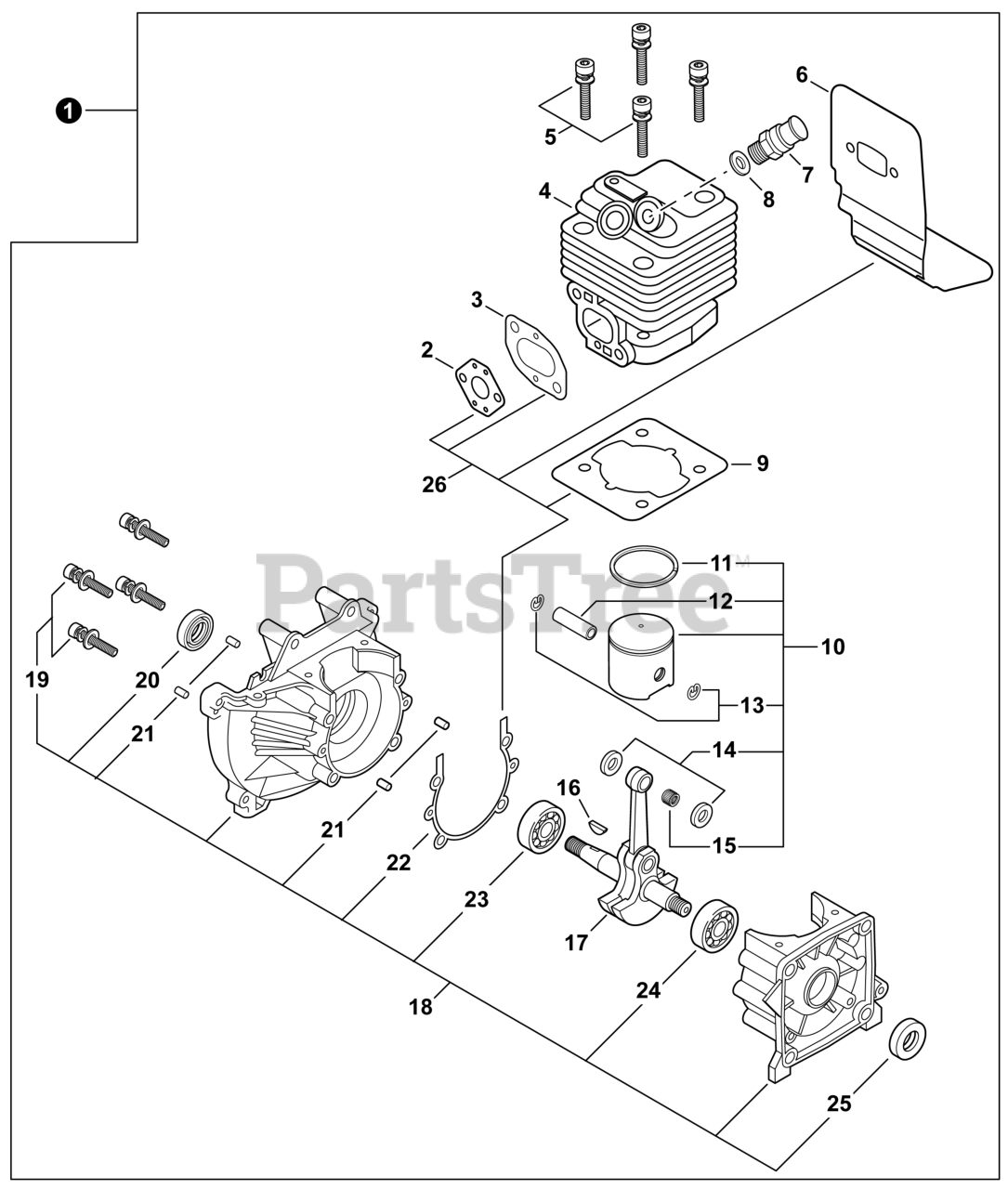

Engine Parts Diagram

  • Title
1

Echo SB1097

SHORT BLOCK

Note: Includes items 2-25

$401.99

$

Usually ships in 2-4 days

0

2

Echo V103000080

GASKET, INTAKE

$1.49

$

In Stock, Qty 15

0

3

Echo V103000070

GASKET, INTAKE

$1.49

$

In Stock, only 2 left!

0

4

Echo A130000880

CYLINDER

$148.99

$

Usually ships in 2-4 days

0

5

Echo 90016205020

BOLT 5x20

$1.49

$

In Stock, Qty 20+

0

6

Echo V104000241

HEAT SHIELD, EXHAUST

$11.99

$

In Stock, only 1 left!

0

7

Echo A014000000

VALVE, DECOMPRESSION

$60.99

$

In Stock, only 3 left!

0

8

Echo V109000150

GASKET, VALVE

$1.99

$

Usually ships in 2-4 days

0

9

Echo V100000040

GASKET, CYLINDER

$3.49

$

Usually ships in 2-4 days

0

10

Echo P021014262

PISTON KIT

Note: Includes items 11-15

$78.99

$

In Stock, only 1 left!

0

11

Echo 10001110530

RING, PISTON

$7.49

$

In Stock, Qty 16

0

12

Echo V608000000

PIN, PISTON 10

$5.99

$

Usually ships in 2-4 days

0

13

Echo V580000010

RING, SNAP 10

$0.99

$

Usually ships in 2-4 days

0

14

Echo V307000060

WASHER, THRUST

$6.49

$

Usually ships in 2-4 days

0

15

Echo V555000010

BEARING, NEEDLE 10

$10.99

$

In Stock, Qty 7

0

16

Echo 90032303014

KEY, WOODRUFF 3x14

$1.49

$

In Stock, only 2 left!

0

17

Echo A011000120

CRANKSHAFT ASSY

$217.99

$

In Stock, only 1 left!

0

18

Echo P021002471

CRANKCASE KIT

Note: Includes items 19-25

$196.99

$

Usually ships in 2-4 days

0

19

Echo 90016205035

BOLT M5x35

$1.49

$

In Stock, Qty 6

0

20

Echo 10021300310

SEAL, OIL

$5.49

$

In Stock, only 4 left!

0

21

Echo 90033040080

PIN, LOCATING 4x8

$0.99

$

In Stock, Qty 20+

0

22

Echo V102000001

GASKET, CRANKCASE

$1.49

$

Usually ships in 2-4 days

0

23

Echo 90081036202

BEARING, BALL 6202

$9.99

$

In Stock, Qty 6

0

24

Echo 9403536201

BEARING, BALL 6201

$7.99

$

In Stock, Qty 9

0

25

Echo 10021305530

SEAL, OIL 12

$6.49

$

In Stock, only 2 left!

0

26

Echo P021003371

GASKET KIT

$18.99

$

Usually ships in 2-4 days

0
