SRM-410 X - Echo String Trimmer (SN: U46212001001 - U46212999999) Intake Parts Diagram

String Trimmer

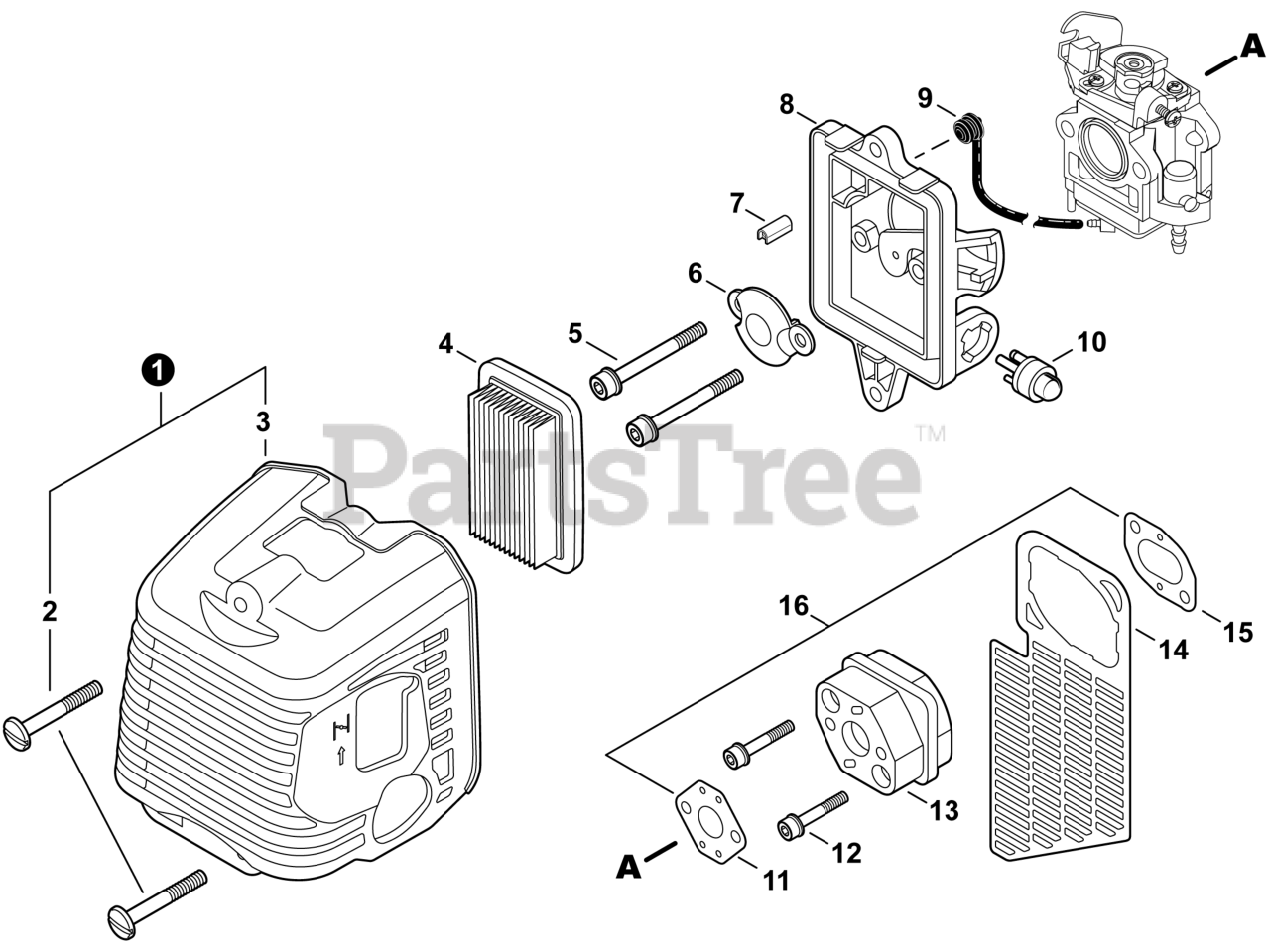

Intake Parts Diagram

  • Title

1

Echo P021012110

COVER ASSY, AIR FILTER

Note: Includes items 2-3

$18.99

$

Usually ships in 2-4 days

0

2

Echo V253000100

SCREW 5x20

$1.99

$

Usually ships in 2-4 days

0

3

Echo A232000390

COVER, AIR FILTER

$14.99

$

Usually ships in 2-4 days

0

4

Echo A226000361

FILTER, AIR

$22.99

$

In Stock, Qty 5

0

5

Echo 90010505055

BOLT 5x55

$1.49

$

In Stock, Qty 15

0

6

Echo A244000010

PLATE, PREVENT

$2.99

$

Usually ships in 2-4 days

0

7

Echo A239000050

PIPE, INTAKE

$2.99

$

Usually ships in 2-4 days

0

8

Echo P021009590

CASE, AIR FILTER

$12.99

$

In Stock, only 1 left!

0

9

Echo 13201239332

GROMMET, W/VENT PIPE 3x6x105

$12.99

$

In Stock, only 1 left!

0

10

Echo 12318139130

BULB, PURGE

$7.49

$

In Stock, Qty 20+

0

11

Echo V103000080

GASKET, INTAKE

$1.49

$

In Stock, Qty 19

0

12

Echo 90010605025

BOLT 5x25

$0.99

$

In Stock, Qty 8

0

13

Echo A200000060

INSULATOR, INTAKE

$14.99

$

Usually ships in 2-4 days

0

14

Echo A128000060

SHIELD, DEBRIS

$6.49

$

Usually ships in 2-4 days

0

15

Echo V103000070

GASKET, INTAKE

$1.49

$

In Stock, only 2 left!

0

16

Echo P021003371

GASKET KIT

$18.99

$

Usually ships in 2-4 days

0
