SRM-410 U - Echo Brush Cutter (SN: T75412001001 - T75412999999) Fuel System Parts Diagram

Brush Cutter

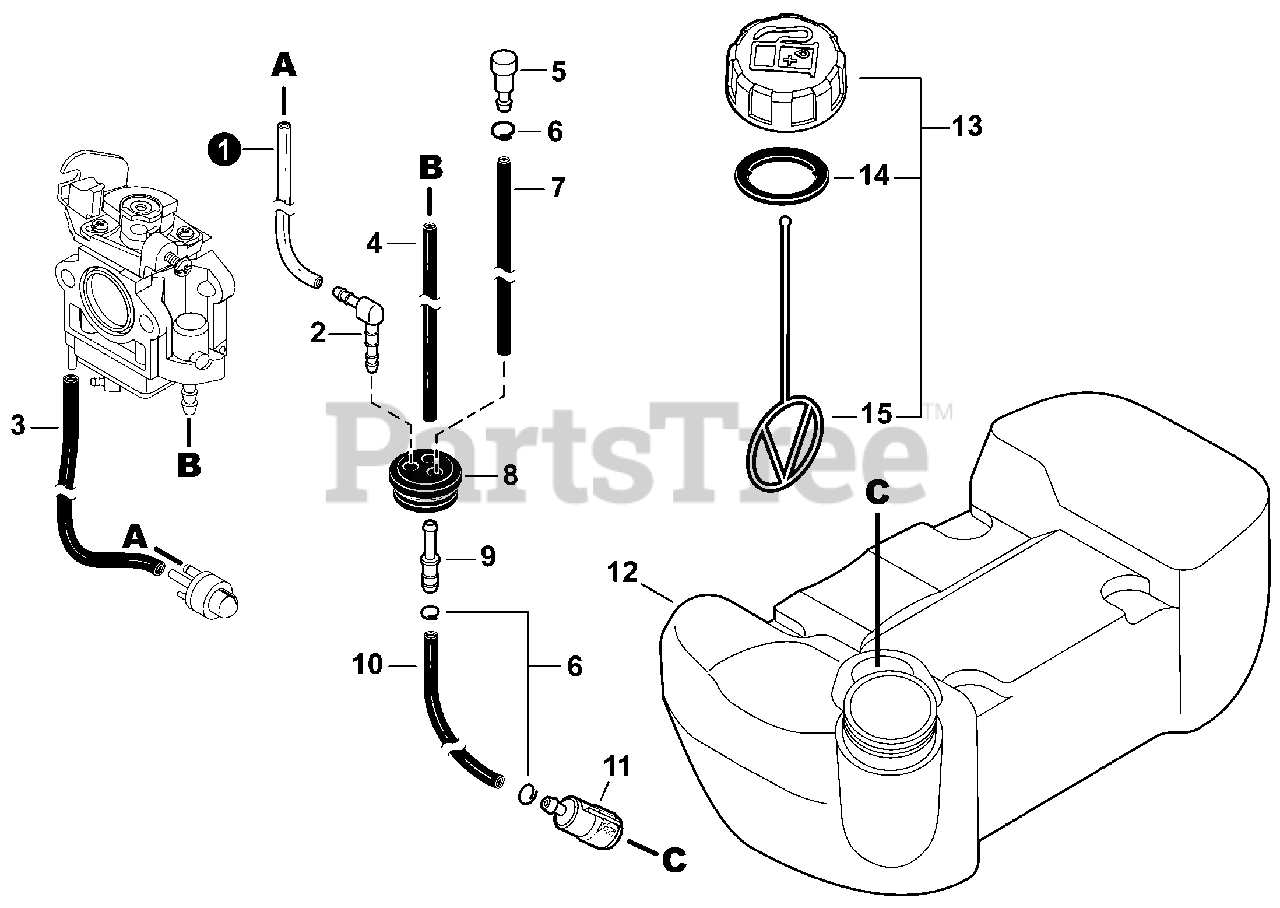

Fuel System Parts Diagram

  • Title

1

Echo 43721520760

PIPE, FUEL 3×6×60 CLEAR

$1.99

$

In Stock, Qty 15

0

2

Echo V186000500

CONNECTOR, PIPE

$0.99

$

In Stock, Qty 20+

0

3

Echo V471001560

PIPE, FUEL 2.4×5×80 BLACK
(Superseded to V471001561)

$1.99

$

In Stock, only 4 left!

0

4

Echo V471003960

PIPE, FUEL 3×5×55 BLACK
(Superseded to V471005580)

$3.99

$

Usually ships in 2-4 days

0

5

Echo 13130056431

VENT ASSY

$7.49

$

In Stock, Qty 9

0

6

Echo V490001230

CLIP Ø6.5MM

$0.99

$

In Stock, Qty 20+

0

7

Echo 13201202960

PIPE, FUEL 3×6×120 BLACK
(Superseded to 13201202961)

$4.49

$

Usually ships in 2-4 days

0

8

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.49

$

In Stock, Qty 20+

0

9

Echo V186000520

CONNECTOR, PIPE Ø5×Ø3.5

$0.99

$

In Stock, Qty 20+

0

10

Echo 43721632630

PIPE 3×6×125 BLACK

$2.99

$

Usually ships in 2-4 days

0

11

Echo 13120519832

FILTER, FUEL
(Superseded to A369000460)

$9.49

$

In Stock, Qty 20+

0

12

Echo A350002090

TANK, FUEL
(Superseded to A350002580)

$41.99

$

Usually ships in 2-4 days

0

13

Echo P021040030

CAP ASSY, FUEL

Note: Includes ITEMS 14-15

$5.99

$

In Stock, Qty 20+

0

14

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

15

Echo 13105156030

CONNECTOR, CAP L= 100mm

$1.49

$

In Stock, Qty 20+

0
