SRM-400 U - Echo Brush Cutter (SN: S16103004774 - S16103999999) Carburetor -- WYK-226 Parts Diagram

Brush Cutter

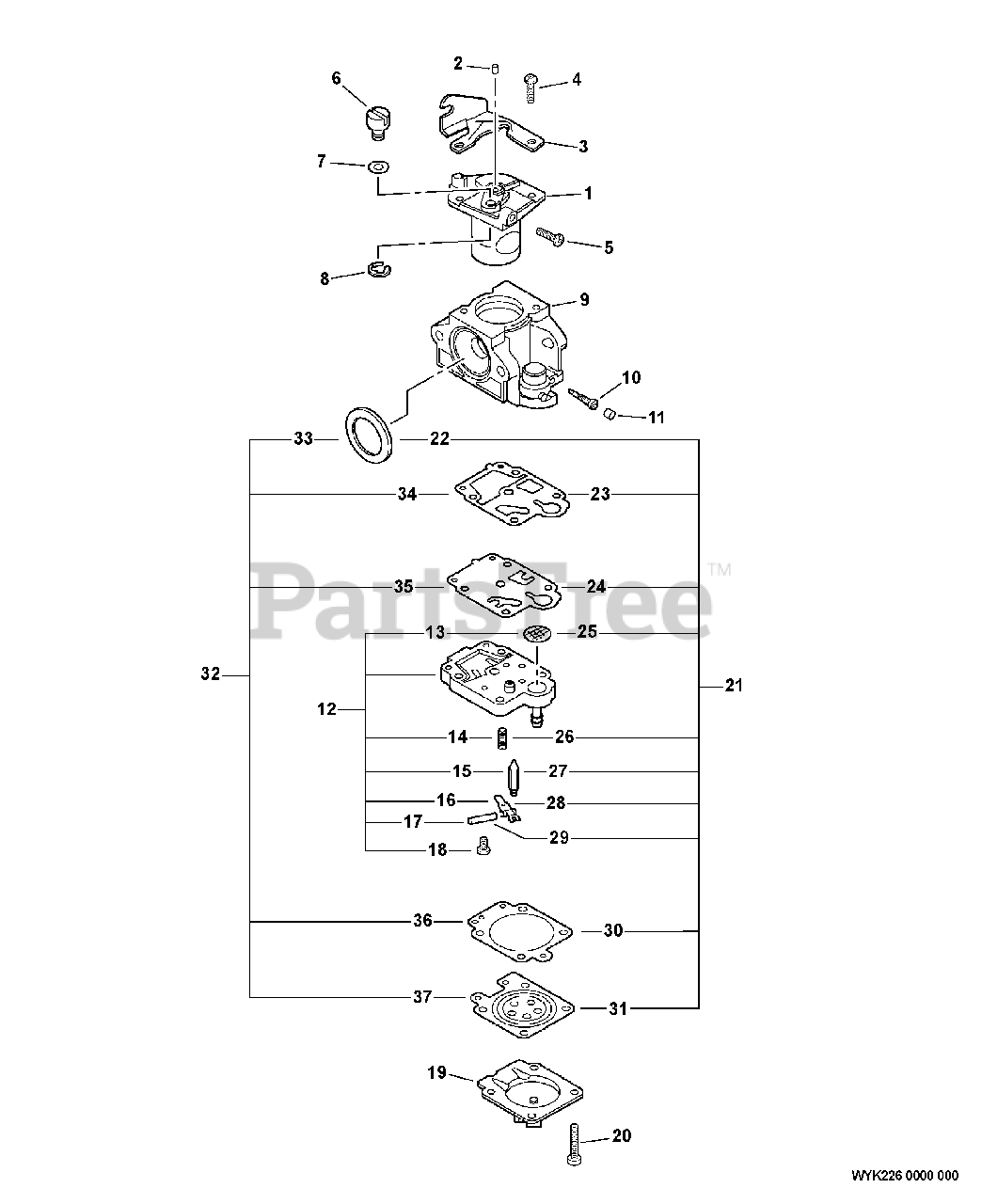

Carburetor -- WYK-226 Parts Diagram

  • Title

Echo A021001170

CARBURETOR WYK-226
(Superseded to A021001171)

$110.99

$

In Stock, only 1 left!

0

1

------------------

THROTTLE VALVE ASSY

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

2

Echo A259000000

CAP, LIMITER

$0.99

$

Usually ships in 2-4 days

0

3

Echo P003000180

BRACKET, CABLE

$1.99

$

Usually ships in 2-4 days

0

$2.49

$

In Stock, only 3 left!

0

5

Echo 12313440030

SCREW, IDLE ADJUST

$1.49

$

Usually ships in 2-4 days

0

6

$1.99

$

Usually ships in 2-4 days

0

7

$0.99

$

In Stock, only 1 left!

0

8

Echo 12317307930

RING, RETAINING

$1.49

$

In Stock, only 1 left!

0

9

------------------

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

10

Echo P003001130

NEEDLE - HIGH SPEED

$10.99

$

Usually ships in 2-4 days

0

11

Echo A259000000

CAP, LIMITER

$0.99

$

Usually ships in 2-4 days

0

12

Echo P003001490

PUMP BODY ASSY

Note: Includes ITEMS 12-18

$27.99

$

Usually ships in 2-4 days

0

13

------------------

STRAINER

$

$

Not available

14

------------------

SPRING, METERING LEVER

$

$

Not available

15

------------------

VALVE, INLET NEEDLE

$

$

Not available

16

------------------

LEVER, METERING

$

$

Not available

17

------------------

PIN, METERING LEVER

$

$

Not available

18

Echo 12313905560

SCREW, METERING LEVER PIN

$0.99

$

Usually ships in 2-4 days

0

19

Echo P003001500

COVER, PRIMER PUMP

$6.99

$

Usually ships in 2-4 days

0

20

$1.99

$

Usually ships in 2-4 days

0

21

Echo P003000660

REPAIR KIT
(Superseded to P003001120)

Note: INCLUDES ITEMS 22-31

$22.99

$

In Stock, Qty 7

0

22

------------------

SEAL

$

$

Not available

23

------------------

GASKET, PUMP

$

$

Not available

24

------------------

DIAPHRAGM, PUMP

$

$

Not available

25

------------------

STRAINER

$

$

Not available

26

------------------

SPRING, METERING LEVER

$

$

Not available

27

------------------

VALVE, INLET NEEDLE

$

$

Not available

28

------------------

LEVER, METERING

$

$

Not available

29

------------------

PIN, METERING LEVER

$

$

Not available

30

------------------

GASKET, DIAPHRAGM

$

$

Not available

31

------------------

DIAPHRAGM, METERING

$

$

Not available

32

Echo P003000650

DIAPHRAGM/GASKET KIT
(Superseded to P003001120)

Note: INCLUDES ITEMS 33-37

$22.99

$

In Stock, Qty 7

0

33

------------------

SEAL

$

$

Not available

34

------------------

GASKET, PUMP

$

$

Not available

35

------------------

DIAPHRAGM, PUMP

$

$

Not available

36

------------------

GASKET, DIAPHRAGM

$

$

Not available

37

------------------

DIAPHRAGM, METERING

$

$

Not available
