SRM-400 BE - Echo String Trimmer Carburetor Parts Diagram

String Trimmer

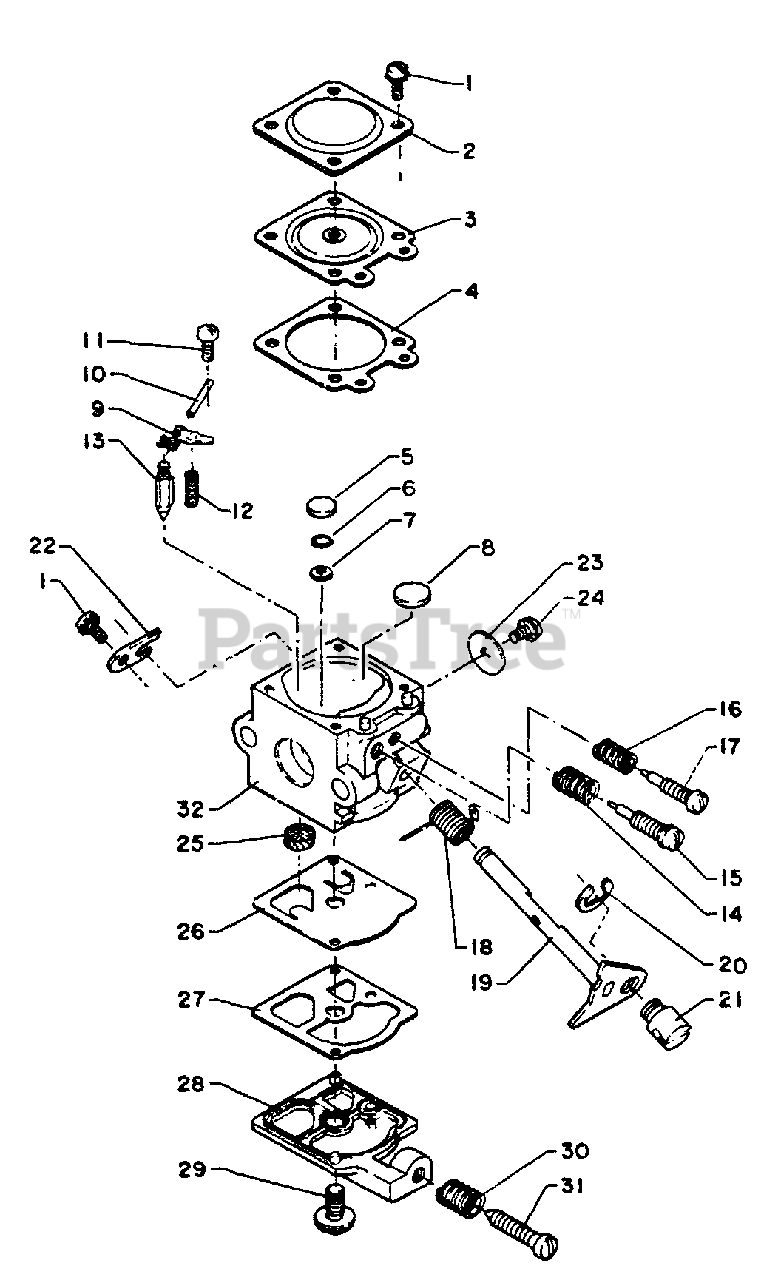

Carburetor Parts Diagram

  • Title

Echo 12300024830

CARBURETOR WA-142
(Superseded to Discontinued)

$

$

Not available

1

Echo 12310016330

REPAIR KIT

Note: Included in Carburetor Repair Kit P/N 12310016330

$16.99

$

In Stock, only 3 left!

0

2

Echo 12314203930

COVER, METERING

$3.99

$

In Stock, only 1 left!

0

3

------------------

DIAPHRAGM, METERING

Note: Included in Carburetor Repair Kit P/N 12310016330 And Carburetor Diaphragm/Gasket Kit P/N 12310110530

$

$

Not available

4

------------------

GASKET, METERING

Note: Included in Carburetor Repair Kit P/N 12310016330 And Carburetor Diaphragm/Gasket Kit P/N 12310110530

$

$

Not available

5

------------------

PLUG, WELCH

Note: Included in Carburetor Repair Kit P/N 12310016330

$

$

Not available

6

------------------

RING, RETAINING

Note: Included in Carburetor Repair Kit P/N 12310016330

$

$

Not available

7

------------------

STRAINER

Note: Included in Carburetor Repair Kit P/N 12310016330

$

$

Not available

8

------------------

PLUG, WELCH

Note: Included in Carburetor Repair Kit P/N 12310016330

$

$

Not available

9

------------------

LEVER, METERING

Note: Included in Carburetor Repair Kit P/N 12310016330

$

$

Not available

10

------------------

PIN, METERING LEVER

Note: Included in Carburetor Repair Kit P/N 12310016330

$

$

Not available

11

------------------

SCREW

Note: Included in Carburetor Repair Kit P/N 12310016330

$

$

Not available

12

------------------

SPRING, METERING LEVER

Note: Included in Carburetor Repair Kit P/N 12310016330

$

$

Not available

13

------------------

VALVE, INLET NEEDLE

Note: Included in Carburetor Repair Kit P/N 12310016330

$

$

Not available

14

------------------

SPRING, HIGH SPEED NEEDLE

Note: Included in Carburetor Repair Kit P/N 12310016330

$

$

Not available

15

Echo 12312000760

NEEDLE - HIGH SPEED

$4.49

$

In Stock, only 1 left!

0

16

------------------

SPRING, LOW SPEED NEEDLE

Note: Included in Carburetor Repair Kit P/N 12310016330

$

$

Not available

17

Echo 12311824430

NEEDLE - LOW SPEED

$3.99

$

Usually ships in 2-4 days

0

18

Echo 12311315030

SPRING, THROTTLE RETURN

$1.49

$

Usually ships in 2-4 days

0

19

Echo 12311705020

SHAFT, THROTTLE

$5.49

$

Usually ships in 2-4 days

0

20

Echo 12312710630

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

21

Echo 12317204320

SWIVEL

$1.99

$

Usually ships in 2-4 days

0

22

Echo 12312703930

CLIP, THROTTLE SHAFT

$1.49

$

Usually ships in 2-4 days

0

23

Echo 12311610530

VALVE, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

24

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 13

0

25

------------------

STRAINER

Note: Included in Carburetor Repair Kit P/N 12310016330

$

$

Not available

26

------------------

DIAPHRAGM, PURGE

Note: Included in Carburetor Repair Kit P/N 12310016330 And Carburetor Diaphragm/gasket kit P/N 12310110530

$

$

Not available

27

------------------

GASKET, PURGE

Note: Included in Carburetor Repair Kit P/N 12310016330 And Carburetor Diaphragm/gasket kit P/N 12310110530

$

$

Not available

28

Echo 12312424430

COVER, PUMP

$5.49

$

In Stock, only 1 left!

0

29

Echo 12311003930

SCREW, PUMP COVER

$0.99

$

In Stock, only 1 left!

0

30

Echo 12313306320

SPRING, IDLE ADJUST

$1.99

$

Usually ships in 2-4 days

0

31

Echo 12313406320

SCREW, IDLE ADJUST

$1.99

$

In Stock, only 4 left!

0

32

------------------

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

Echo 12310016330

REPAIR KIT

$16.99

$

In Stock, only 3 left!

0

Echo 12310110530

DIAPHRAGM/GASKET KIT

$7.49

$

In Stock, only 4 left!

0
