SRM-400 AE - Echo String Trimmer Gear Case, Harness, Tools Parts Diagram

String Trimmer

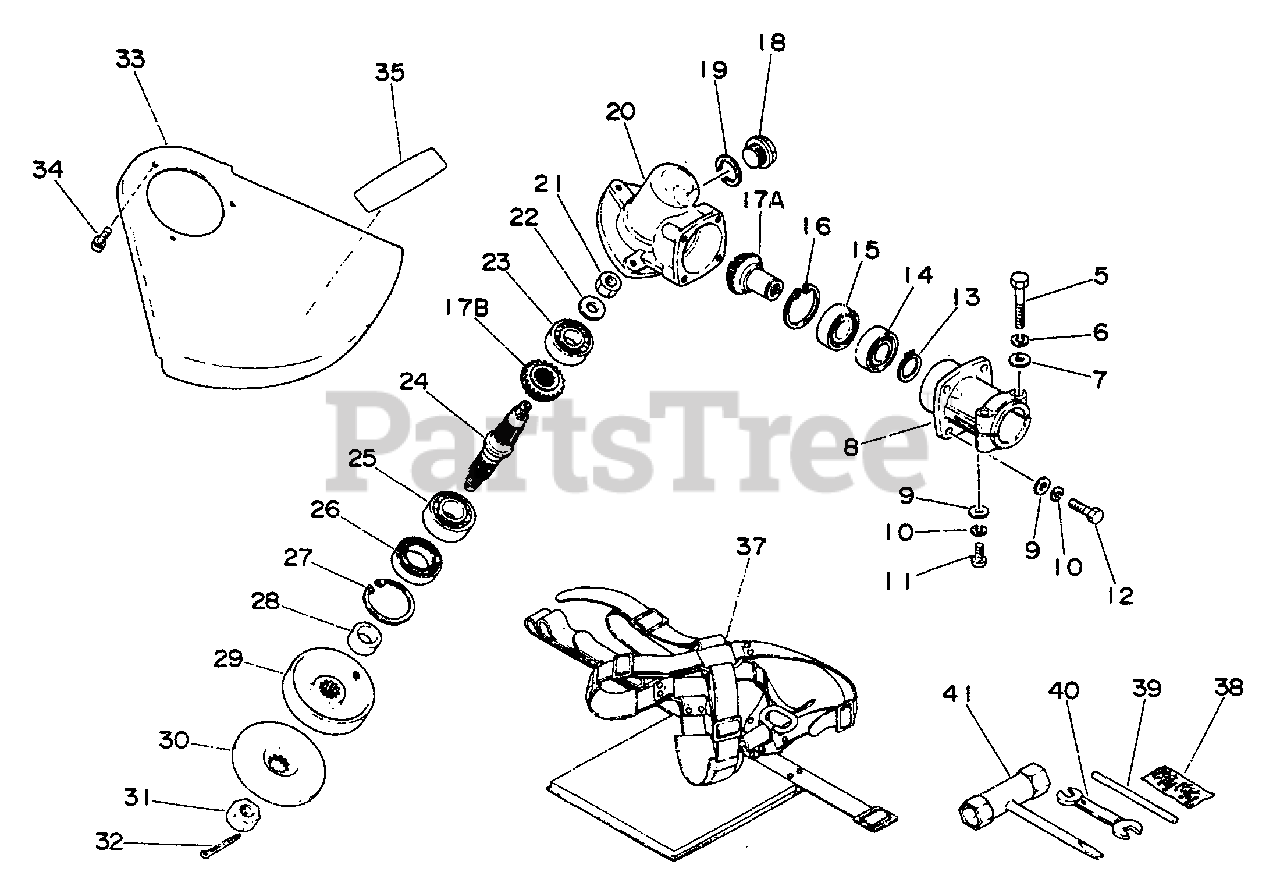

Gear Case, Harness, Tools Parts Diagram

  • Title

Echo 61040022730

GEAR CASE ASSY
(Superseded to Discontinued)

Note: Includes items 5 thru 32

$

$

Not available

5

Echo 90010006035

BOLT - 6X32

$0.99

$

Usually ships in 2-4 days

0

6

Echo 90060500006

LOCKWASHER - 6

$0.99

$

In Stock, only 2 left!

0

7

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

8

Echo 61041206230

CASE, GEAR

$43.99

$

Usually ships in 2-4 days

0

9

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

10

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

11

Echo 90022005012

SCREW - 5X12

$0.99

$

Usually ships in 2-4 days

0

12

Echo 90010005020

BOLT - 5X20

$0.99

$

In Stock, Qty 8

0

13

Echo 90070100015

RING, RETAINING - 15

$1.49

$

In Stock, only 4 left!

0

14

Echo 90080106002

BEARING, BALL - 6002D

$15.99

$

Usually ships in 2-4 days

0

15

Echo 90080006002

BEARING, BALL - 6002
(Superseded to Discontinued)

$

$

Not available

16

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 14

0

18

Echo 61051001930

FITTING, GREASE

$4.99

$

In Stock, only 1 left!

0

19

Echo 61051101230

CASE, GEAR

$0.99

$

Usually ships in 2-4 days

0

20

Echo 61041006231

CASE, GEAR
(Superseded to Discontinued)

$

$

Not available

21

$0.99

$

In Stock, only 2 left!

0

22

Echo 90060000008

WASHER - 8

$0.99

$

In Stock, Qty 7

0

23

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

24

Echo 61031022730

GEAR - SHAFT
(Superseded to Discontinued)

$

$

Not available

25

Echo 90081006202

BEARING, BALL - 6202

$9.99

$

In Stock, Qty 6

0

26

Echo 61041306230

SEAL, OIL
(Superseded to Discontinued)

$

$

Not available

27

Echo 90070200035

RING, RETAINING - 35

$1.99

$

In Stock, Qty 15

0

28

$9.49

$

Usually ships in 2-4 days

0

29

Echo 61031306230

ADAPTOR, BLADE - UPPER
(Superseded to Discontinued)

$

$

Not available

30

Echo 61031406231

ADAPTOR, BLADE - LOWER
(Superseded to Discontinued)

$

$

Not available

31

Echo 90051100010

NUT - 10 -- LEFT HAND

$1.49

$

In Stock, Qty 6

0

32

Echo 90030020022

PIN, SPLIT - 2X22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 20+

0

33

Echo 69901006230

SHIELD, DEBRIS
(Superseded to Discontinued)

$

$

Not available

34

Echo 90024105014

SCREW - 5X14

$0.99

$

In Stock, only 2 left!

0

35

Echo 89013824030

LABEL - ECHO
(Superseded to 89013844330)

$0.99

$

In Stock, Qty 8

0

37

Echo 30100024530

SHOULDER STRAP ASSY
(Superseded to 30100043130)

$53.99

$

In Stock, only 2 left!

0

38

Echo 89850201130

PIN, SPLIT - 2X22

$1.99

$

In Stock, only 2 left!

0

39

Echo 89751801131

LOCKING TOOL

$

$

Not available

40

Echo 89511200330

SPANNER - 8X10mm

$0.99

$

In Stock, only 3 left!

0

41

Echo 89541007930

T-WRENCH

$12.99

$

Usually ships in 2-4 days

0
