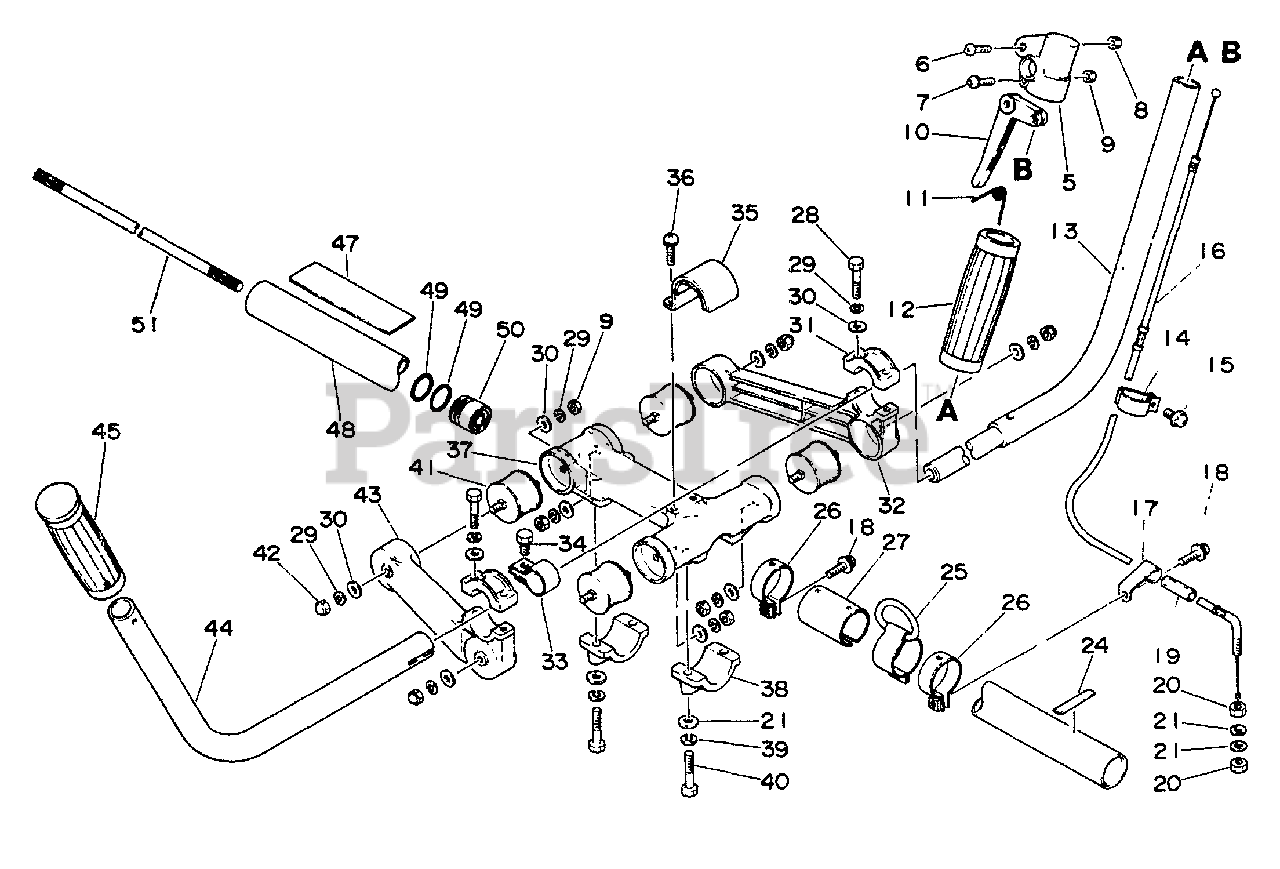

SRM-400 AE - Echo String Trimmer Driveshaft, Handles, Throttle Parts Diagram

String Trimmer

Driveshaft, Handles, Throttle Parts Diagram

  • Title

5

Echo 17802406130

BRACKET, TRIGGER

$5.49

$

Usually ships in 2-4 days

0

6

Echo 17811005330

SCREW - 5X30

$0.99

$

In Stock, Qty 6

0

7

Echo 90022005025

SCREW - 5X25

$0.99

$

In Stock, only 1 left!

0

8

Echo 43302000830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 20+

0

9

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

10

Echo 17801005330

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

11

Echo 17804305230

SPRING, TRIGGER

$0.99

$

In Stock, Qty 7

0

12

Echo 35131504230

GRIP, HANDLE
(Superseded to 35131527930)

$5.49

$

In Stock, only 1 left!

0

13

Echo 35111008130

HANDLE

$33.99

$

Usually ships in 2-4 days

0

14

Echo 17810606230

CLAMP
(Superseded to Discontinued)

$

$

Not available

15

Echo 90024205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

16

Echo 17800209131

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

17

Echo 17811106230

CLIP

$2.49

$

Usually ships in 2-4 days

0

19

Echo 17801605330

TUBE

$1.49

$

Usually ships in 2-4 days

0

20

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 3 left!

0

21

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

24

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 9

0

Echo 30120006230

HANGER KIT

Note: Includes items 18, 25 thru 17

$23.99

$

Usually ships in 2-4 days

0

18

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

25

Echo 30121006230

HOOK
(Superseded to 30120006230)

$23.99

$

Usually ships in 2-4 days

0

26

Echo 30120705630

HOOK
(Superseded to Discontinued)

$

$

Not available

27

Echo 30122406230

COLLAR
(Superseded to Discontinued)

$

$

Not available

Echo 35200004230

V.L. UNIT
(Superseded to Discontinued)

$

$

Not available

28

Echo 90010005025

BOLT - 5X25

$2.99

$

Usually ships in 2-4 days

0

29

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

30

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

31

Echo 35201505330

RETAINER

$6.49

$

In Stock, only 2 left!

0

32

Echo 35201405330

ARM, RETAINER - RIGHT
(Superseded to Discontinued)

$

$

Not available

33

Echo 35164208130

CLAMP
(Superseded to Discontinued)

$

$

Not available

34

Echo 90010006012

SCREW - 6X12

$0.99

$

Usually ships in 2-4 days

0

35

Echo 35209005330

PLATE
(Superseded to Discontinued)

$

$

Not available

36

Echo 90024105014

SCREW - 5X14

$0.99

$

In Stock, only 2 left!

0

37

Echo 35201005330

Holder, d.s. housing
(Superseded to Discontinued)

$

$

Not available

38

Echo 35201805330

HOLDER
(Superseded to Discontinued)

$

$

Not available

39

Echo 90060500006

LOCKWASHER - 6

$0.99

$

In Stock, only 2 left!

0

40

Echo 90010006030

BOLT - 6X30
(Superseded to Discontinued)

$

$

Not available

41

Echo 35201905330

CUSHION
(Superseded to Discontinued)

$

$

Not available

42

Echo 30032303130

NUT - 5 -- CAP
(Superseded to 21041901110)

$0.99

$

In Stock, Qty 10

0

43

Echo 35201305330

ARM, HANDLE - LEFT
(Superseded to Discontinued)

$

$

Not available

44

Echo 35161008130

HANDLE
(Superseded to Discontinued)

$

$

Not available

45

Echo 35131102330

GRIP, HANDLE - LEFT

$6.49

$

In Stock, only 3 left!

0

47

Echo 89016020330

LABEL - CAUTION
(Superseded to 89016024230)

$3.99

$

Usually ships in 2-4 days

0

48

Echo 61020604231

MAIN PIPE ASSY
(Superseded to Discontinued)

Note: Includes items 49 and 50

$

$

Not available

49

Echo 61011204230

O-RING

$2.99

$

Usually ships in 2-4 days

0

50

Echo 61010504230

STOPPER
(Superseded to Discontinued)

$

$

Not available

51

Echo 61001106230

DRIVESHAFT - SOLID

$51.99

$

Usually ships in 2-4 days

0
