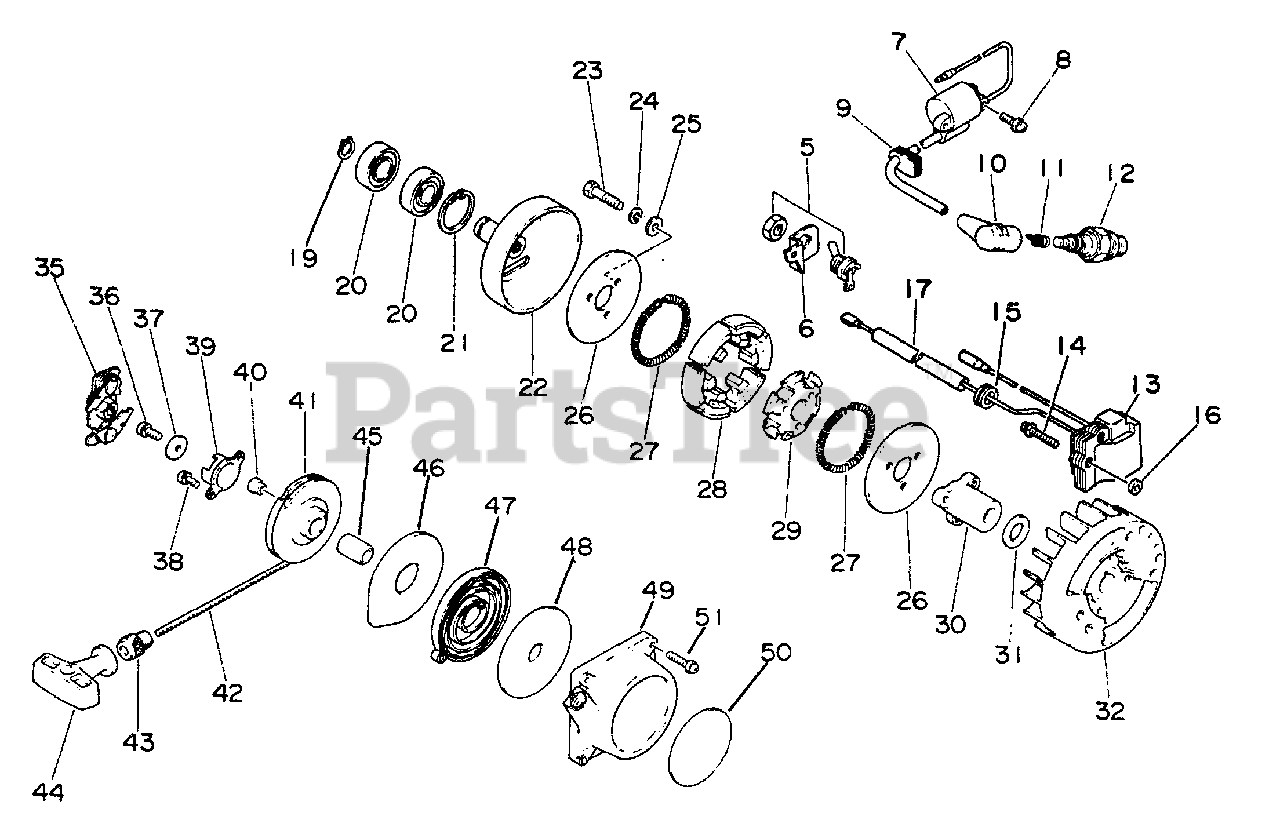

SRM-400 AE - Echo String Trimmer Clutch, Ignition, Starter Parts Diagram

String Trimmer

Clutch, Ignition, Starter Parts Diagram

  • Title

5

Echo 16340006520

IGNITION SWITCH KIT
(Superseded to Discontinued)

$

$

Not available

6

Echo 16381006720

BRACKET, SWITCH

$1.49

$

Usually ships in 2-4 days

0

7

Echo 15662621430

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

8

Echo 90024204014

SCREW - 4X14

$0.99

$

In Stock, Qty 15

0

9

Echo 15011009130

BUSHING

$0.99

$

Usually ships in 2-4 days

0

10

Echo 15901203433

CAP, SPARK PLUG

$6.99

$

In Stock, Qty 8

0

11

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 18

0

12

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.49

$

In Stock, Qty 20+

0

13

Echo 15660122730

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

14

Echo 90024204022

SCREW - 4X22

$0.99

$

In Stock, Qty 8

0

15

Echo 15011409130

GROMMET

$0.99

$

Usually ships in 2-4 days

0

16

Echo 15011709130

SPACER

$1.49

$

In Stock, only 1 left!

0

17

Echo 15661124830

TUBE
(Superseded to Discontinued)

$

$

Not available

19

Echo 90070100015

RING, RETAINING - 15

$1.49

$

In Stock, only 4 left!

0

20

Echo 90081906202

BEARING, BALL - 6203

$15.99

$

Usually ships in 2-4 days

0

21

Echo 90070200035

RING, RETAINING - 35

$1.99

$

In Stock, Qty 15

0

22

Echo 17500521430

DRUM, CLUTCH
(Superseded to 17500521431)

$

$

Not available

23

Echo 90010005025

BOLT - 5X25

$2.99

$

Usually ships in 2-4 days

0

24

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

25

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

26

Echo 17501921430

PLATE, CLUTCH

$5.49

$

Usually ships in 2-4 days

0

Echo 17500021430

CLUTCH ASSY
(Superseded to 17500021431)

$197.99

$

Usually ships in 2-4 days

0

27

Echo 17501803330

SPRING, CLUTCH

$2.49

$

Usually ships in 2-4 days

0

28

Echo 17500904230

SHOE, CLUTCH
(Superseded to 17500904231)

$23.99

$

In Stock, Qty 5

0

29

Echo 17501621430

HUB, CLUTCH
(Superseded to Discontinued)

$

$

Not available

30

Echo 17505621430

ADAPTOR
(Superseded to Discontinued)

$

$

Not available

31

Echo 10013221430

WASHER
(Superseded to Discontinued)

$

$

Not available

32

Echo 15680021430

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

35

Echo 17730506720

STARTER PAWL ASSY
(Superseded to 17730540530)

$

$

Not available

Echo 17720006721

STARTER ASSY
(Superseded to 17720006722)

$

$

Not available

36

Echo 90024105010

SCREW - 5X10

$0.99

$

In Stock, only 4 left!

0

37

Echo 17721402830

WASHER - 5

$0.99

$

In Stock, Qty 5

0

38

Echo 90024104008

SCREW - 4X8

$0.99

$

In Stock, Qty 11

0

39

Echo 17724304130

CATCHER, PAWL

$10.99

$

Usually ships in 2-4 days

0

40

Echo 17724603930

RETAINER, ROPE

$0.99

$

In Stock, only 2 left!

0

41

Echo 17721504130

REEL, ROPE

$21.99

$

Usually ships in 2-4 days

0

42

Echo 17722603930

ROPE, STARTER - 3.5X850

Note: RePower BULK OPTION: 99944445000

$5.99

$

In Stock, Qty 7

0

43

Echo 17722705330

GUIDE, ROPE
(Superseded to Discontinued)

$

$

Not available

44

Echo 17722811130

GRIP, STARTER

$5.99

$

Usually ships in 2-4 days

0

45

Echo 17721612330

COLLAR

$1.99

$

In Stock, Qty 20+

0

46

Echo 17724206721

PLATE, STARTER
(Superseded to Discontinued)

$

$

Not available

47

Echo 17722003930

SPRING, REWIND

$18.99

$

In Stock, only 3 left!

0

48

Echo 17722106720

PLATE, STARTER

$2.99

$

Usually ships in 2-4 days

0

49

Echo 17720906721

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

50

Echo 89001211132

LABEL - ECHO
(Superseded to 89001211133)

$6.49

$

In Stock, only 4 left!

0

51

Echo 90024204020

SCREW - 4X20

$0.99

$

In Stock, Qty 20+

0
