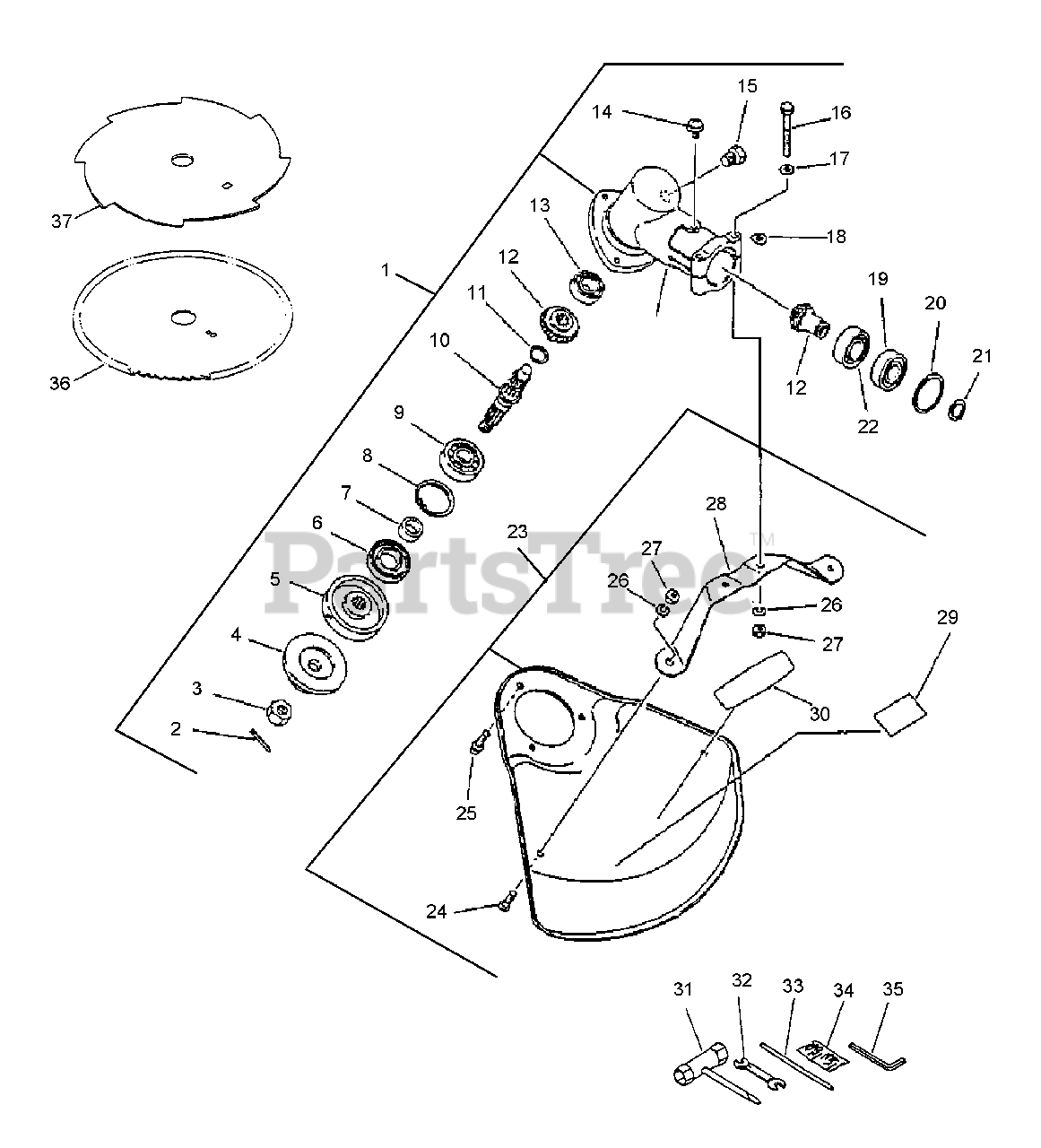

SRM-3800 - Echo String Trimmer (Type 1E) Gear Housing Asy, Blades, Shield, Tools Parts Diagram

String Trimmer (Type 1E)

Gear Housing Asy, Blades, Shield, Tools Parts Diagram

  • Title

1

Echo 61040024533

GEAR CASE ASSY
(Superseded to 61040024534)

Note: INCLUDES ITEMS 2 - 21

$309.99

$

Usually ships in 2-4 days

0

2

Echo 90030020022

PIN, SPLIT - 2X22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 20+

0

3

Echo 90051100010

NUT - 10 -- LEFT HAND

$1.49

$

Usually ships in 2-4 days

0

4

Echo C535000150

ADAPTOR, BLADE - LOWER

$9.49

$

In Stock, only 2 left!

0

5

Echo 61031307130

ADAPTOR, BLADE - UPPER
(Superseded to 61031307132)

$17.99

$

In Stock, Qty 5

0

6

Echo 61041307130

SEAL, OIL

$5.99

$

In Stock, Qty 11

0

7

Echo 61031507130

SPACER

$3.99

$

In Stock, Qty 5

0

8

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 15

0

9

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

10

Echo 61031041030

GEAR - SHAFT

$91.99

$

In Stock, only 1 left!

0

11

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 10

0

12

Echo 61030040430

GEAR SET - BEVEL

$117.99

$

Usually ships in 2-4 days

0

13

Echo 90080036000

BEARING, BALL - 6000

$11.99

$

Usually ships in 2-4 days

0

14

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

15

Echo 90010008008

BOLT - 8X8

$0.99

$

In Stock, Qty 11

0

16

Echo 90010005040

BOLT - 5X40

$0.99

$

In Stock, Qty 6

0

17

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

18

Echo 61023904130

SHIM

$0.99

$

In Stock, Qty 10

0

19

Echo 90080796001

BEARING, BALL - 6001
(Superseded to 9405106001)

$6.49

$

In Stock, Qty 14

0

20

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 15

0

21

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

22

Echo 90080036001

BEARING, BALL - 6001C3

$9.49

$

In Stock, Qty 6

0

23

Echo 69900023532

DEBRIS SHIELD KIT

Note: INCLUDES ITEMS 24 - 29

$31.99

$

In Stock, only 1 left!

0

24

Echo 90022005008

SCREW - 5X8

$0.99

$

In Stock, Qty 12

0

25

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

26

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

27

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

28

Echo 69901523532

BRACKET, SHIELD

$7.49

$

Usually ships in 2-4 days

0

29

Echo 89016841031

LABEL - DANGER

$2.49

$

Usually ships in 2-4 days

0

30

Echo 89011848830

LABEL - ECHO
(Superseded to X502000320)

$0.99

$

In Stock, Qty 8

0

31

Echo X602000020

T-WRENCH - 17X19mm

$3.49

$

In Stock, Qty 20+

0

32

Echo 89511200330

SPANNER - 8X10mm

$0.99

$

In Stock, only 3 left!

0

33

Echo 89751801131

LOCKING TOOL

$

$

Not available

34

Echo 89850201130

PIN, SPLIT - 2X22

$1.99

$

In Stock, only 2 left!

0

35

Echo A605000100

HEX KEY - 4mm

$

$

Currently unavailable

36

Echo 69500121431

BLADE, 25mm ID - 80 TOOTH -- 10" (25cm)

$25.99

$

In Stock, only 1 left!

0

37

Echo 69600121431

BLADE - 8 TOOTH

$18.99

$

In Stock, only 3 left!

0
