SRM-3800 - Echo String Trimmer (Type 1E) Engine, Fan Housing, Cover Parts Diagram

String Trimmer (Type 1E)

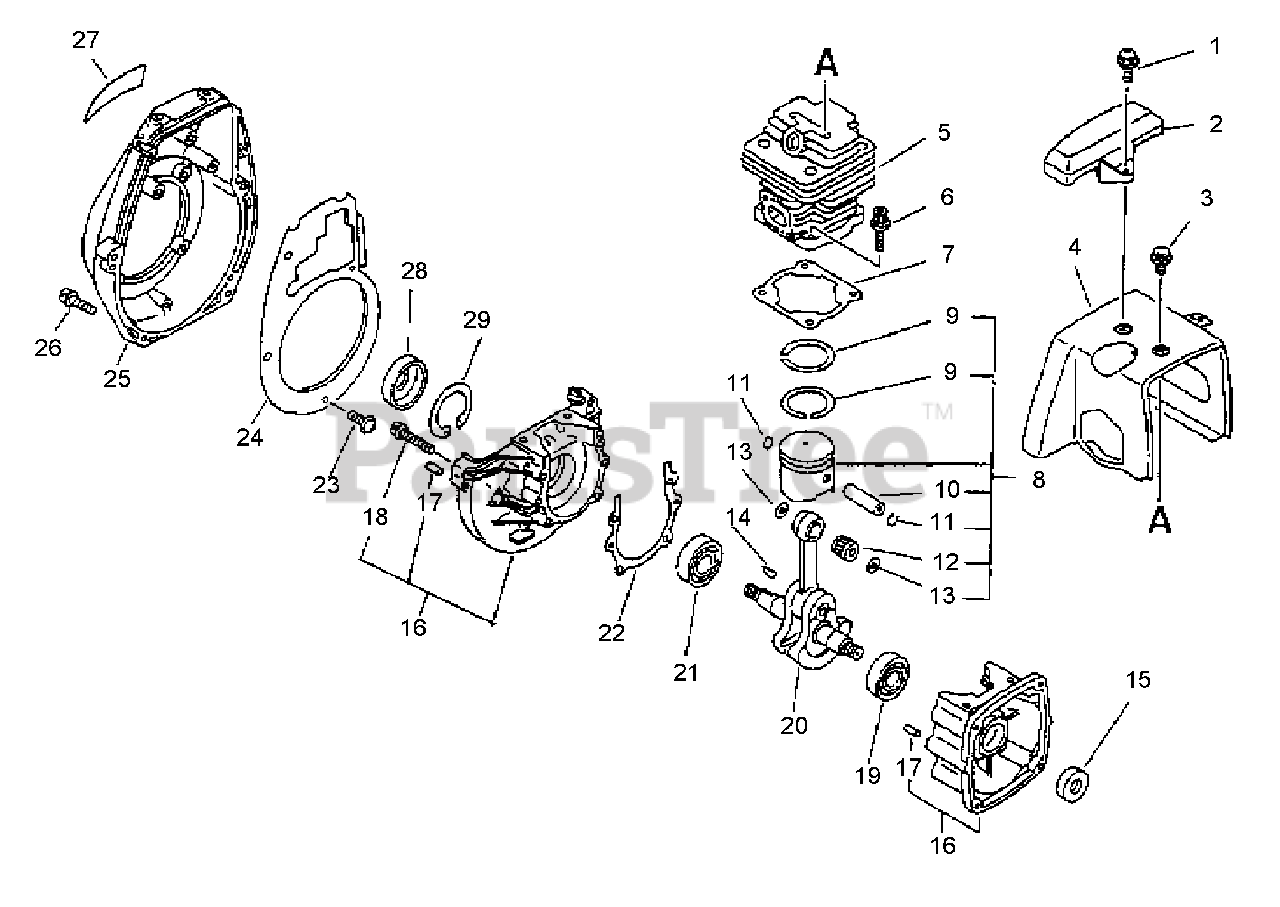

Engine, Fan Housing, Cover Parts Diagram

  • Title

1

Echo 90023805014

SCREW - 5X14

$0.99

$

In Stock, Qty 13

0

2

Echo 15990543130

GUARD - TOP

$11.99

$

Usually ships in 2-4 days

0

3

Echo 90023805010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

4

Echo 10151447530

COVER, ENGINE - GRAY
(Superseded to 10157647530)

$25.99

$

Usually ships in 2-4 days

0

5

Echo 10101143130

CYLINDER

$215.99

$

Usually ships in 2-4 days

0

6

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

7

Echo 10101042231

GASKET, CYLINDER

Note: USE GASKET KIT P/N 88900042231

$1.99

$

Usually ships in 2-4 days

0

8

Echo 10000043130

PISTON KIT
(Superseded to 10000043131)

Note: INCLUDES ITEMS 9 - 13

$

$

Not available

9

Echo 10001142230

RING, PISTON

$9.99

$

Usually ships in 2-4 days

0

10

Echo 10001300410

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

11

Echo 10001500120

RING, RETAINING - 8

$0.99

$

In Stock, Qty 10

0

12

Echo 10001212331

BEARING, NEEDLE

$10.99

$

In Stock, Qty 7

0

13

Echo 10001417330

SPACER, PISTON
(Superseded to V307000050)

$4.99

$

In Stock, only 3 left!

0

14

Echo 10014212330

KEY

$1.99

$

In Stock, Qty 16

0

15

Echo 10021227930

SEAL, OIL - 12

$5.49

$

Usually ships in 2-4 days

0

16

Echo 10020042230

CRANKCASE KIT

Note: Includes ITEMS 17-18

$212.99

$

Usually ships in 2-4 days

0

17

Echo 10021502830

PIN - LOCATING

$0.99

$

Usually ships in 2-4 days

0

18

Echo 90016205030

SCREW - 5X30

$0.99

$

In Stock, only 3 left!

0

19

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 11

0

20

Echo 10010043130

CRANKSHAFT ASSY

$221.99

$

Usually ships in 2-4 days

0

21

Echo 90081036202

BEARING, BALL - 6202

$9.99

$

In Stock, Qty 8

0

22

------------------

GASKET, CRANKCASE

Note: USE GASKET KIT P/N 88900042231

$

$

Not available

23

Echo 90023804010

SCREW - 4X10

$0.99

$

In Stock, Qty 19

0

24

Echo 10153442230

SHIELD, FAN
(Superseded to 10153442231)

$10.99

$

Usually ships in 2-4 days

0

25

Echo 10151147530

CASE, FAN

$64.99

$

Usually ships in 2-4 days

0

26

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

27

Echo 89013543130

LABEL - MODEL
(Superseded to Discontinued)

$

$

Not available

28

Echo 10021302830

SEAL, OIL

$6.49

$

In Stock, Qty 8

0

29

Echo 90070200035

RING, RETAINING - 35

$1.99

$

In Stock, Qty 15

0

Echo 88900042231

GASKET KIT
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available

Echo 10101042231

GASKET, CYLINDER

Note: OPTIONAL

$1.99

$

Usually ships in 2-4 days

0

------------------

GASKET, CRANKCASE

Note: OPTIONAL

$

$

Not available

Echo 13001606232

GASKET, INTAKE

Note: OPTIONAL

$0.99

$

In Stock, Qty 12

0

Echo 13001642231

GASKET, INTAKE

Note: OPTIONAL

$1.49

$

In Stock, Qty 5

0

Echo 14551042231

GASKET, EXHAUST

Note: OPTIONAL

$6.99

$

Usually ships in 2-4 days

0

Echo 14586643131

GASKET, EXHAUST

Note: OPTIONAL

$2.49

$

Usually ships in 2-4 days

0
