SRM-3800 - Echo String Trimmer (Type 1) Carburetor S/N: Type 1 -- 040447 - 999999 Parts Diagram

String Trimmer (Type 1)

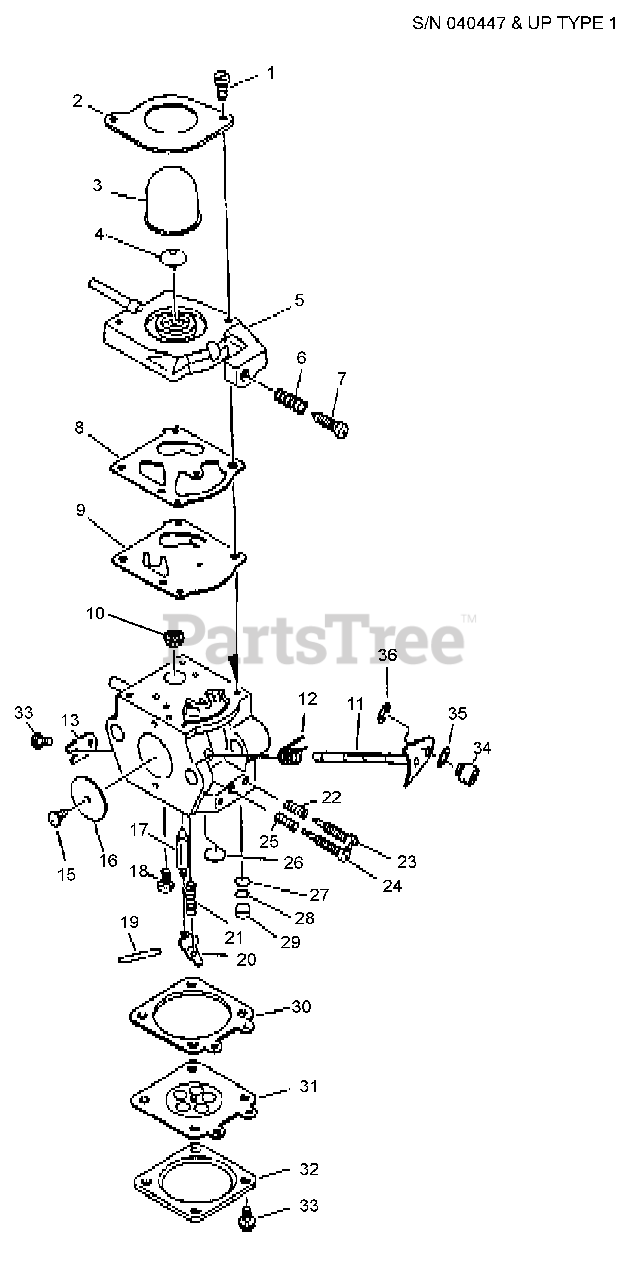

Carburetor S/N: Type 1 -- 040447 - 999999 Parts Diagram

  • Title

Echo 12300051430

CARBURETOR WT-297

Note: INCLUDES THE FOLLOWING ITEMS

$90.99

$

Usually ships in 2-4 days

0

1

------------------

SCREW

Note: USE REBUILD KIT P/N 12310009560

$

$

Not available

2

Echo 12314209560

RETAINER, PURGE BULB

$6.99

$

Usually ships in 2-4 days

0

3

Echo 12318109560

BULB, PURGE
(Superseded to A263000020)

$4.99

$

In Stock, Qty 20+

0

4

Echo 12317135630

VALVE, CHECK

$3.99

$

In Stock, only 2 left!

0

5

Echo 12312451430

COVER, PUMP
(Superseded to 12312451431)

$13.99

$

Usually ships in 2-4 days

0

6

Echo 12313304260

SPRING, IDLE ADJUST

$6.49

$

In Stock, Qty 16

0

7

Echo 12313404260

SCREW, IDLE ADJUST

$1.99

$

In Stock, Qty 11

0

8

------------------

GASKET, PUMP

Note: USE REBUILD KIT P/N 12310009560 AND GASKET/DIAPHRAGM KIT P/N 12310151430

$

$

Not available

9

------------------

DIAPHRAGM, PUMP

Note: USE REBUILD KIT P/N 12310009560 AND GASKET/DIAPHRAGM KIT P/N 12310151430

$

$

Not available

10

------------------

STRAINER

Note: USE REBUILD KIT P/N 12310009560

$

$

Not available

11

Echo 12311705020

SHAFT, THROTTLE

$5.49

$

Usually ships in 2-4 days

0

12

Echo 12311315030

SPRING, THROTTLE RETURN

$1.49

$

Usually ships in 2-4 days

0

13

Echo 12312703930

CLIP, THROTTLE SHAFT

$1.49

$

Usually ships in 2-4 days

0

15

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 13

0

16

Echo 12311610530

VALVE, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

17

------------------

VALVE, INLET NEEDLE

Note: USE REBUILD KIT P/N 12310009560

$

$

Not available

18

------------------

SCREW, METERING LEVER PIN

Note: USE REBUILD KIT P/N 12310009560

$

$

Not available

19

------------------

PIN, METERING LEVER

Note: USE REBUILD KIT P/N 12310009560

$

$

Not available

20

------------------

LEVER, METERING

Note: USE REBUILD KIT P/N 12310009560

$

$

Not available

21

------------------

SPRING, METERING LEVER

Note: USE REBUILD KIT P/N 12310009560

$

$

Not available

22

------------------

SPRING

Note: USE REBUILD KIT P/N 12310009560

$

$

Not available

23

Echo 12312051430

NEEDLE - HIGH SPEED

$4.49

$

Usually ships in 2-4 days

0

24

Echo 12311837330

NEEDLE - LOW SPEED

$5.49

$

Usually ships in 2-4 days

0

25

------------------

SPRING

Note: USE REBUILD KIT P/N 12310009560

$

$

Not available

26

------------------

PLUG, WELCH

Note: USE REBUILD KIT P/N 12310009560

$

$

Not available

27

------------------

STRAINER

Note: USE REBUILD KIT P/N 12310009560

$

$

Not available

28

Echo 12316910630

RING, RETAINING

$1.49

$

In Stock, Qty 5

0

29

------------------

PLUG, WELCH

Note: USE REBUILD KIT P/N 12310009560

$

$

Not available

30

------------------

GASKET, METERING

Note: USE REBUILD KIT P/N 12310009560 AND GASKET/DIAPHRAGM KIT P/N 12310151430

$

$

Not available

31

------------------

DIAPHRAGM, METERING

Note: USE REBUILD KIT P/N 12310009560 AND GASKET/DIAPHRAGM KIT P/N 12310151430

$

$

Not available

32

Echo 12312403930

COVER, PUMP
(Superseded to Discontinued)

$

$

Not available

33

------------------

SCREW

Note: USE REBUILD KIT P/N 12310009560

$

$

Not available

34

Echo 12317226030

SWIVEL

$1.99

$

Usually ships in 2-4 days

0

35

Echo 12314926030

WASHER

$0.99

$

In Stock, only 1 left!

0

36

Echo 12317307930

RING, RETAINING

$1.49

$

In Stock, only 1 left!

0

Echo 12310009560

REPAIR KIT

$16.99

$

Usually ships in 2-4 days

0

Echo 12310151430

DIAPHRAGM/GASKET KIT

$7.49

$

Usually ships in 2-4 days

0
