SRM-3605 U - Echo Brush Cutter (SN: 20001001 - 20999999) Starter Parts Diagram

Brush Cutter

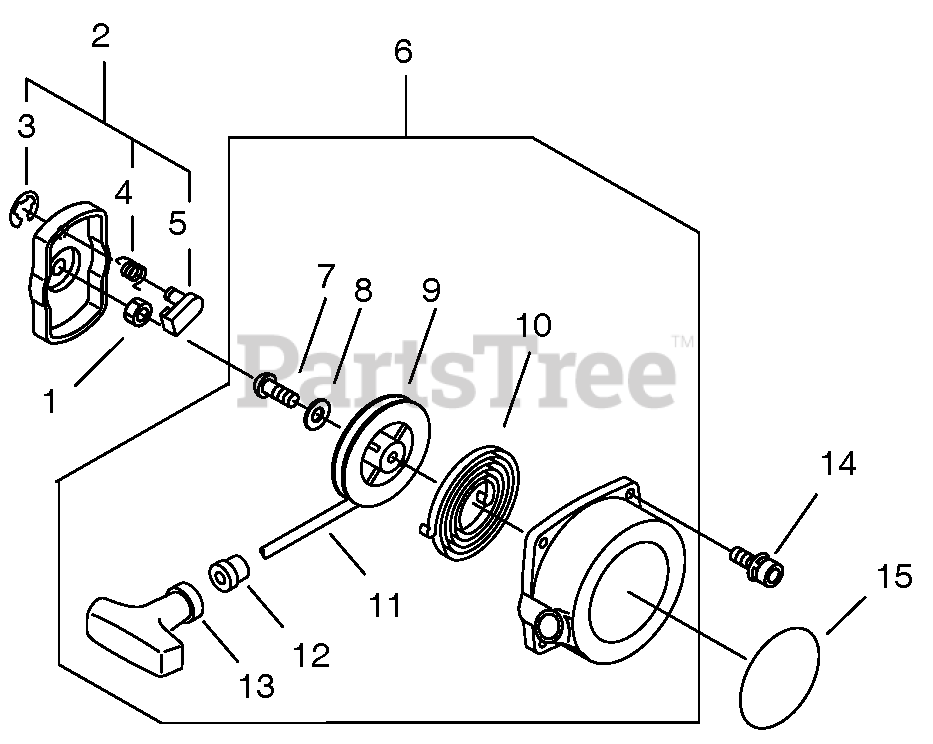

Starter Parts Diagram

  • Title

1

Echo 90050200008

NUT - 8

$0.99

$

In Stock, only 2 left!

0

2

Echo 17720241030

STARTER PAWL ASSY
(Superseded to A052000370)

$13.99

$

In Stock, only 2 left!

0

3

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

4

Echo 17723440630

SPRING, RETURN

$3.49

$

In Stock, only 2 left!

0

5

Echo 17721840630

PAWL, STARTER
(Superseded to A514000120)

$3.49

$

In Stock, Qty 6

0

6

Echo 17720055631

STARTER ASSY

$97.99

$

Usually ships in 2-4 days

0

7

Echo 17723640630

SCREW

$3.99

$

In Stock, Qty 14

0

8

Echo 17721441030

WASHER

$1.49

$

Usually ships in 2-4 days

0

9

Echo 17721543130

REEL, ROPE

$15.99

$

In Stock, only 1 left!

0

10

Echo 17722040630

SPRING, REWIND

$14.99

$

In Stock, Qty 11

0

11

Echo 17722601110

ROPE, STARTER - 4X880

$5.99

$

In Stock, only 1 left!

0

12

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 13

0

13

Echo 17722827030

GRIP, STARTER

$5.99

$

In Stock, Qty 20+

0

14

Echo 9111804014

SCREW - 4X14

$1.49

$

Usually ships in 2-4 days

0

15

Echo X502000450

LABEL - ECHO
(Superseded to X502000780)

$3.99

$

Usually ships in 2-4 days

0
