SRM-3605 U - Echo Brush Cutter (SN: 20001001 - 20999999) Fuel System Parts Diagram

Brush Cutter

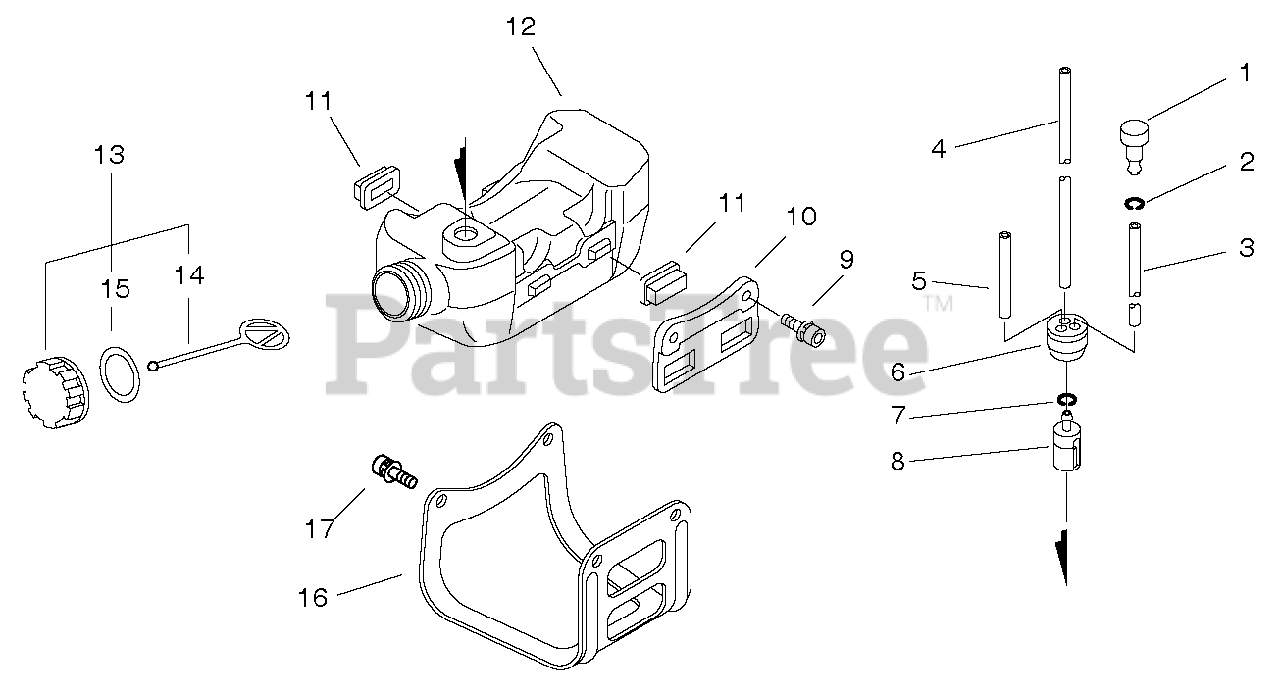

Fuel System Parts Diagram

  • Title

1

Echo 13130056431

VENT, FUEL TANK

$7.49

$

In Stock, Qty 10

0

2

Echo 13011100530

CLIP - 5.5

$0.99

$

In Stock, Qty 20+

0

3

Echo V471001210

PIPE - 3X5X90 -- BLACK
(Superseded to V471001211)

Note: RePower BULK OPTION: 90014

$0.99

$

In Stock, Qty 20+

0

4

Echo V471001190

PIPE - 3X5X180 -- BLACK
(Superseded to V471001191)

$1.49

$

In Stock, Qty 20+

0

5

Echo 13201056330

PIPE - 3X6X90 -- CLEAR

Note: RePower BULK OPTION: 90017

$2.99

$

In Stock, Qty 20+

0

6

Echo 13211546730

GROMMET

$1.99

$

In Stock, Qty 20+

0

7

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

8

Echo 13120514930

FILTER, FUEL
(Superseded to 13120514931)

$8.99

$

In Stock, Qty 20+

0

9

Echo 9111805020

SCREW - 5X20

$1.49

$

Usually ships in 2-4 days

0

10

Echo 13191055430

BRACKET, FUEL TANK

$16.99

$

Usually ships in 2-4 days

0

11

Echo 13192055430

CUSHION, FUEL TANK

$3.49

$

In Stock, only 3 left!

0

12

Echo 13101064931

TANK, FUEL

$35.99

$

Usually ships in 2-4 days

0

13

Echo 13100455530

CAP ASSY - ORANGE
(Superseded to P100006640)

$6.49

$

In Stock, only 3 left!

0

14

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0

15

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

16

Echo 30511055630

GUARD, FUEL TANK

$31.99

$

Usually ships in 2-4 days

0

17

Echo 9111805012

SCREW - 5X12

$1.49

$

In Stock, only 1 left!

0
