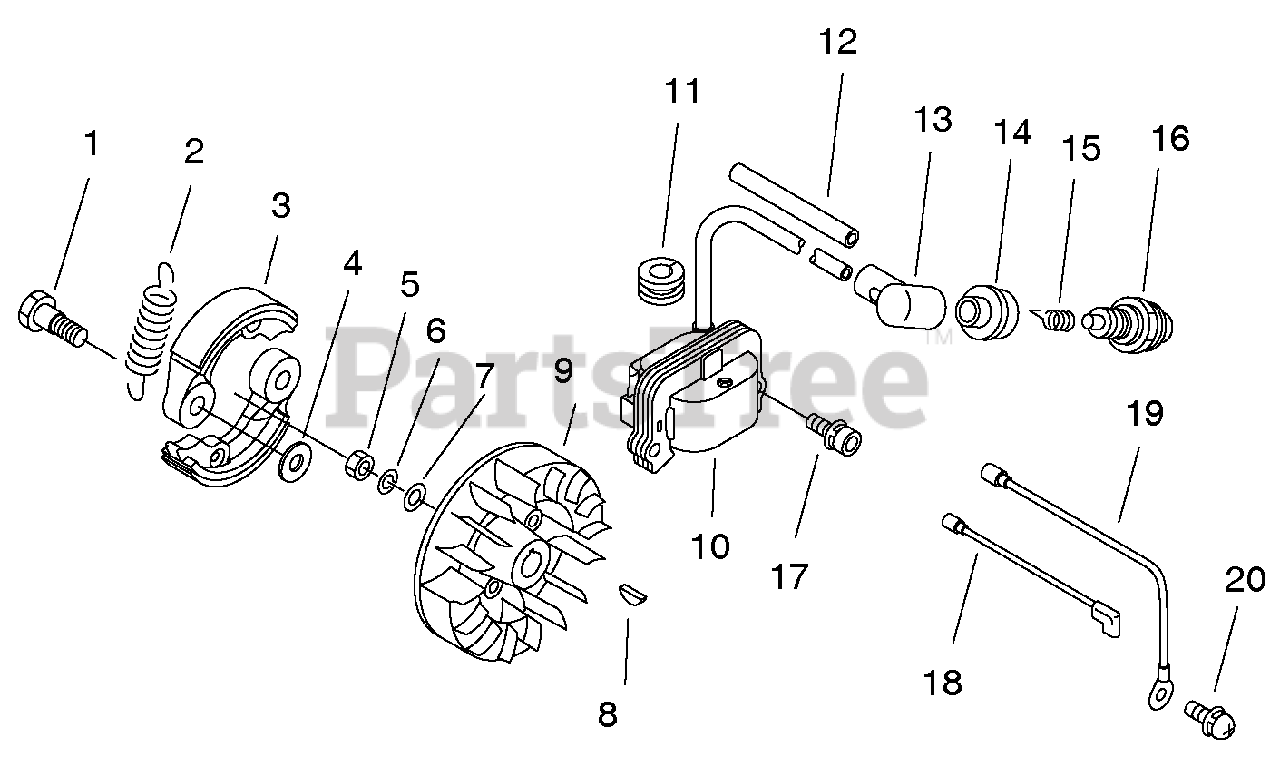

SRM-3605 U - Echo Brush Cutter (SN: 20001001 - 20999999) Flywheel, Ignition Parts Diagram

Brush Cutter

Flywheel, Ignition Parts Diagram

  • Title

1

Echo 17504646430

BOLT, CLUTCH

$6.49

$

Usually ships in 2-4 days

0

2

Echo 17501849932

SPRING, CLUTCH
(Superseded to 17501849933)

$3.49

$

Usually ships in 2-4 days

0

3

Echo A553000000

SHOE, CLUTCH

$24.99

$

Usually ships in 2-4 days

0

4

Echo 17504805530

WASHER - 6

$1.49

$

In Stock, Qty 7

0

5

Echo 90050200008

NUT - 8

$0.99

$

In Stock, only 2 left!

0

6

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

7

Echo 90060000008

WASHER - 8

$0.99

$

In Stock, Qty 7

0

8

Echo 10014212330

KEY

$1.99

$

In Stock, Qty 14

0

9

Echo 15280155430

FLYWHEEL

$132.99

$

Usually ships in 2-4 days

0

10

Echo 15262655430

COIL, IGNITION

$143.99

$

Usually ships in 2-4 days

0

11

Echo 15011244330

GROMMET
(Superseded to Discontinued)

$

$

Not available

12

Echo 15061114530

TUBE

$1.99

$

Usually ships in 2-4 days

0

13

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

14

Echo 15901555230

COVER, PLUG CAP

$7.49

$

Usually ships in 2-4 days

0

15

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

16

Echo 15901010230

SPARK PLUG -- BPMR-7A

$3.99

$

In Stock, Qty 20+

0

17

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

18

Echo 16201055630

LEAD - IGNITION

$6.49

$

Usually ships in 2-4 days

0

19

Echo 16201452930

LEAD - GROUND

$4.99

$

In Stock, only 1 left!

0

20

Echo 90023805010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0
